|Article||Width||Height||Depth||No. of outlets CW||No. of outlets HW||Weight (kg)||Packaging||Item List|
|188 15 30||550 mm||550 mm||95 mm||8||5||8,5||
188 15 30
|No. of outlets CW||8|
|No. of outlets HW||5|
Frame with hatch, fitted with hinges, for installation in ceiling. Made from powder coated sheet ste...
Frame with hatch for manifold cabinet UNI recessed in wall. Do not install in rooms with a waterproo...
Frame with hatch for manifold cabinet UNI surface-mounted on a wall. Made from powder coated 1 mm sh...
LK Fire Hatch UNI is intended to be used when LK Manifold Cabinet UNI is installed in a fire-classif...
Outlet plate to LK Drainage elbow, in white or chrome. Fits in LK Drainage elbow V2. Can also be mou...

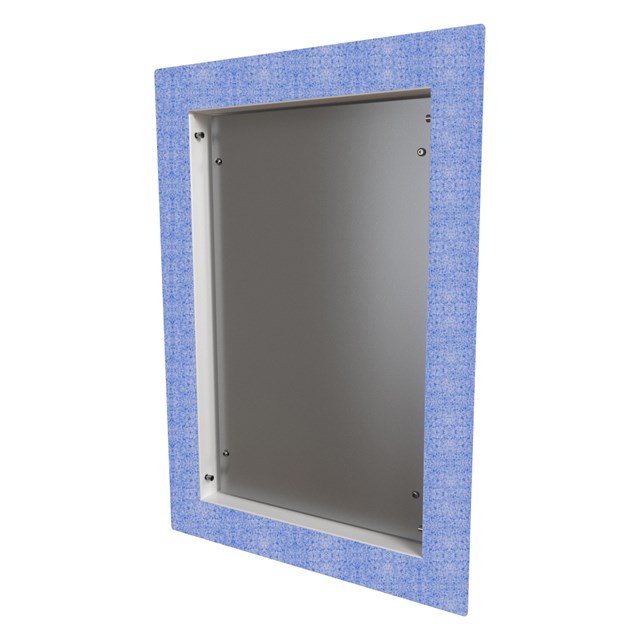

LK Wet zone hatch Preseal has a prefabricated foil flange that is 50 mm wide and is tested and appro...
LK Hatch HIDDEN for manifold cabinets GV and UNI mounted built into the wall. Frame with hatch which...
LK Prefab Cabinet 8/5 is a leak-proof prefabricated manifold cabinet for 8 cold water outlets plus 5 hot water outlets. Pre-prepared for feed pipe from the bottom of the cabinet.
Supplied with ball valves with blue handles for cold and red handles for hot water. The ball valves have ¾" male EuroCone connections. Comes complete with necessary sealing grommets for both supply and coupling pipes. 13 no. LK Press Connections AX16x½" for coupling pipes are included. Manifold for hot water is LK Manifold UNI with mounted plug as finish.
All manifolds, fittings and ball valves are made of dezincification resistant brass. A protective bag used to protect the manifold during the assembly period is enclosed.
To assemble and to accommodate the drain pipe, the cabinet must be installed on a min. height of 250 mm from the base of the cabinet to the finished floor. The drain pipe should be installed sloping downwards. When assembly outside of wall place the cabinet 250 (±25) mm above finished floor to fit with the base.
Note! LK Frame with lid UNI 550 INB, UNI 550 UTV and Base UNI 550 must be ordered separately, fits with LK Prefab Cabinet UNI Push 8/5.
For other types of customized solutions, please contact your LK representative.
|Article||Width||Height||Depth||No. of outlets CW||No. of outlets HW||Weight (kg)|
|188 15 30||550 mm||550 mm||95 mm||8||5||8,5|
