LK Frame/hatch INB

LK Frame/hatch INB

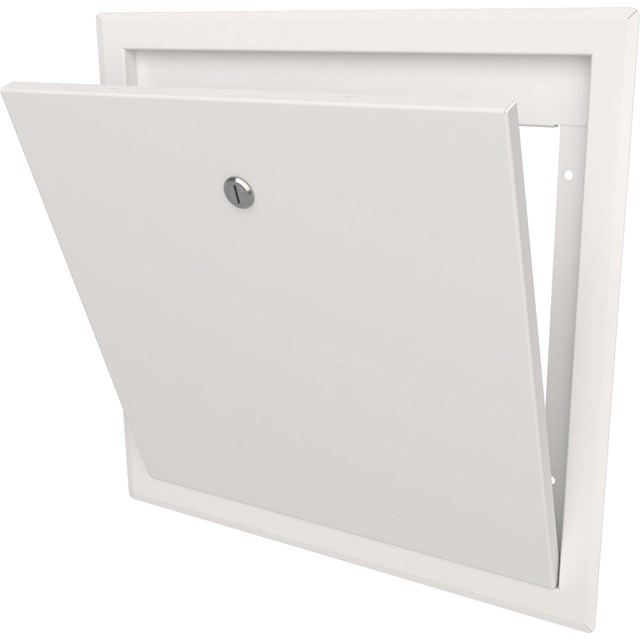

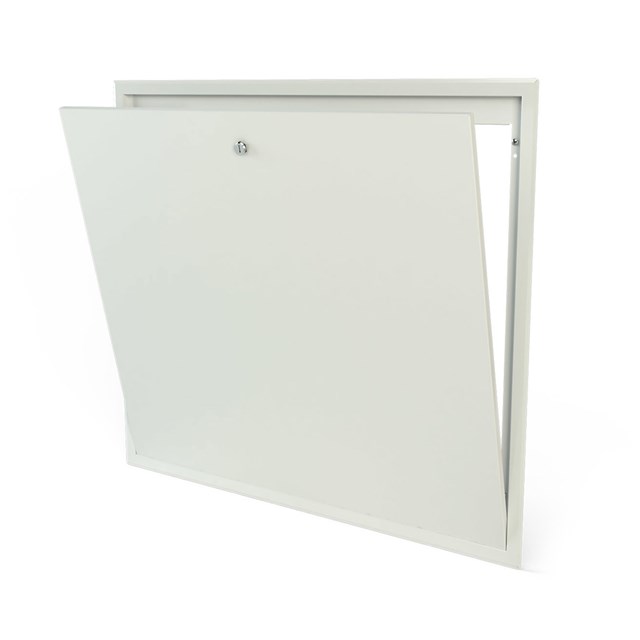

Frame with hatch for manifold cabinet UNI recessed in wall. Do not install in rooms with a waterproofing layer on the wall. Made from 1 mm powder coated sheet steel, white finish RAL 9016. The hatch is f...

Variants
Detailed Information
Documentation
Related Products

Variants

Filter system solutions:

Article	Exterior dims. (W x H x D)	Intended for	Weight (kg)	System solutions
1882348	390 x 390 x 26 mm
188 13 08	390 x 580 x 26 mm	UNI 350 LK Installation cabinet RTB-XL	2.50	Floor Heating, Universal
188 13 11	490 x 580 x 26 mm	UNI 450	3.00	Universal
188 13 05	590 x 580 x 26 mm	UNI 550	3.60	Universal
188 13 03	740 x 580 x 26 mm	UNI 700	4.40	Universal
243 46 80	590 x 740 x 26 mm	LK Cabinet UFH 550, LK Shunt cabinet M60n XL, UNI Water meter cabinet 8/6, UNI Water meter cabinet 8/6 CS	4.54	Floor Heating, Universal, Ground Heating
243 46 79	840 x 740 x 26 mm	LK Cabinet UFH 800	6.32	Floor Heating, Universal, Ground Heating
243 53 63	1080 x 740 x 26 mm	LK Shunt Cabinet VS2 1050, LK Manifold Cabinet UFH 1050, LK Manifold Cabinet Qmax	8.12	Floor Heating, Ground Heating
243 53 67	480 x 530 x 26 mm	LK Shunt cabinet M60n	3.02	Floor Heating

Exterior dims. (W x H x D)	390 x 390 x 26 mm
Intended for
Weight (kg)
System solutions
Packaging
Environment
Item list

Exterior dims. (W x H x D)	390 x 580 x 26 mm
Intended for	UNI 350 LK Installation cabinet RTB-XL
Weight (kg)	2.50
System solutions	Floor Heating, Universal
Packaging
Environment
Item list

Exterior dims. (W x H x D)	490 x 580 x 26 mm
Intended for	UNI 450
Weight (kg)	3.00
System solutions	Universal
Packaging
Environment
Item list

Exterior dims. (W x H x D)	590 x 580 x 26 mm
Intended for	UNI 550
Weight (kg)	3.60
System solutions	Universal
Packaging
Environment
Item list

Exterior dims. (W x H x D)	740 x 580 x 26 mm
Intended for	UNI 700
Weight (kg)	4.40
System solutions	Universal
Packaging
Environment
Item list

Exterior dims. (W x H x D)	590 x 740 x 26 mm
Intended for	LK Cabinet UFH 550, LK Shunt cabinet M60n XL, UNI Water meter cabinet 8/6, UNI Water meter cabinet 8/6 CS
Weight (kg)	4.54
System solutions	Floor Heating, Universal, Ground Heating
Packaging
Environment
Item list

Exterior dims. (W x H x D)	840 x 740 x 26 mm
Intended for	LK Cabinet UFH 800
Weight (kg)	6.32
System solutions	Floor Heating, Universal, Ground Heating
Packaging
Environment
Item list

Exterior dims. (W x H x D)	1080 x 740 x 26 mm
Intended for	LK Shunt Cabinet VS2 1050, LK Manifold Cabinet UFH 1050, LK Manifold Cabinet Qmax
Weight (kg)	8.12
System solutions	Floor Heating, Ground Heating
Packaging
Environment
Item list

Exterior dims. (W x H x D)	480 x 530 x 26 mm
Intended for	LK Shunt cabinet M60n
Weight (kg)	3.02
System solutions	Floor Heating
Packaging
Environment
Item list

Detailed Information

Description

Frame with hatch for manifold cabinet UNI recessed in wall. Do not install in rooms with a waterproofing layer on the wall.

Made from 1 mm powder coated sheet steel, white finish RAL 9016.

The hatch is fitted with a screwdriver lock as standard. A key lock is also available as an accessory.

Documentation

Product sheet

LK Frame/hatch INB

EPD

LK Cabinet With LK Frame/Hatch & Base - EPD
