LK Fitting Cabinet UNI 350x350

LK Fitting Cabinet UNI 350x350

LK Fitting Cabinet is a compact coupling cabinet with space for five connections without group shut-off, and four with. The cabinet can also be used to connect an outdoor faucet to hot and cold water. The pipe ...

Variants
Detailed Information
Documentation
Related Products

Variants

Article	Width	Height	Depth	Connection	Weight (kg)	Packaging	Environment	Item List
188 23 40	350mm	350	95mm	Max. 4 pcs. with a group shut-off valve/Max. 5 pcs. without	6.5

Width	350mm
Height	350
Depth	95mm
Connection	Max. 4 pcs. with a group shut-off valve/Max. 5 pcs. without
Weight (kg)	6.5
Packaging
Environment
Item list

Detailed Information

Description

LK Fitting Cabinet is a compact coupling cabinet with space for five connections without group shut-off, and four with. The cabinet can also be used to connect an outdoor faucet to hot and cold water. The pipe for the outdoor faucet is passed through the back of the cabinet, where knock-out holes are provided with enclosed rubber bushings.
The cabinet is manufactured from powder coated steel plate, RAL 9016 white.

The cabinet has a watertight base with a 50 mm-high front edge.

The cabinet is supplemented with the necessary pipe inlets, corresponding to the number of sockets used. NOTE: Separate article:
• LK Pipe Inlet 25 conduit, Article no. 187 44 83 is used for bushing in the cabinet with conduit dimension 25.
• LK Pipe Inlet UNI, Article no. 187 44 84 (cut to correct diameter) is used for bushing in the cabinet with conduit dimension 12-34.

Note! LK Frame/hatch UNI INB or UTV 350x350 must be ordered separately.

Items Included

4 pcs. brackets
2 pcs. splash protection, blue plastic
1 pc. LK Drainage Elbow
Assembly instructions
4 pcs. wood screws with gasket for attachment of manifold cabinet to building structure
12 pcs. black rubber plugs
2 pcs. pipe inlets for outdoor faucet NOTE, not for coupling pipes.
1 pc. protective bag

Documentation

Product sheet

LK Fitting Cabinet UNI 350x350

EPD

LK Cabinet With LK Frame/Hatch & Base - EPD

Assembly instruction

EN.29.C.29_LK Manifold Cabinet UNI, LK Prefab Cabinet UNI

Dimensional drawing


Dimensional drawing

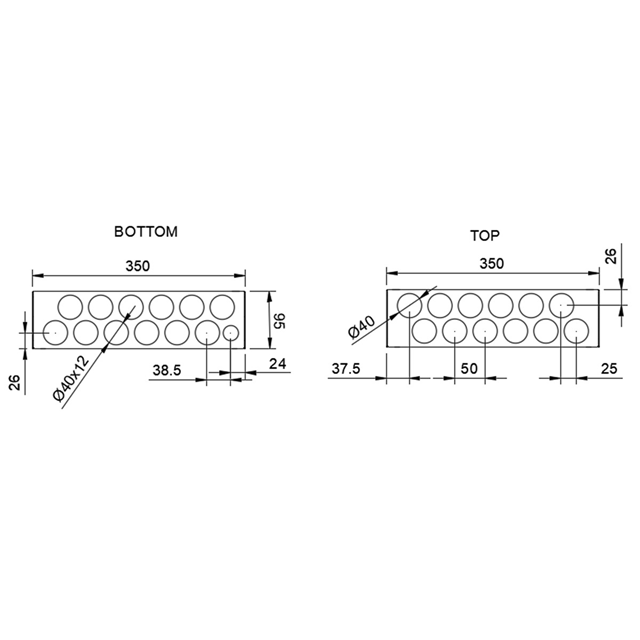

Måttskiss kopplingsskåp 350x350

×

Article 188 23 40

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590049081	Case	360	400	100	3.9
42	7331590049319	Pallet	1200	800	890	188

Article 188 23 40

Quantity	1
EAN	7331590049081
Packaging	Case
Depth	360
Width	400
Height	100
Weight (kg)	3.9

Quantity	42
EAN	7331590049319
Packaging	Pallet
Depth	1200
Width	800
Height	890
Weight (kg)	188

Related Products

Accessories

LK Frame/hatch INB

Frame with hatch for manifold cabinet UNI recessed in wall. Do not install in rooms with a waterproo...

LK Frame/hatch UTV

LK Frame/hatch UFH UTV is designed for use with LK Manifold Cabinet UFH and LK Shunt Cabinet UFH whe...

LK Outlet Plate V2

Outlet plate to LK Drainage elbow, in white or chrome. Fits in LK Drainage elbow V2. Can also be mou...

LK Hatch HIDDEN

LK Hatch HIDDEN for manifold cabinets GV and UNI mounted built into the wall. Frame with hatch which...

LK Pipe grommet 8-20 LP

Pipe lead-through for 8–20 mm pipes, for LK Manifold Cabinet with 40 mm hole.

LK Pipe grommet 25 LP

Used for 25 mm pipe and 16 mm PEX-in-Pipe with 25 mm conduit in LK Distribution Cabinet with 40 mm h...

LK Pipe grommet 20-25 LP

Pipe grommet for 20-25 mm pipe and 16 RiR with 25 mm conduit pipe in LK Installation cabinets with 4...

LK Pipe grommet 32 PiP LP

LK Pipe grommet 32 LP

LK Conduit Umbrella is used to prevent potential leakage from entering between the media pipe and th...

LK Frame/Hatch Slim PRESEAL UNI

LK Frame/Hatch Slim PRESEAL UNI features a 50 mm-wide flange onto which the prefabricated 50 mm memb...

LK Wet zone hatch PRESEAL UNI

LK Wet zone hatch PRESEAL UNI has a 60 mm-wide flange onto which the prefabricated 50 mm-wide foil f...

Spare Parts

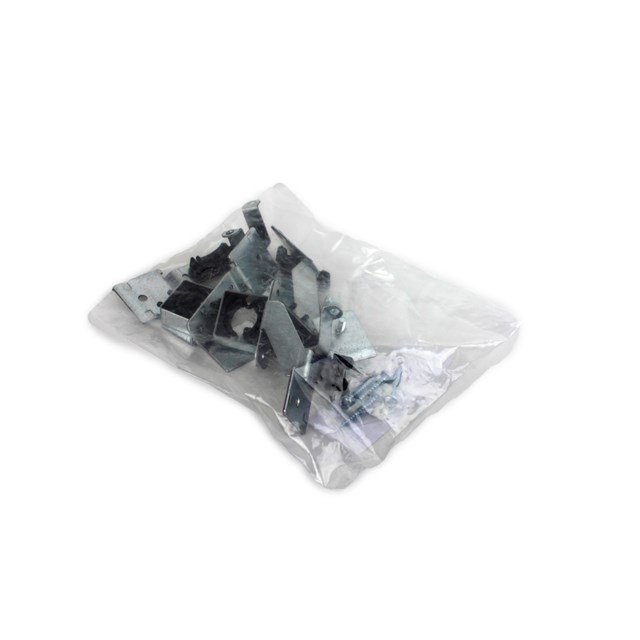

LK Accessory bag Fitting Cabinet
