LK Shunt Cabinet M60n

LK Shunt Cabinet M60n

Variants
Detailed Information
Documentation
Related Products

Variants

Article	Designation	Intended for	Width	Height	Depth	Weight (kg)	Packaging	Environment	Item List
243 53 70	LK Shunt Cabinet M60n	LK Minishunt M60n	450 mm	500	95 mm	4.59
243 53 69	LK Shunt Cabinet M60n XL	LK Minishunt M60n with connected LK Mini Manifold	550 mm	710	145 mm	9.10

Designation	LK Shunt Cabinet M60n
Intended for	LK Minishunt M60n
Width	450 mm
Height	500
Depth	95 mm
Weight (kg)	4.59
Packaging
Environment
Item list

Designation	LK Shunt Cabinet M60n XL
Intended for	LK Minishunt M60n with connected LK Mini Manifold
Width	550 mm
Height	710
Depth	145 mm
Weight (kg)	9.10
Packaging
Environment
Item list

Detailed Information

Description

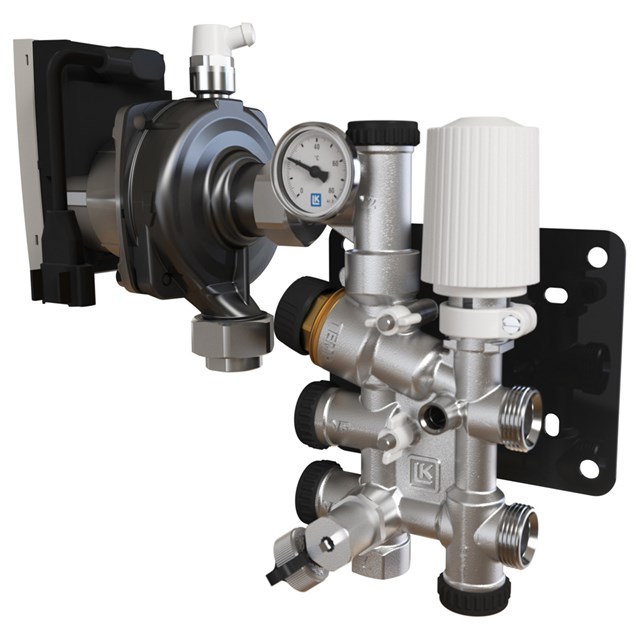

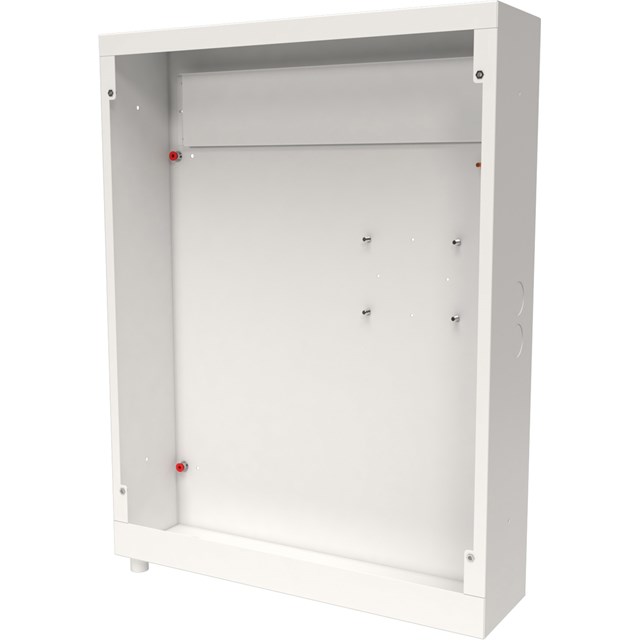

The LK Shunt Cabinet M60n is designed to be used when you wish to hide the LK Minishunt M60n. The cabinet is intended for right mounting, i.e. the primary shunt connection is from the right side via the cabinet base.

The cabinet has a sealed base with rubber pipe grommets. The base of the cabinet is fitted with a drainage opening which allows any water leakage to drain to a location that can be inspected. The cabinet is made from 1 mm powder coated steel plate, RAL 9016.

The cabinet is designed to be fitted built into a wall or externally on a wall. When built into a wall, the wall thickness must be at least 95 mm.

The cabinet should be supplemented with a frame/hatch. There are two types of frame/hatch depending on whether the cabinet is built into or installed externally on an inner wall.

For external mounting, the cabinet should also be supplemented with a base to hide the pipes between the cabinet and floor.
