LK Outlet Plate V2

LK Outlet Plate V2

Outlet plate to LK Drainage elbow, in white or chrome. Fits in LK Drainage elbow V2. Can also be mounted directly into a LK Sleeve pipe Ø25. LK Outlet Plate V2 white is included in LK Drainage elbow V2 compl...

Variants
Detailed Information
Documentation
Related Products

Variants

Article	For conduit dim.	Exterior dims. (W x H x D)	Color	Packaging	Item List
188 26 14	25 mm	47 x 51 x 21 mm	Chrome
188 26 13	25 mm	47 x 51 x 21 mm	white

For conduit dim.	25 mm
Exterior dims. (W x H x D)	47 x 51 x 21 mm
Color	Chrome
Packaging
Item list

For conduit dim.	25 mm
Exterior dims. (W x H x D)	47 x 51 x 21 mm
Color	white
Packaging
Item list

Detailed Information

Description

Outlet plate to LK Drainage elbow, in white or chrome. Fits in LK Drainage elbow V2. Can also be mounted directly into a LK Sleeve pipe Ø25.

LK Outlet Plate V2 white is included in LK Drainage elbow V2 complete.

Documentation

Product sheet

LK Outlet Plate V2

Assembly instruction

LK Manifold Cabinet UNI, LK Prefab Cabinet UNI

Assembly instruction

LK Dränageböj V2

Assembly instruction

LK Drainage Elbow V2

×

Article 188 26 14

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590057161	Bag	55	55	40	0.018
200	7331590057178	Case	320	260	360	4.1

Article 188 26 14

Quantity	1
EAN	7331590057161
Packaging	Bag
Depth	55
Width	55
Height	40
Weight (kg)	0.018

Quantity	200
EAN	7331590057178
Packaging	Case
Depth	320
Width	260
Height	360
Weight (kg)	4.1

×

Article 188 26 13

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590057147	Bag	55	55	40	0.018
200	7331590057154	Case	320	260	360	4.1

Article 188 26 13

Quantity	1
EAN	7331590057147
Packaging	Bag
Depth	55
Width	55
Height	40
Weight (kg)	0.018

Quantity	200
EAN	7331590057154
Packaging	Case
Depth	320
Width	260
Height	360
Weight (kg)	4.1

Related Products

Intended for

LK Manifold Cabinet UNI

LK Manifold Cabinet UNI 350, UNI 450, UNI 550 and UNI 700 The cabinets are manufactured from powder ...

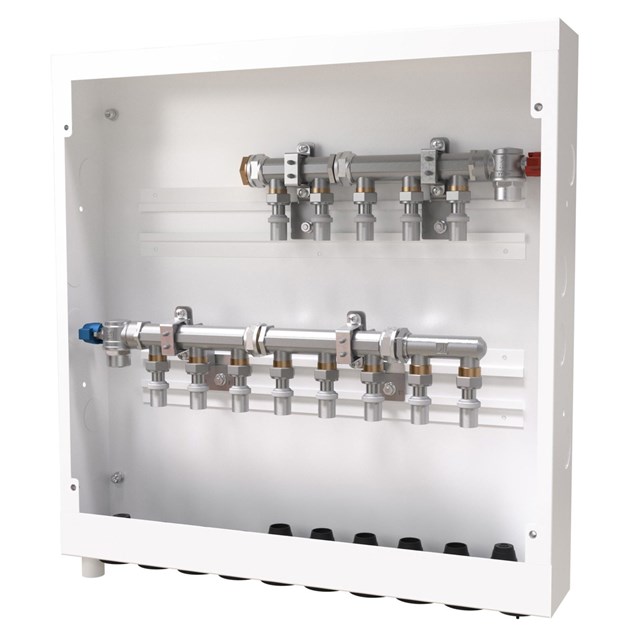

LK Prefab Cabinet UNI 8/5

LK Prefab Cabinet 8/5 is a leak-proof prefabricated manifold cabinet for 8 cold water outlets plus 5...

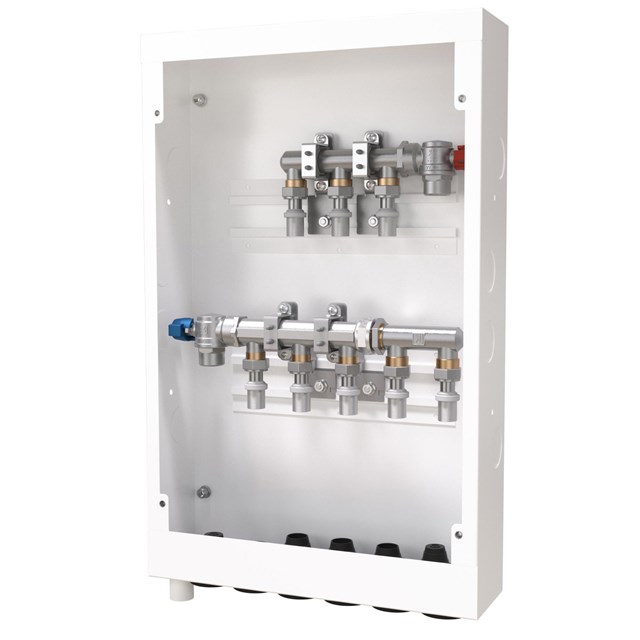

LK Prefab Cabinet UNI 5/3

LK Prefab Cabinet UNI 5/3 is a leak-proof prefabricated manifold cabinet for 5 cold water outlets pl...

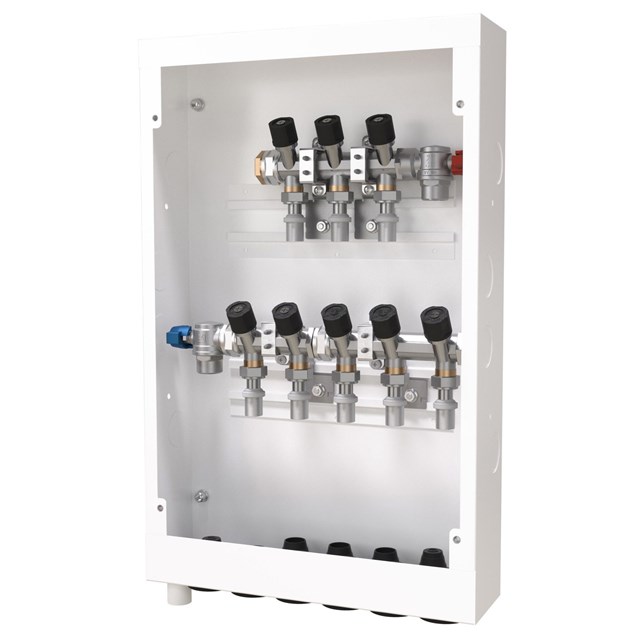

LK Prefab Cabinet UNI-Valve 5/3

LK Prefab Cabinet UNI-Valve 5/3 is a leak-proof prefabricated manifold cabinet for 5 cold water outl...

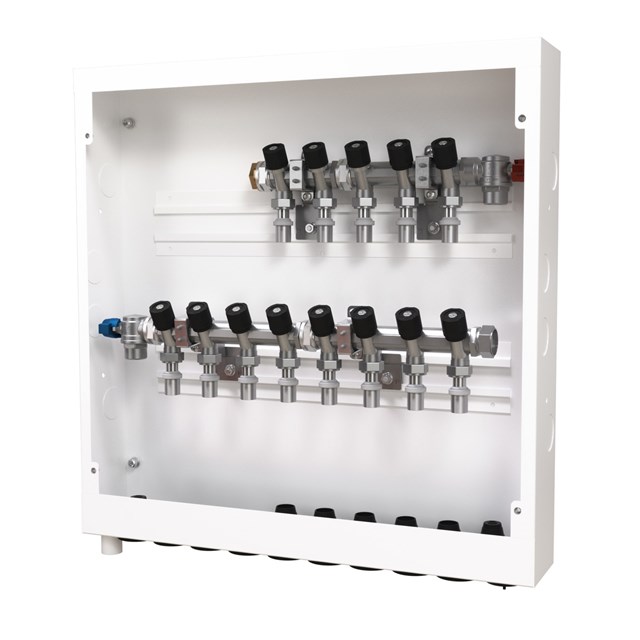

LK Prefab Cabinet UNI-Valve 8/5

LK Prefab Cabinet UNI-Valve 8/5 is a leak-proof prefabricated manifold cabinet for 8 cold water outl...

LK Water meter Cabinet UNI 8/6

LK Water Meter Cabinet UNI 8/6 is a leak-proof prefabricated manifold cabinet for 8 cold water conne...

LK Manifold Cabinet UNI 550 L & XL

The LK Manifold Cabinets UNI 550 L and XL provide more space for supply pipe insulation. The cabinet...

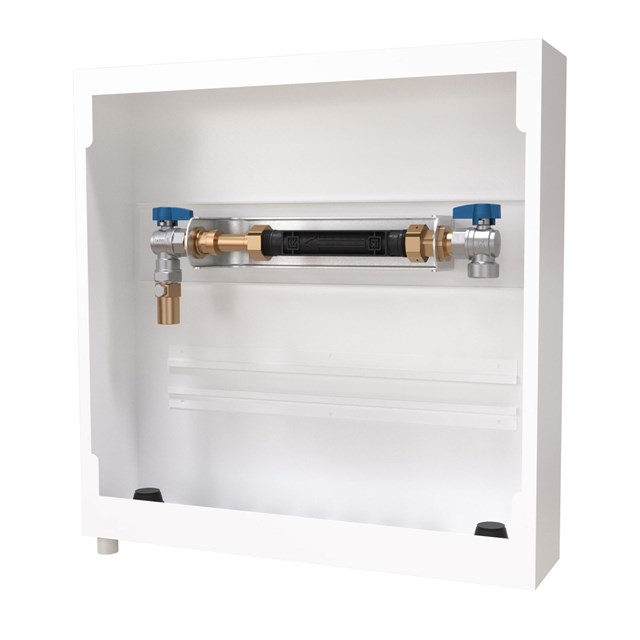

LK Water meter Cabinet UNI

LK Water Meter Cabinet UNI is a leak-proof manifold cabinet with a pre-assembled water meter bracket...

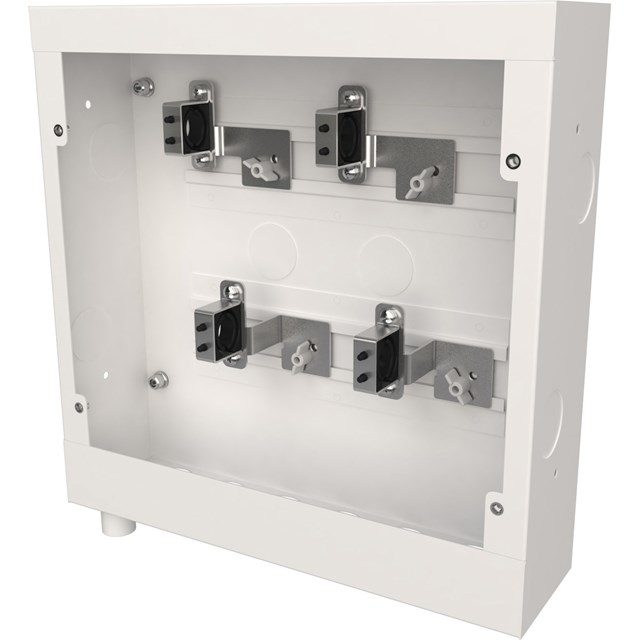

LK Fitting Cabinet UNI 350x350

LK Fitting Cabinet is a compact coupling cabinet with space for five connections without group shut-...

LK Manifold Cabinet UNI 550 CS

The LK Manifold Cabinet UNI 550 CS is equipped with holes for a centred riser, which provides more s...

LK Manifold Cabinet UNI VM

LK Manifold Cabinet VM for assembly of the LK Water Meter Console. The cabinet is equipped with two ...

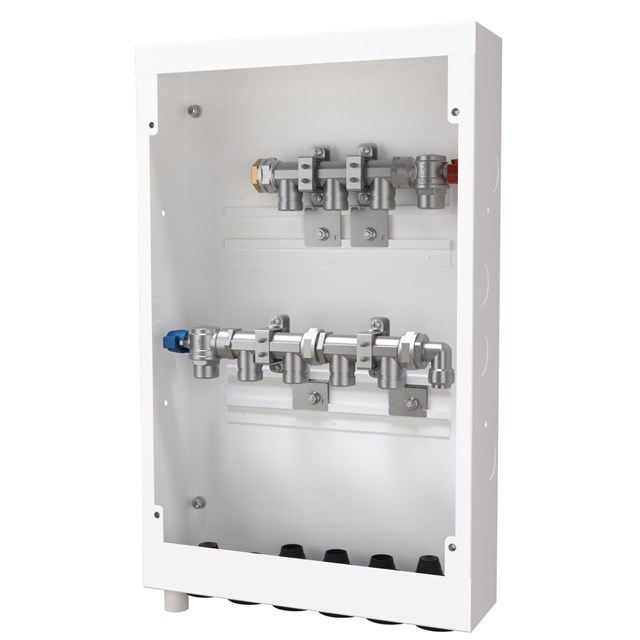

LK Prefab Cabinet UNI Push 5/3 AX

LK Prefab Cabinet UNI Push 5/3 is a leak-proof prefabricated manifold cabinet for 5 cold water outle...

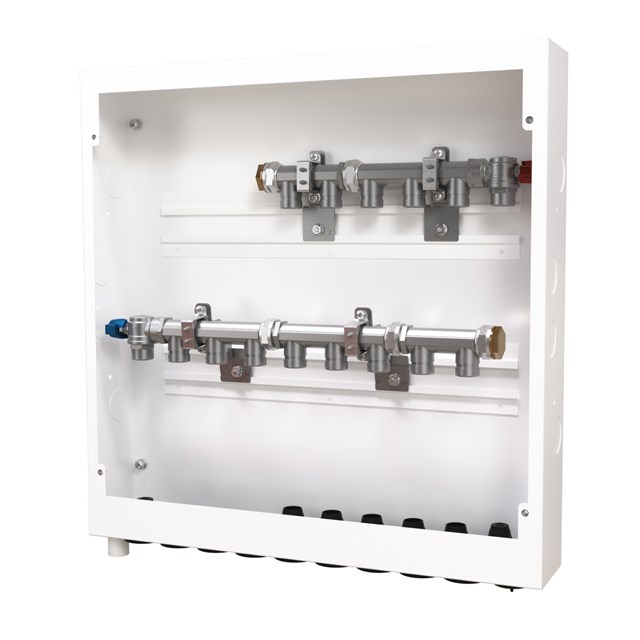

LK Prefab Cabinet UNI Push 8/5 AX
