LK Shunt Cabinet M60n

The LK Shunt Cabinet M60n is designed to be used when you wish to hide the LK Minishunt M60n. The cabinet is intended for right mounting, i.e. the primary shunt connection is from the right side via the cabinet...

LKS2435370

LK Shunt Cabinet M60n

Variants

Article Designation Intended for Width Height Depth CO₂-EQ. (Kg) Weight (kg) Packaging Item List
243 53 70 LK Shunt Cabinet M60n LK Minishunt M60n 450 mm 500 mm 95 mm 13.62 4,4
243 53 69 LK Shunt Cabinet M60n XL LK Minishunt M60n with connected LK Mini Manifold 550 mm 710 mm 145 mm 22.86 9,1

243 53 70

Designation LK Shunt Cabinet M60n
Intended for LK Minishunt M60n
Width 450 mm
Height 500 mm
Depth 95 mm
CO₂-EQ. (Kg) 13.62
Weight (kg) 4,4
Packaging
Item list

243 53 69

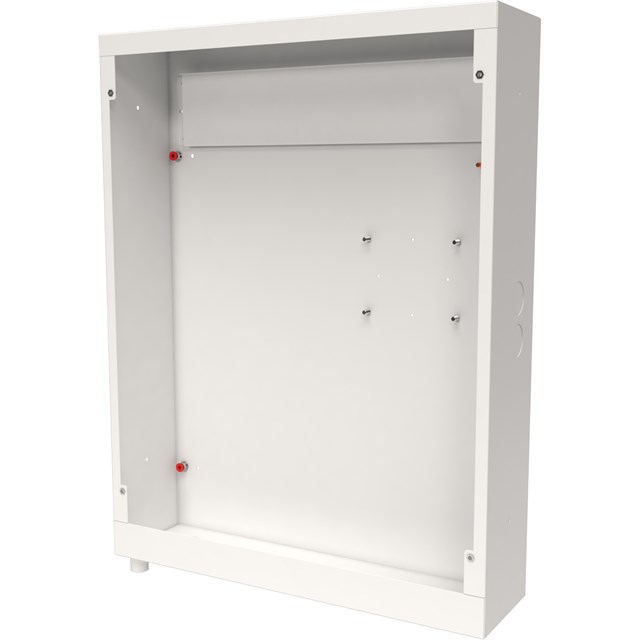

Designation LK Shunt Cabinet M60n XL
Intended for LK Minishunt M60n with connected LK Mini Manifold
Width 550 mm
Height 710 mm
Depth 145 mm
CO₂-EQ. (Kg) 22.86
Weight (kg) 9,1
Packaging
Item list

Detailed Information

Description

The LK Shunt Cabinet M60n is designed to be used when you wish to hide the LK Minishunt M60n. The cabinet is intended for right mounting, i.e. the primary shunt connection is from the right side via the cabinet base.

The cabinet has a sealed base with rubber pipe grommets. The base of the cabinet is fitted with a drainage opening which allows any water leakage to drain to a location that can be inspected. The cabinet is made from 1 mm powder coated steel plate, RAL 9016.

The cabinet is designed to be fitted built into a wall or externally on a wall. When built into a wall, the wall thickness must be at least 95 mm.

The cabinet should be supplemented with a frame/hatch. There are two types of frame/hatch depending on whether the cabinet is built into or installed externally on an inner wall.

For external mounting, the cabinet should also be supplemented with a base to hide the pipes between the cabinet and floor.
