LK Manifold Cabinet Qmax

LK Manifold Cabinet Qmax is designed for use where there is a requirement to conceal LK Manifold Qmax 2”. LK Manifold Cabinet Qmax with accompanying instructions is adapted to the industry regulations “Säker Va...

LKS2410310

LK Manifold Cabinet Qmax

Variants

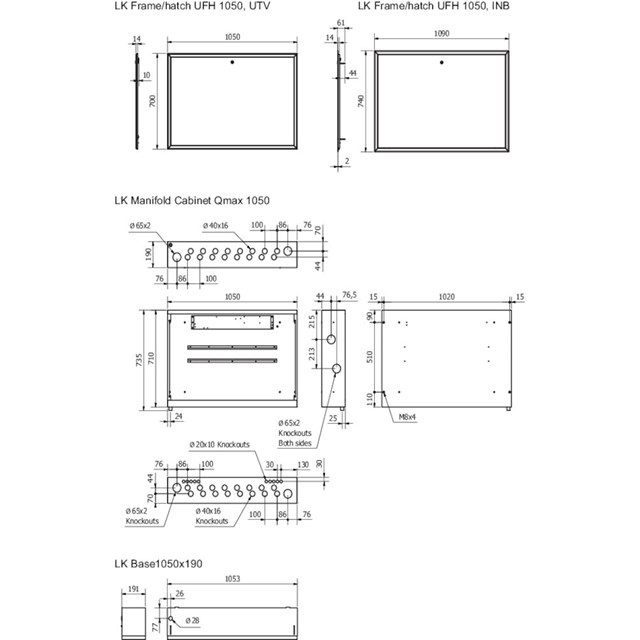

Article Width Height Depth Weight (kg) Packaging Environment Item List
241 03 10 1050 mm 710 mm 190 mm 12,5

241 03 10

Width 1050 mm
Height 710 mm
Depth 190 mm
Weight (kg) 12,5
Packaging
Packaging
Item list

Detailed Information

Description

LK Manifold Cabinet Qmax is designed for use where there is a requirement to conceal LK Manifold Qmax 2”. LK Manifold Cabinet Qmax with accompanying instructions is adapted to the industry regulations “Säker Vatteninstallation”. The cabinet has a dense base with rubber pipe grommets. The cabinet base is provided with a drainage opening which allows any water leakage to be drained to a location which can be inspected.

The cabinet is manufactured from 1 mm powder-coated sheet steel, RAL 9016. The cabinet is designed for installation built into a wall or surface-mounted on a wall. When building in the cabinet, the minimum stud thickness is 95 mm. The cabinet should be assembled according to the industry regulations “Säker Vatteninstallation”.

The cabinet must be supplemented with a frame/hatch. There are two types of frame/hatch, depending on whether the cabinet is built into or surface-mounted on an inner wall. When surface-mounted, the cabinet must also be supplemented with a base in order to conceal pipes between the cabinet and the floor.

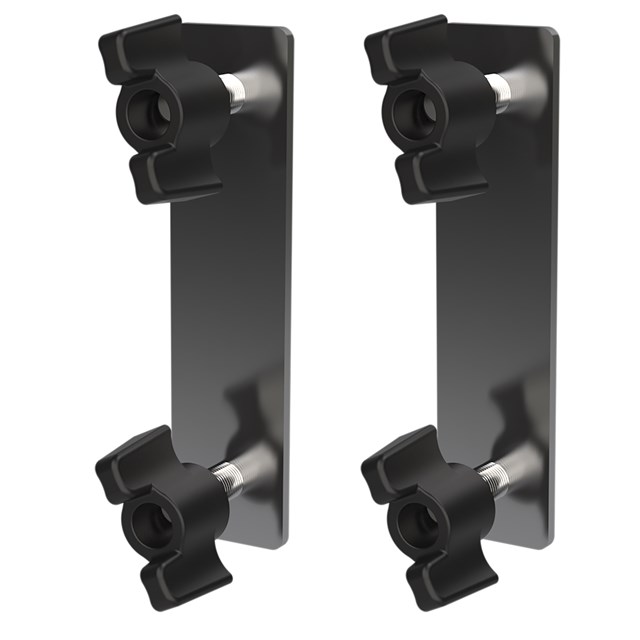

LK Manifold Cabinet Qmax is supplied with LK Bracket Qmax, pipe grommets, a bellow sleeve for drainage, a 1.5-metre conduit for drainage, drainage elbow with outlet plate, cable grommets for room control, spray guard and installation instructions. The back of the cabinet is provided with four prefitted M8 nuts which can be used for attachment to the LK Cabinet Stand when the cabinet has to be installed before a concrete base is cast.

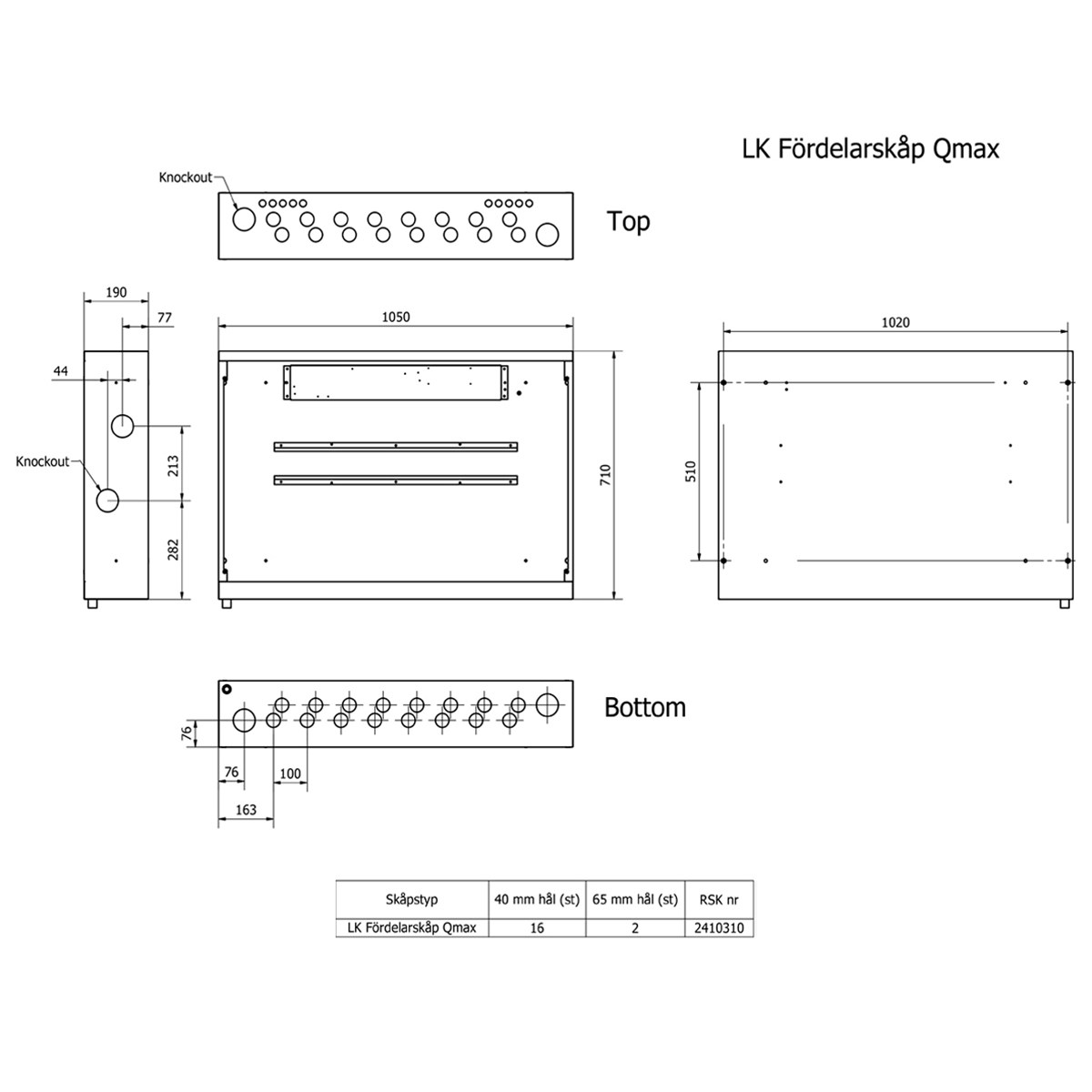

The ends of the cabinet are provided with knockout holes for any side connection of supply and return pipes. The top side of the cabinet has knockout holes for any pipe routing through the cabinet and knockout holes for any cable grommets for room control. Maximum pipe dimension for risers is 50 mm.

NOTE! In cases where a riser is pulled inside the cabinet, the maximum number of outlets may be reduced by one or more.
