LK PressPex Calibration tool F9

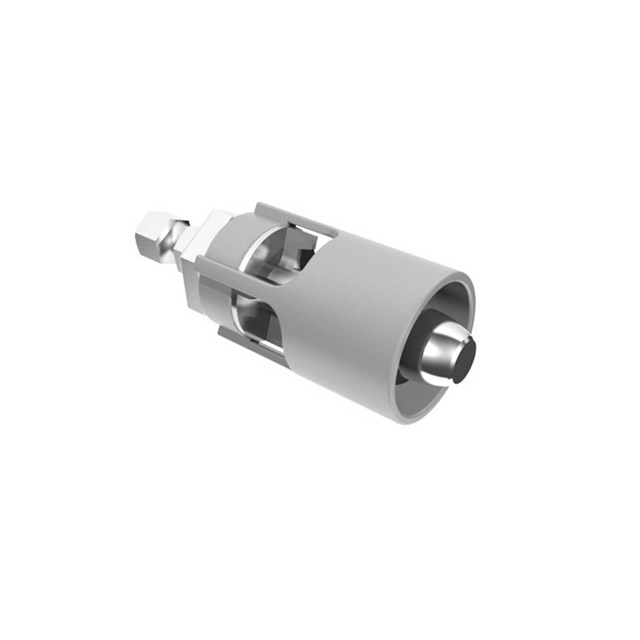

  • For dimension 16-32 the calibration tool has an exterior protective basket of plastic.

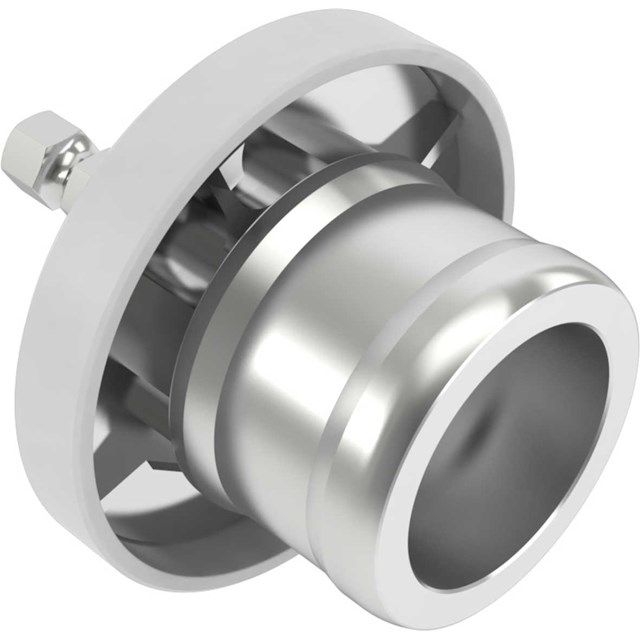

  • For dimension 40-75 the calibration tool has an integrated protective edge of plastic

The calibration tool is intended for calibration and simultaneous chamfering of pipe ends on PAL Universal pipes, but can also be advantageously used for PE-X Universal pipes as they provide a cleaner chamfered...

Read more

LKS1881527

LK PressPex Calibration tool F9

  • Variants
  • Detailed Information
  • Documentation
  • Related Products

Variants

Article For pipe dim. Packaging Item List
188 15 22 AX16
188 15 27 AX20
188 15 18 AX25
188 15 21 A32
188 23 25 A40
188 23 26 A50
188 23 27 A63
188 23 24 A75

188 15 22

For pipe dim. AX16
Packaging
Item list

188 15 27

For pipe dim. AX20
Packaging
Item list

188 15 18

For pipe dim. AX25
Packaging
Item list

188 15 21

For pipe dim. A32
Packaging
Item list

188 23 25

For pipe dim. A40
Packaging
Item list

188 23 26

For pipe dim. A50
Packaging
Item list

188 23 27

For pipe dim. A63
Packaging
Item list

188 23 24

For pipe dim. A75
Packaging
Item list

Detailed Information

Description

The calibration tool is intended for calibration and simultaneous chamfering of pipe ends on PAL Universal pipes, but can also be advantageously used for PE-X Universal pipes as they provide a cleaner chamfered surface than pipe cutters and pipe deburrs that are normally used for copper pipes. NOTE! The chamfering is necessary to ensure that the O-rings on the support sleeves of the couplings are not damaged when the pipe is pushed on!
The calibration tools are used with a hand crank or right-hand drill/screwdriver with a MAXIMUM speed of 500 rpm for short periods of MAXIMUM 5 seconds per time, the tube must not get too hot.
The handle on the hand crank can advantageously be dismantled and used as a quick coupling on power tools.

Documentation

Product sheet

LK PressPex Calibration tool F9

Related Products

Accessories

LK Grip for calibration tool

LK Grip for calibration tool

Hand grip, universal for all dimensions of LK Calibration Tool F9.

LK Case Calibration tool A40-A75

LK Case Calibration tool A40-A75

Blue plastic case for LK F9 Calibration tool A40, A50, A63 and A75.
