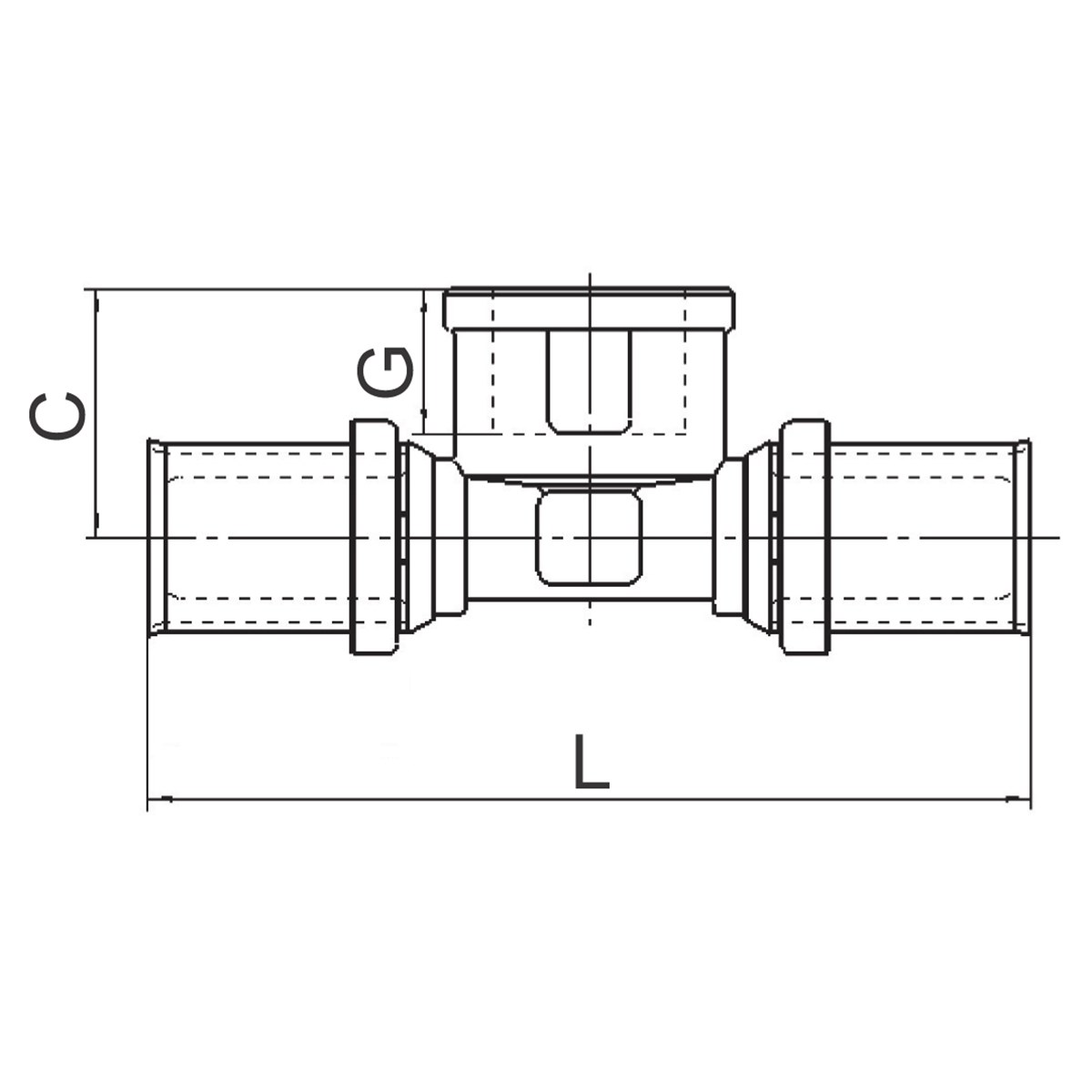

LK PressPex T-koppling inv gg avstick

LK PressPex T-Piece female

Press fitting for connection of LK PAL and LK PE-X Universal Pipe.

LK PressPex T-koppling inv gg avstick

LK PressPex T-Piece female

  • Variants
  • Detailed Information
  • Documentation

Variants

Filter system solutions:

Article Type Dim. For pipe dim. C mm G mm L mm System solutions Packaging Environment Item List
187 65 73 Grey ring AX16 x ½" 16x2,0 24 14 85 Floor Heating, Universal, PEM
187 65 74 Grey ring AX20 x ½" 20x2,5 25.5 14 85 Universal
187 65 75 Grey ring AX20 x ¾" 20x2,5 26.5 15 91 Universal
187 65 76 Grey ring AX25 x ½" 25x3,5 26.5 14 104 Universal
187 84 44 Grey ring AX25 x ¾" x AX20 25x3,5 x 20x2,5 27.5 15 109.5 Universal
187 65 77 Grey ring AX25 x ¾" 25x3,5 27.5 15 96 Universal
187 65 81 Grey ring A32 x ½" 32x2,9-3,0 31.5 14 103 Universal
187 84 45 Grey ring A32 x ¾" x AX25 32x2,9-3,0 x 25x3,5 31.5 15 111 Universal
187 65 82 Grey ring A32 x ¾" 32x2,9-3,0 31.5 15 94 Floor Heating, Universal, Ground Heating, PEM
187 65 83 Grey ring A32 x 1" 32x2,9-3,0 32.5 16 102 Floor Heating, Universal, Ground Heating, PEM
187 65 84 Grey ring A32 x 1¼" 32x2,9-3,0 36 19 111 Floor Heating, Universal, Ground Heating, PEM
187 80 16 Grey ring A40 x ¾" 40x3,5 x 50x4,0 31 15 100 Universal
187 26 28 Grey ring A40 x 1" 40x3,5 x 50x4,0 36.5 17 107 Universal
187 26 29 Grey ring A40 x 1¼" 40x3,5 x 50x4,0 38 19.5 117 Universal
187 26 30 Grey ring A50 x 1¼" 50x4,0 42 19.5 141.4 Universal
187 26 31 Grey ring A50 x 1½" 50x4,0 42 19.5 147.4 Universal
187 42 01 Grey ring A63 x 2" 63x4,5 51 23.5 163.4 Universal
188 15 41 Grey ring A75 x 1" 75x7,5 50 17 148 Universal
188 15 42 Grey ring A75 x 2" 75x7,5 56 27 177 Universal

187 65 73

Type Grey ring
Dim. AX16 x ½"
For pipe dim. 16x2,0
C mm 24
G mm 14
L mm 85
System solutions Floor Heating, Universal, PEM
Packaging
Environment
Item list

187 65 74

Type Grey ring
Dim. AX20 x ½"
For pipe dim. 20x2,5
C mm 25.5
G mm 14
L mm 85
System solutions Universal
Packaging
Environment
Item list

187 65 75

Type Grey ring
Dim. AX20 x ¾"
For pipe dim. 20x2,5
C mm 26.5
G mm 15
L mm 91
System solutions Universal
Packaging
Environment
Item list

187 65 76

Type Grey ring
Dim. AX25 x ½"
For pipe dim. 25x3,5
C mm 26.5
G mm 14
L mm 104
System solutions Universal
Packaging
Environment
Item list

187 84 44

Type Grey ring
Dim. AX25 x ¾" x AX20
For pipe dim. 25x3,5 x 20x2,5
C mm 27.5
G mm 15
L mm 109.5
System solutions Universal
Packaging
Environment
Item list

187 65 77

Type Grey ring
Dim. AX25 x ¾"
For pipe dim. 25x3,5
C mm 27.5
G mm 15
L mm 96
System solutions Universal
Packaging
Environment
Item list

187 65 81

Type Grey ring
Dim. A32 x ½"
For pipe dim. 32x2,9-3,0
C mm 31.5
G mm 14
L mm 103
System solutions Universal
Packaging
Environment
Item list

187 84 45

Type Grey ring
Dim. A32 x ¾" x AX25
For pipe dim. 32x2,9-3,0 x 25x3,5
C mm 31.5
G mm 15
L mm 111
System solutions Universal
Packaging
Environment
Item list

187 65 82

Type Grey ring
Dim. A32 x ¾"
For pipe dim. 32x2,9-3,0
C mm 31.5
G mm 15
L mm 94
System solutions Floor Heating, Universal, Ground Heating, PEM
Packaging
Environment
Item list

187 65 83

Type Grey ring
Dim. A32 x 1"
For pipe dim. 32x2,9-3,0
C mm 32.5
G mm 16
L mm 102
System solutions Floor Heating, Universal, Ground Heating, PEM
Packaging
Environment
Item list

187 65 84

Type Grey ring
Dim. A32 x 1¼"
For pipe dim. 32x2,9-3,0
C mm 36
G mm 19
L mm 111
System solutions Floor Heating, Universal, Ground Heating, PEM
Packaging
Environment
Item list

187 80 16

Type Grey ring
Dim. A40 x ¾"
For pipe dim. 40x3,5 x 50x4,0
C mm 31
G mm 15
L mm 100
System solutions Universal
Packaging
Environment
Item list

187 26 28

Type Grey ring
Dim. A40 x 1"
For pipe dim. 40x3,5 x 50x4,0
C mm 36.5
G mm 17
L mm 107
System solutions Universal
Packaging
Environment
Item list

187 26 29

Type Grey ring
Dim. A40 x 1¼"
For pipe dim. 40x3,5 x 50x4,0
C mm 38
G mm 19.5
L mm 117
System solutions Universal
Packaging
Environment
Item list

187 26 30

Type Grey ring
Dim. A50 x 1¼"
For pipe dim. 50x4,0
C mm 42
G mm 19.5
L mm 141.4
System solutions Universal
Packaging
Environment
Item list

187 26 31

Type Grey ring
Dim. A50 x 1½"
For pipe dim. 50x4,0
C mm 42
G mm 19.5
L mm 147.4
System solutions Universal
Packaging
Environment
Item list

187 42 01

Type Grey ring
Dim. A63 x 2"
For pipe dim. 63x4,5
C mm 51
G mm 23.5
L mm 163.4
System solutions Universal
Packaging
Environment
Item list

188 15 41

Type Grey ring
Dim. A75 x 1"
For pipe dim. 75x7,5
C mm 50
G mm 17
L mm 148
System solutions Universal
Packaging
Environment
Item list

188 15 42

Type Grey ring
Dim. A75 x 2"
For pipe dim. 75x7,5
C mm 56
G mm 27
L mm 177
System solutions Universal
Packaging
Environment
Item list

Information about SVHC substances according to REACH Article 33 can be found under the environmental attribute of the article. The CO₂ equivalents representing the total GWP (A1–A3) from our EPD/environmental product declaration are also displayed there.

Detailed Information

Description

Press fitting for connection of LK PAL and LK PE-X Universal Pipe.

Documentation

Product sheet

LK PressPex T-Piece female

EPD

LK PressPex Fittings & Manifolds - EPD

EPD

LK PressPex Fittings, Straight/Elbow/T-piece & Connection - EPD

Assembly instruction

Assembly instruction_LK PressPex

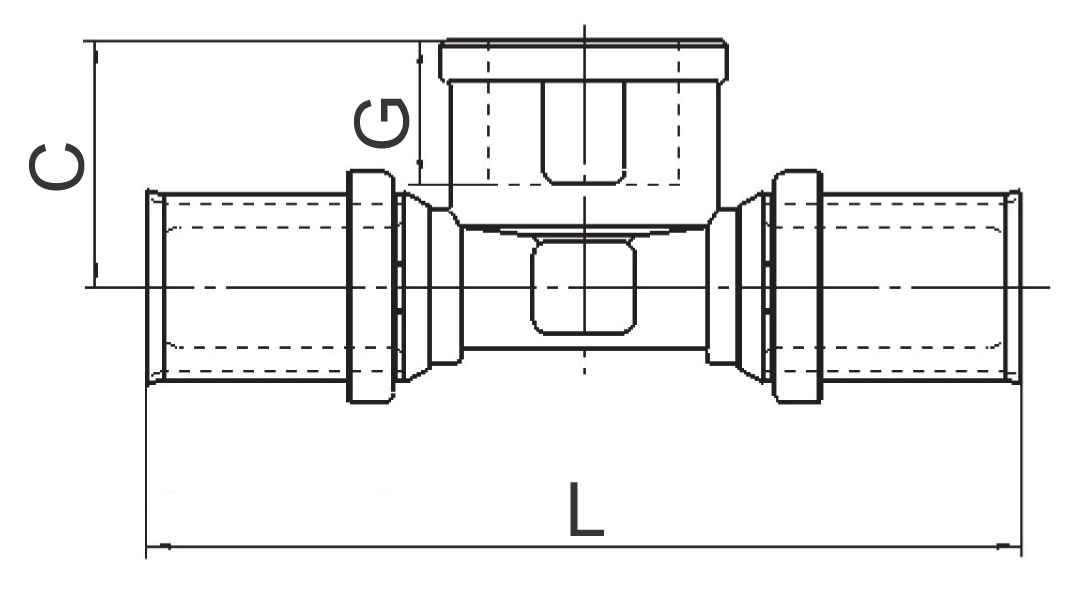

Dimensional drawing

PressPex_skiss_T-rör inv gg
