LK PressPex Vinkel 90º inv gg

LK PressPex Elbow Fitting 90º female

Press fitting for connection of LK PAL and LK PE-X Universal Pipe.

LK PressPex Vinkel 90º inv gg

LK PressPex Elbow Fitting 90º female

  • Variants
  • Detailed Information
  • Documentation

Variants

Filter system solutions:

Article Type Dim. For pipe dim. C mm G mm L mm System solutions Packaging Environment Item List
187 65 41 Grey ring AX16 x ½" 16x2,0 24 14 42.5 Floor Heating, Universal, PEM
187 84 48 Grey ring AX16 x ¾" 16x2,0 25 15 45.5 Floor Heating, Universal, PEM
187 65 42 Grey ring AX20 x ½" 20x2,5 26 14 43.5 Universal
187 65 43 Grey ring AX20 x ¾" 20x2,5 27 15 46.5 Universal
187 65 44 Grey ring AX25 x ¾"" 25x3,5 28.5 15 48 Universal
187 84 49 Grey ring AX25 x 1" 25x3,5 29.5 16 52 Universal
187 80 03 Grey ring A32 x ¾"" 32x2,9-3,0 30 15 47 Floor Heating, Universal, Ground Heating, PEM
187 65 45 Grey ring A32 x 1" 32x2,9-3,0 32.5 16 51 Floor Heating, Universal, Ground Heating, PEM
187 84 50 Grey ring A32 x 1¼" 32x2,9-3,0 34 19 55.5 Floor Heating, Universal, Ground Heating, PEM
187 20 91 Grey ring A40 x 1¼" 40x3,5 x 50x4,0 38 19.5 58.5 Universal
187 84 51 Grey ring A40 x 1½" 40x3,5 x 50x4,0 38 19.5 60.5 Universal
187 25 97 Grey ring A50 x 1¼" 50x4,0 42 19.5 70.7 Universal
187 25 98 Grey ring A50 x 1½" 50x4,0 42 19.5 73.7 Universal
187 84 52 Grey ring A50 x 2" 50x4,0 34 23.5 79.5 Universal
187 42 09 Grey ring A63 x 2" 63x4,5 48.5 23.5 81.7 Universal

187 65 41

Type Grey ring
Dim. AX16 x ½"
For pipe dim. 16x2,0
C mm 24
G mm 14
L mm 42.5
System solutions Floor Heating, Universal, PEM
Packaging
Environment
Item list

187 84 48

Type Grey ring
Dim. AX16 x ¾"
For pipe dim. 16x2,0
C mm 25
G mm 15
L mm 45.5
System solutions Floor Heating, Universal, PEM
Packaging
Environment
Item list

187 65 42

Type Grey ring
Dim. AX20 x ½"
For pipe dim. 20x2,5
C mm 26
G mm 14
L mm 43.5
System solutions Universal
Packaging
Environment
Item list

187 65 43

Type Grey ring
Dim. AX20 x ¾"
For pipe dim. 20x2,5
C mm 27
G mm 15
L mm 46.5
System solutions Universal
Packaging
Environment
Item list

187 65 44

Type Grey ring
Dim. AX25 x ¾""
For pipe dim. 25x3,5
C mm 28.5
G mm 15
L mm 48
System solutions Universal
Packaging
Environment
Item list

187 84 49

Type Grey ring
Dim. AX25 x 1"
For pipe dim. 25x3,5
C mm 29.5
G mm 16
L mm 52
System solutions Universal
Packaging
Environment
Item list

187 80 03

Type Grey ring
Dim. A32 x ¾""
For pipe dim. 32x2,9-3,0
C mm 30
G mm 15
L mm 47
System solutions Floor Heating, Universal, Ground Heating, PEM
Packaging
Environment
Item list

187 65 45

Type Grey ring
Dim. A32 x 1"
For pipe dim. 32x2,9-3,0
C mm 32.5
G mm 16
L mm 51
System solutions Floor Heating, Universal, Ground Heating, PEM
Packaging
Environment
Item list

187 84 50

Type Grey ring
Dim. A32 x 1¼"
For pipe dim. 32x2,9-3,0
C mm 34
G mm 19
L mm 55.5
System solutions Floor Heating, Universal, Ground Heating, PEM
Packaging
Environment
Item list

187 20 91

Type Grey ring
Dim. A40 x 1¼"
For pipe dim. 40x3,5 x 50x4,0
C mm 38
G mm 19.5
L mm 58.5
System solutions Universal
Packaging
Environment
Item list

187 84 51

Type Grey ring
Dim. A40 x 1½"
For pipe dim. 40x3,5 x 50x4,0
C mm 38
G mm 19.5
L mm 60.5
System solutions Universal
Packaging
Environment
Item list

187 25 97

Type Grey ring
Dim. A50 x 1¼"
For pipe dim. 50x4,0
C mm 42
G mm 19.5
L mm 70.7
System solutions Universal
Packaging
Environment
Item list

187 25 98

Type Grey ring
Dim. A50 x 1½"
For pipe dim. 50x4,0
C mm 42
G mm 19.5
L mm 73.7
System solutions Universal
Packaging
Environment
Item list

187 84 52

Type Grey ring
Dim. A50 x 2"
For pipe dim. 50x4,0
C mm 34
G mm 23.5
L mm 79.5
System solutions Universal
Packaging
Environment
Item list

187 42 09

Type Grey ring
Dim. A63 x 2"
For pipe dim. 63x4,5
C mm 48.5
G mm 23.5
L mm 81.7
System solutions Universal
Packaging
Environment
Item list

Information about SVHC substances according to REACH Article 33 can be found under the environmental attribute of the article. The CO₂ equivalents representing the total GWP (A1–A3) from our EPD/environmental product declaration are also displayed there.

Detailed Information

Description

Press fitting for connection of LK PAL and LK PE-X Universal Pipe.

Documentation

Product sheet

LK PressPex Elbow Fitting 90º female

EPD

LK PressPex Fittings & Manifolds - EPD

EPD

LK PressPex Fittings Straight & Elbow - EPD

Assembly instruction

Assembly instruction_LK PressPex

Dimensional drawing

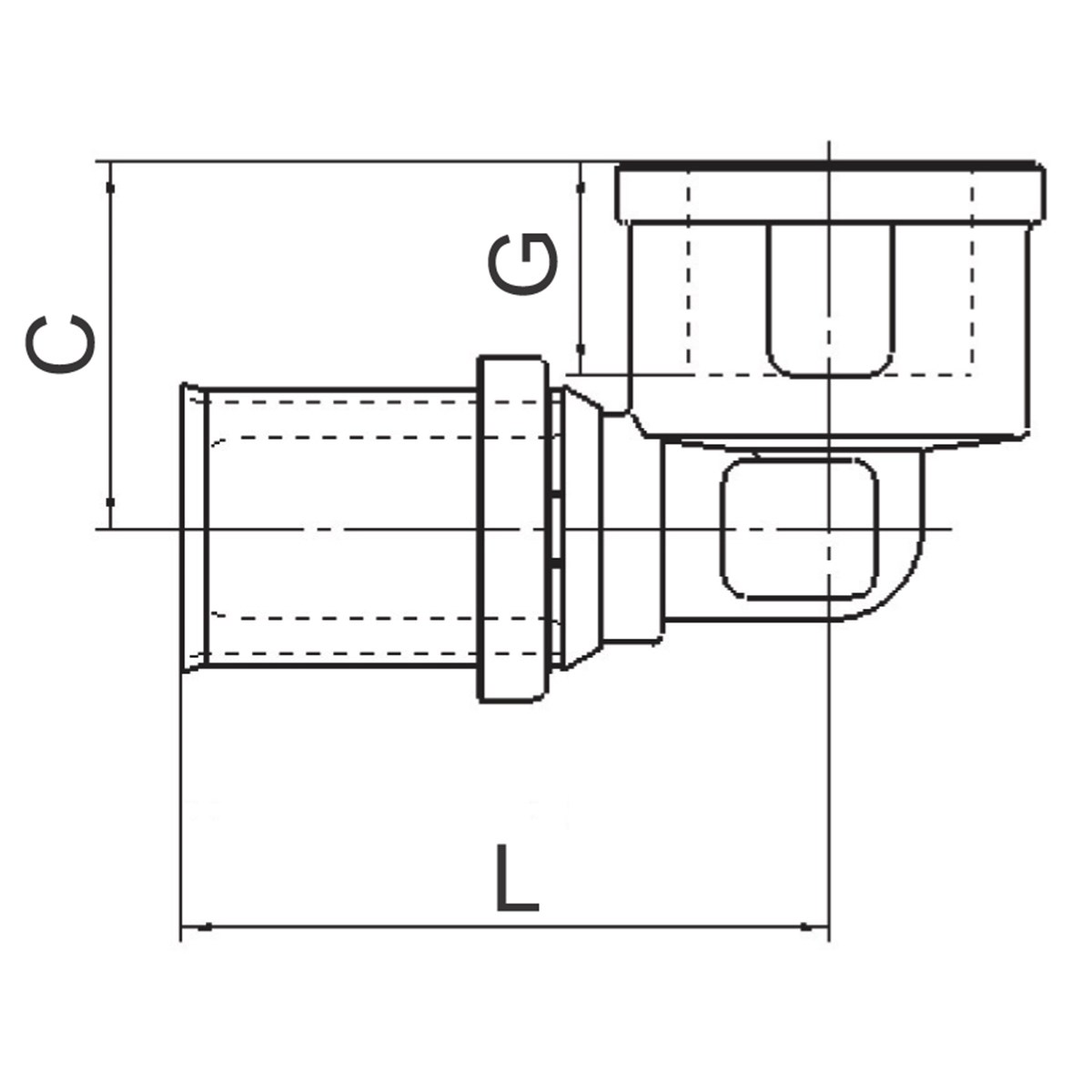

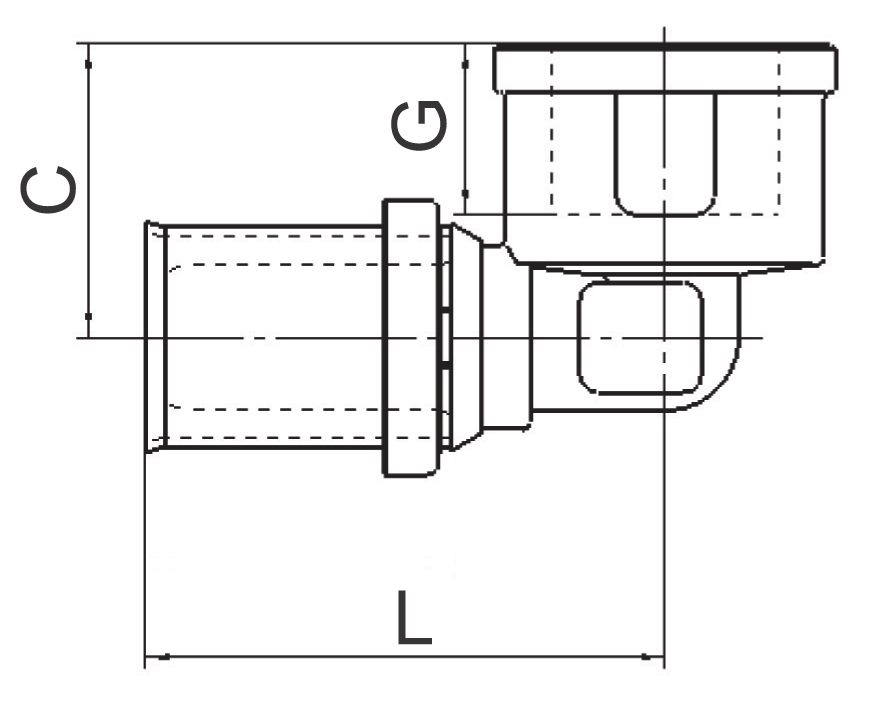

PressPex_skiss_Vinkel inv gg
