LK Water Meter Cabinet 8/6 CS

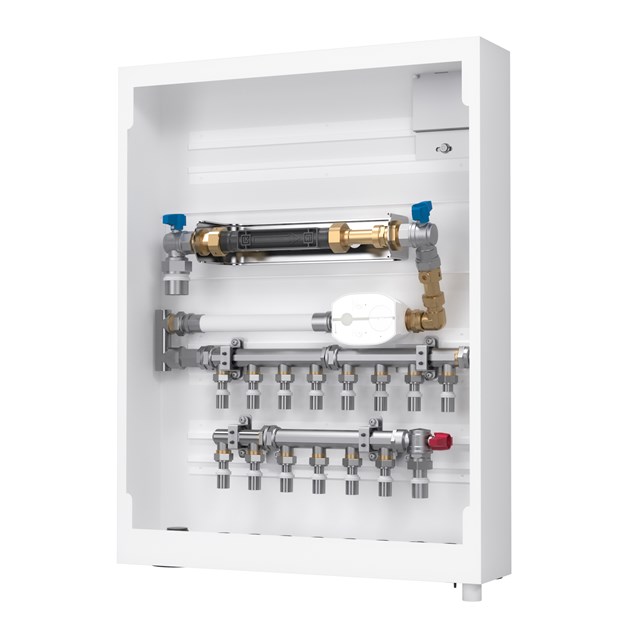

LK Water Meter Cabinet UNI 8/6 CS is a leak-proof prefabricated manifold cabinet for 8 cold water connections, 6 hot water connections, fitted with LK CubicSecure and a pre-assembled water meter bracket G1" (DN20), 220/190 mm with supplied brass adapter. A Leakdetector with head unit is inluded in the assembly. The incoming cold water service is fed from below, external connection, 1" bracket. The cabinet is available in two versions for connecting the cold water on the right and left side. The cabinet cannot be rebuilt as it only has one hole for the feed pipe.

The cabinet includes a ball valve, a gauge block for the local authority tap water metre and a controllable check valve. It is delivered complete with the correct pipe inlets for both feeding and coupling pipes (conduit dimensions 2 pcs ø32-50 and 14st ø25, 1 pcs 12-34). 14 pcs LK Press Connection Coupling AX16xG15 for coupling pipes are also included, and outlets for AX20 for feeding to and from water heaters.

All manifolds, couplings and ball valves are made from DZR brass. A protective bag is included to cover the cabinet during building work. In order to assemble and leave space for the drainage bend the cabinet must be mounted at least 300 mm from the bottom of the cabinet base to the installed floor. Meets Sweden's SÄKER VATTEN plumbing safety regulations.

Note! LK Frame with hatch, Art No. 243 46 80, is also suitable for LK Water Meter Cabinet UNI 8/6 CS but must be ordered separately.
