LK Värmekretsfördelare RF
LK Värmekretsfördelare RF
LK Värmekretsfördelare RF

LK Manifold RF

LK Manifold RF is made of stainless steel, the variants having 1 to 12 floor heating circuits. The manifold is delivered pre-mounted in brackets. The manifold has thermometers on the supply and return, manual a...

Read more

LK Värmekretsfördelare RF

LK Manifold RF

  • Variants
  • Detailed Information
  • Documentation
  • Related Products

Variants

Article Length Height Depth No. of circuits Weight (kg) Packaging Environment Item List
241 02 58 128 mm 355 90 mm 1 1.20
241 93 50 220 mm 355 90 mm 2 2.20
241 93 51 270 mm 355 90 mm 3 2.40
241 93 52 320 mm 355 90 mm 4 2.60
241 93 53 385 mm 355 90 mm 5 2.90
241 93 54 420 mm 355 90 mm 6 3.18
241 93 55 470 mm 355 90 mm 7 3.57
241 93 57 520 mm 355 90 mm 8 3.96
241 93 58 570 mm 355 90 mm 9 4.34
241 93 59 620 mm 355 90 mm 10 4.72
241 93 60 670 mm 355 90 mm 11 5.11
241 93 61 720 mm 355 90 mm 12 5.49

241 02 58

Length 128 mm
Height 355
Depth 90 mm
No. of circuits 1
Weight (kg) 1.20
Packaging
Environment
Item list

241 93 50

Length 220 mm
Height 355
Depth 90 mm
No. of circuits 2
Weight (kg) 2.20
Packaging
Environment
Item list

241 93 51

Length 270 mm
Height 355
Depth 90 mm
No. of circuits 3
Weight (kg) 2.40
Packaging
Environment
Item list

241 93 52

Length 320 mm
Height 355
Depth 90 mm
No. of circuits 4
Weight (kg) 2.60
Packaging
Environment
Item list

241 93 53

Length 385 mm
Height 355
Depth 90 mm
No. of circuits 5
Weight (kg) 2.90
Packaging
Environment
Item list

241 93 54

Length 420 mm
Height 355
Depth 90 mm
No. of circuits 6
Weight (kg) 3.18
Packaging
Environment
Item list

241 93 55

Length 470 mm
Height 355
Depth 90 mm
No. of circuits 7
Weight (kg) 3.57
Packaging
Environment
Item list

241 93 57

Length 520 mm
Height 355
Depth 90 mm
No. of circuits 8
Weight (kg) 3.96
Packaging
Environment
Item list

241 93 58

Length 570 mm
Height 355
Depth 90 mm
No. of circuits 9
Weight (kg) 4.34
Packaging
Environment
Item list

241 93 59

Length 620 mm
Height 355
Depth 90 mm
No. of circuits 10
Weight (kg) 4.72
Packaging
Environment
Item list

241 93 60

Length 670 mm
Height 355
Depth 90 mm
No. of circuits 11
Weight (kg) 5.11
Packaging
Environment
Item list

241 93 61

Length 720 mm
Height 355
Depth 90 mm
No. of circuits 12
Weight (kg) 5.49
Packaging
Environment
Item list

Information about SVHC substances according to REACH Article 33 can be found under the environmental attribute of the article. The CO₂ equivalents representing the total GWP (A1–A3) from our EPD/environmental product declaration are also displayed there.

Detailed Information

Description

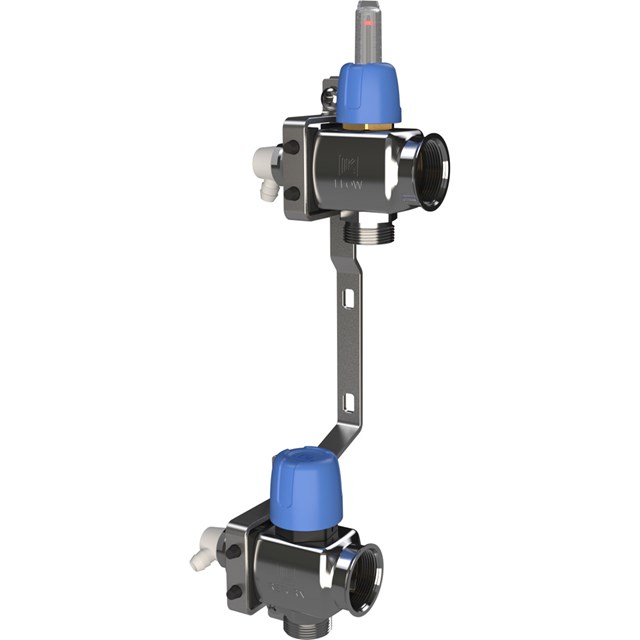

LK Manifold RF is made of stainless steel, the variants having 1 to 12 floor heating circuits. The manifold is delivered pre-mounted in brackets. The manifold has thermometers on the supply and return, manual air-bleed valves and filling/drain valves*.
(*Manifold RF 1 is supplied without thermometer or filling/drain valve)

The upper manifold marked FLOW (supply) is fitted with flow indicators graded from 0,5-5 l/min and adjustment valves for the adjustment of individual circuit flows. The flow indicators are made of temperature and impact resistant plastic.
The lower manifold marked RETURN has hand actuators for shutting off individual circuits.
The manifold is ready to be connected to the left-hand side on delivery. Connection from the right is done by removing the end cap assemblies. Marking plates for identifying individual floor heating circuits, assembly instructions and a protective bag used to protect the manifold from e.g. splashes of concrete during the assembly period are enclosed.

The manifold requires additionally:
Two LK Ball Valves (Art. no. 241 75 50) or LK Ball Valve Angle (Art. no. 241 79 58). Where appropriate, the ball valve is replaced by LK OptiFlow EVO II. See product range for LK Adjustment Valves.
LK Connection Coupling for pipe range dim: PE-X/PAL pipe in dim 16 (Art. no. 241 72 98) / PE-X pipe in dim 12x2 (Art. no. 241 94 66 ) / PE-X pipe in dim 20x2 (Art. no. 241 94 68).

Connection dimensions:
Connection feed pipe, 1" female
Connection under floor heating pipe, ¾" male Eurocone

Dimensions:
The dimensions of the manifold are listed in the table below. Center dimension pipe connections is 50 mm with 25 mm displacement between flow and return. Additional length for accessories are stated below.

LK Ball Valve Straight: 65 mm
LK Ball Valve Angle: 70 mm
LK By-Pass RF: 15 mm
LK By-Pass Delta P RF: 155 mm
LK OptiFlow EVO II incl joint nipple straight: 123 mm
LK OptiFlow EVO II incl joint nipple elbow: 93 mm

Documentation

Product sheet

LK Manifold RF

Assembly instruction

LK Manifold RF

Quick guides

LK Manifold RF Accessory guide

Assembly instruction

Replacement of actuator adapter LK26

Assembly instruction

Replacement of actuator adapter VA26

Quick guides

Accessory guide LK Manifold RF

EPD

LK Manifold RF 1-12 circuits - EPD

Related Products

Accessories

LK Manifold RF

LK Manifold RF

LK Manifold RF is made of stainless steel, the variants having 1 to 12 floor heating circuits. The m...

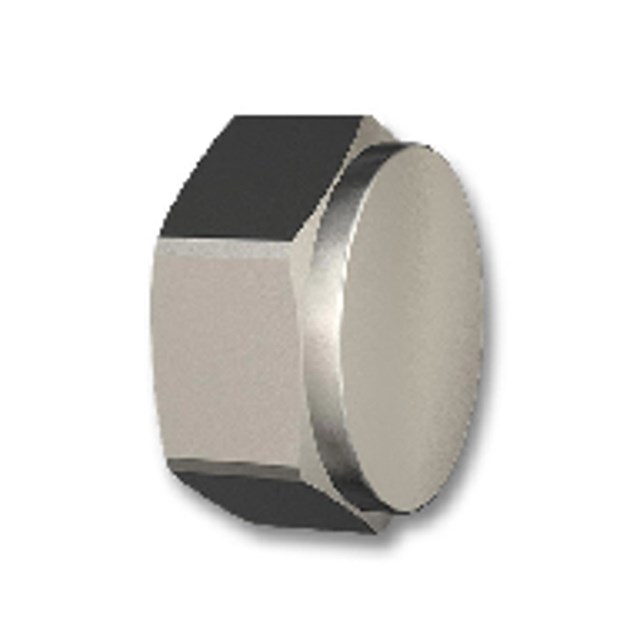

LK Cap

LK Cap

LK Cap is complete with gasket for plugging unused connections on manifolds etc. For dim 1/2" and 3...

LK Connection Coupling RF

LK Connection Coupling RF

For connection to LK Manifold RF. For connection of 8 mm floor heating pipes use LK PushFit 8. See ...

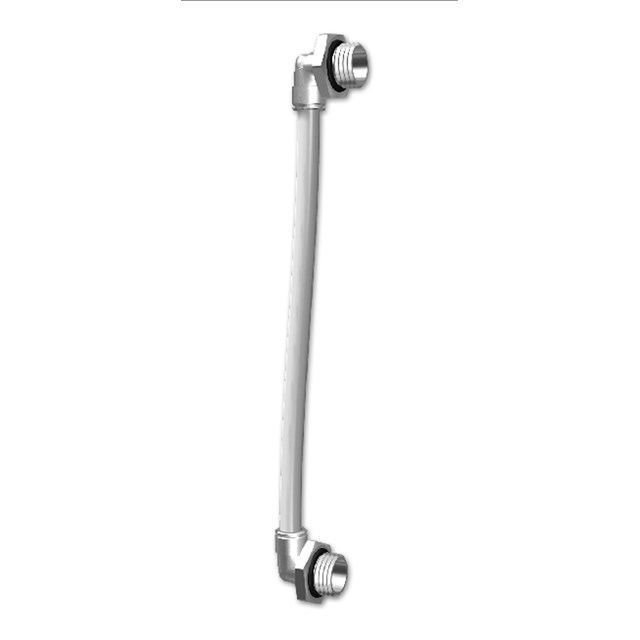

LK By-Pass RF

LK By-Pass RF

Complete set for assembly of by-pass with kvs 0,05 on LK Manifold RF. The by-pass extends installed ...

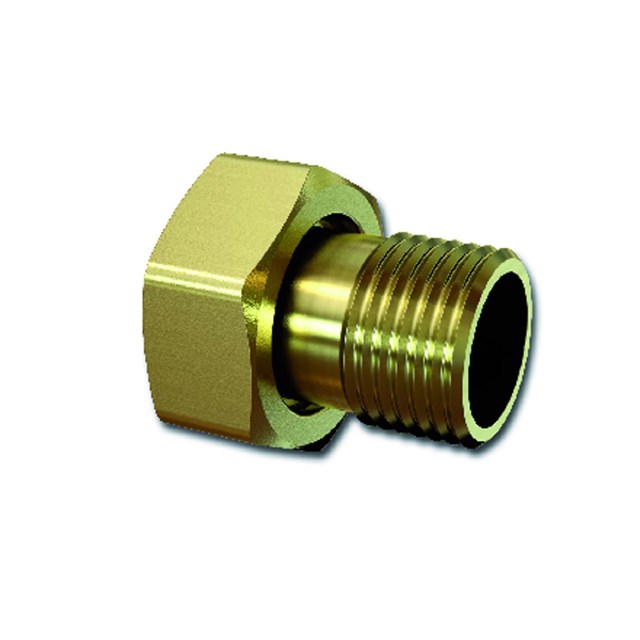

LK Adapter

LK Adapter

LK Adapter with loose nut for transition from 1/2" to 3/4” EuroCone. Fits e.g. LK Manifold RF, LK Mi...

LK Connection Coupling RF CU

LK Connection Coupling RF CU

LK Connection coupling for copper pipes to LK Manifold RF and LK Minishunt M60n.

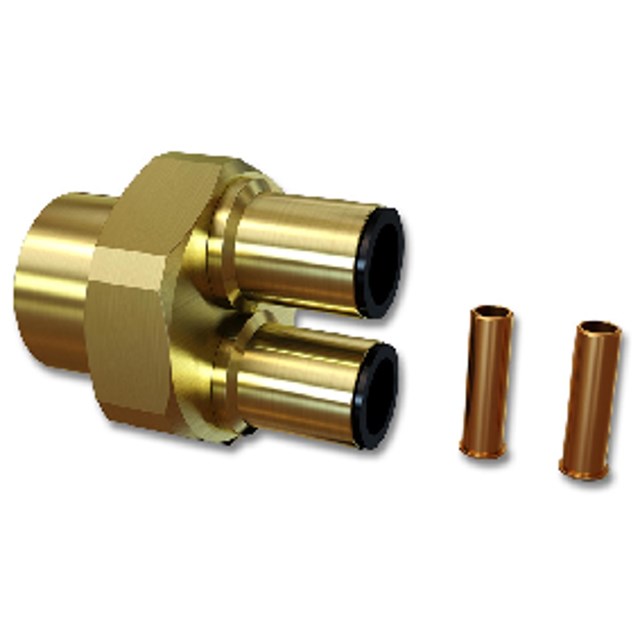

LK PushFit 8, Duo

LK PushFit 8, Duo

LK PushFit to 8 mm floor heating pipe. E.g. used to connect to LK Manifold RF or LK Mini Loop Valve ...

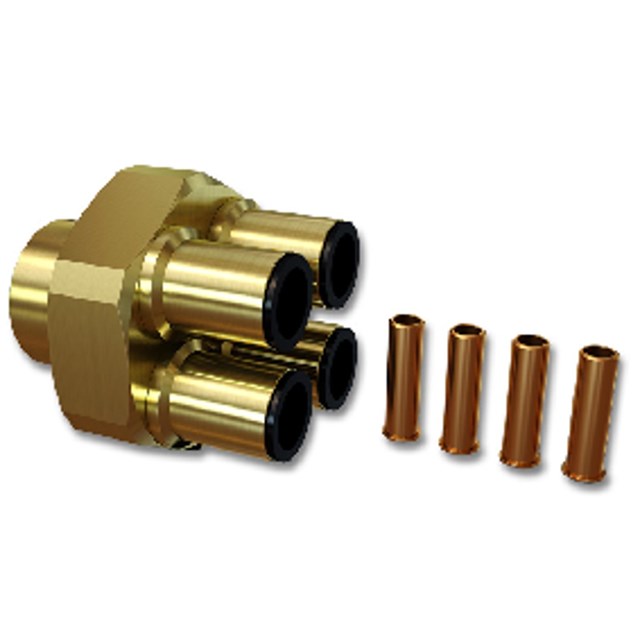

LK PushFit 8, Quattro

LK PushFit 8, Quattro

LK PushFit to 8 mm floor heating pipe. E.g. used to connect to LK Manifold RF or LK Mini Loop Valve ...

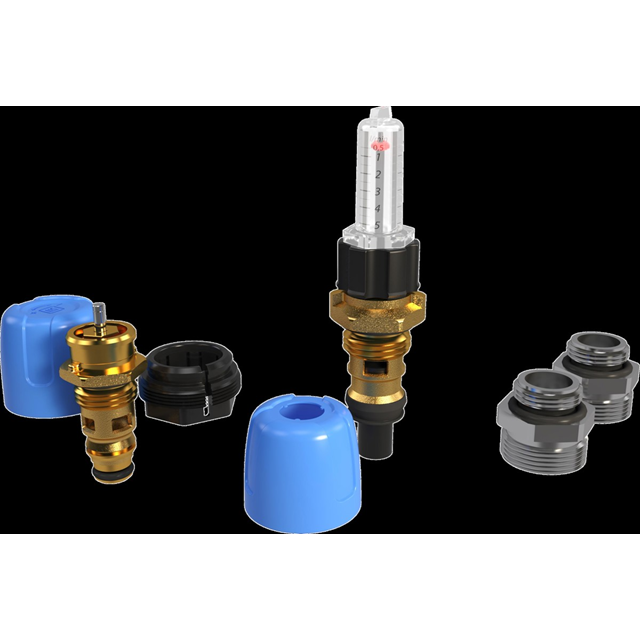

LK Valve kit VKF RF

LK Valve kit VKF RF

LK Valve kit VKF RF is used when you need to expand an existing manifold to include another floor he...

LK PressPex Press Connection

LK PressPex Press Connection

PressPex fitting with loose nut for connecting LK PE-X and PAL Universal pipe to male EuroCone on e....

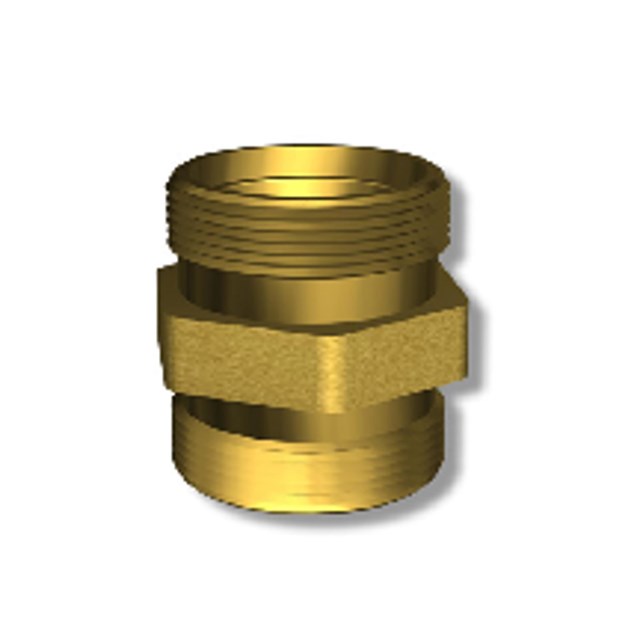

LK Joint Nipple

LK Joint Nipple

For joining LK Manifold RF/LK Mini Manifold.

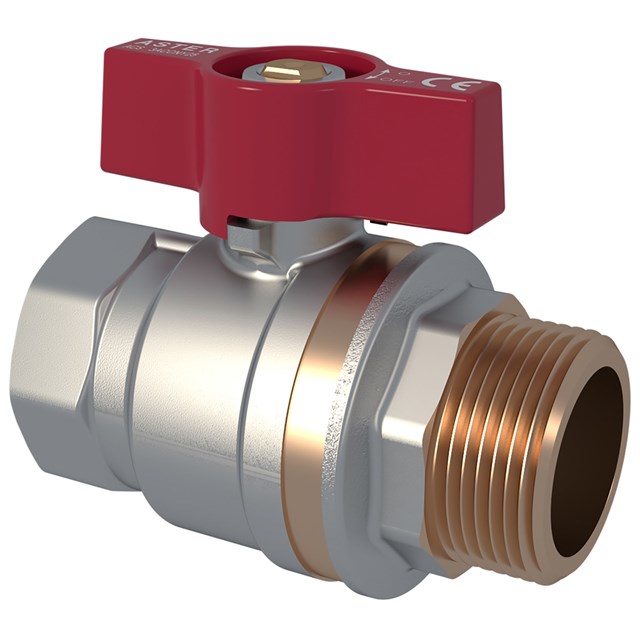

LK Ball Valve straight 1"

LK Ball Valve straight 1"

Isolation valve for LK Manifold RF.

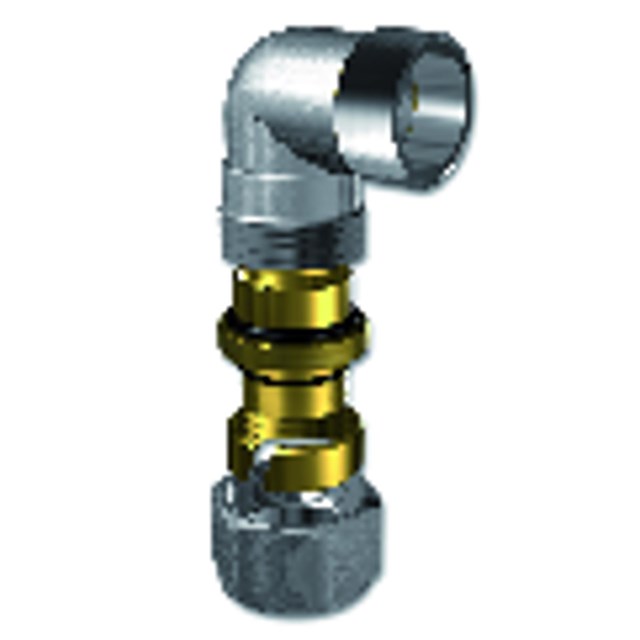

LK Connection Set angle

LK Connection Set angle

Connection Set for connection of feed pipe PE-X to LK Manifold RF.

LK Fitting Wrench

LK Fitting Wrench

LK Fitting Wrench is a circular ratchet spanner for easy assembly of connection couplings. The spann...

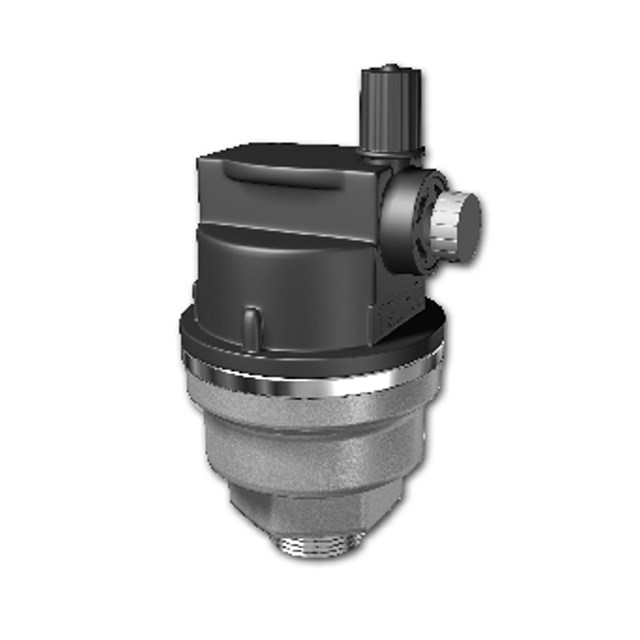

LK Automatic Air Vent RF

LK Automatic Air Vent RF

Intended for LK Manifold RF. Replaces the standard manual air vent. The air vent has both a manual a...

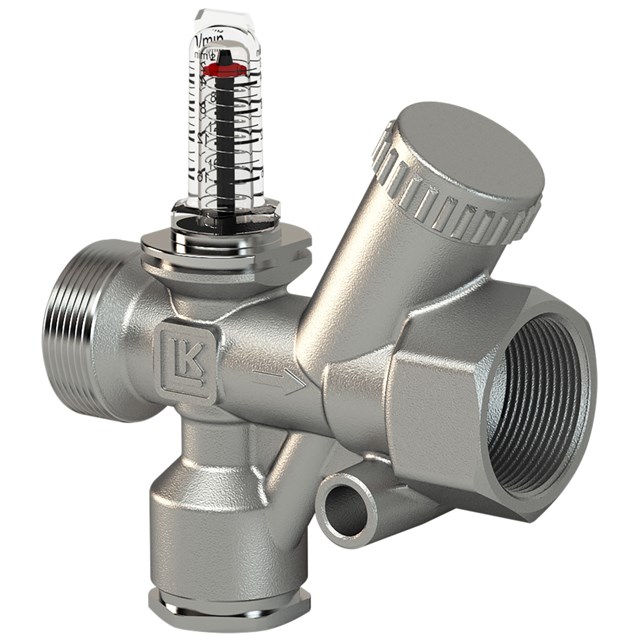

LK OptiFlow EVO II

LK OptiFlow EVO II

LK OptiFlow EVO II is a group valve for adjusting flow in, for example, under floor heating systems,...

Spare Parts

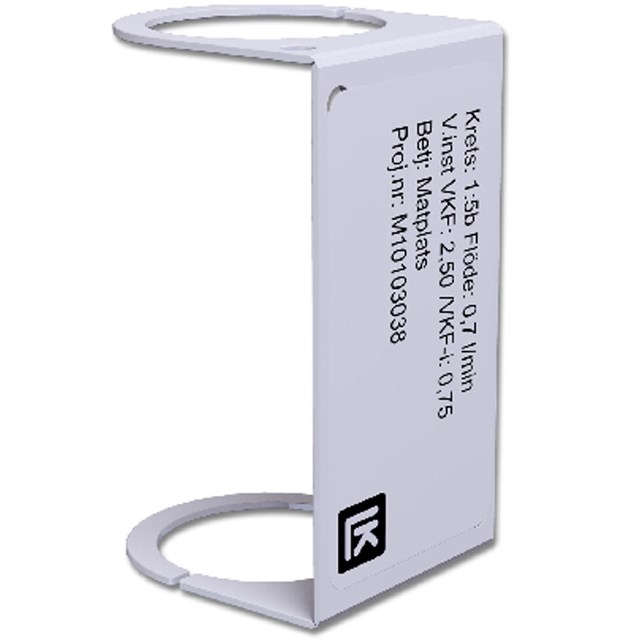

LK Marking plate R

LK Marking plate R

For labeling floor heating loops on LK Manifold RF and marking LK OptiFlow Evo II. The marking plat...

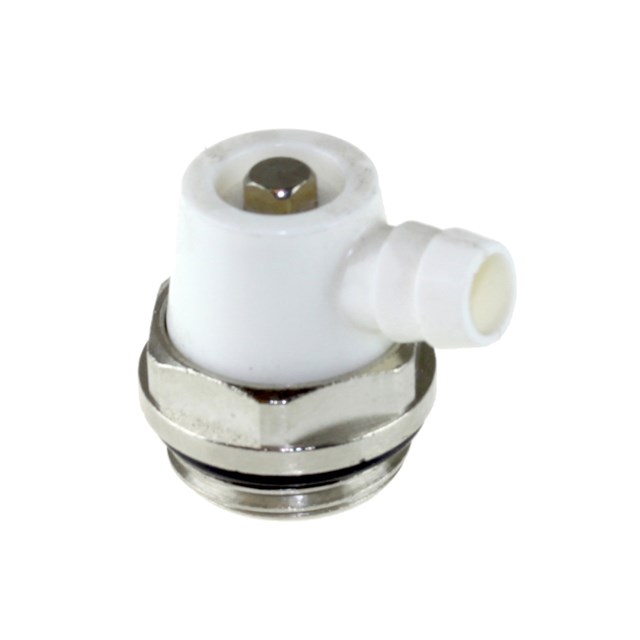

LK Air vent ½"

LK Air vent ½"

Manual air vent for LK Minishunt M60.

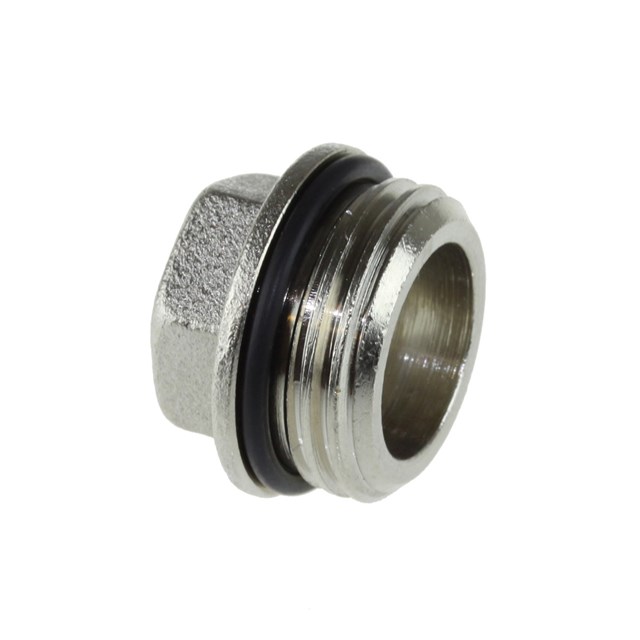

LK Plug ½"

LK Plug ½"

Fits: LK Manifold RF. Fits the 1" end cap with ½" outlet on the manifold. LK Minishunt M60. Fits ...

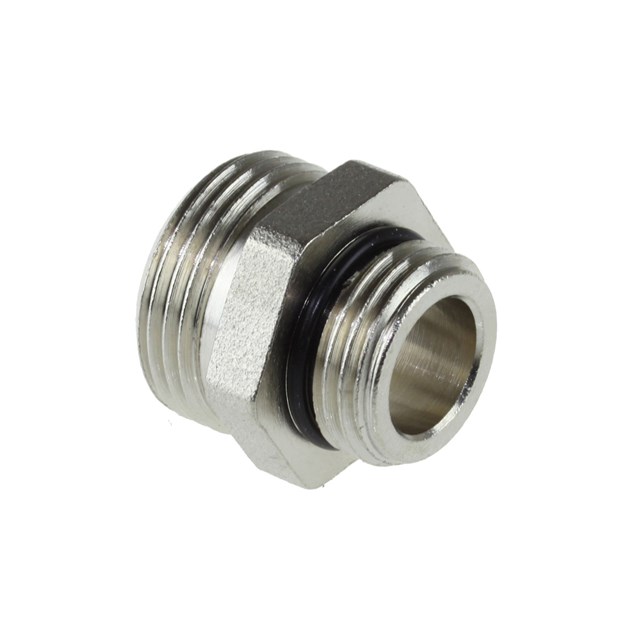

LK EuroConus nipple, Manifold RF

LK EuroConus nipple, Manifold RF

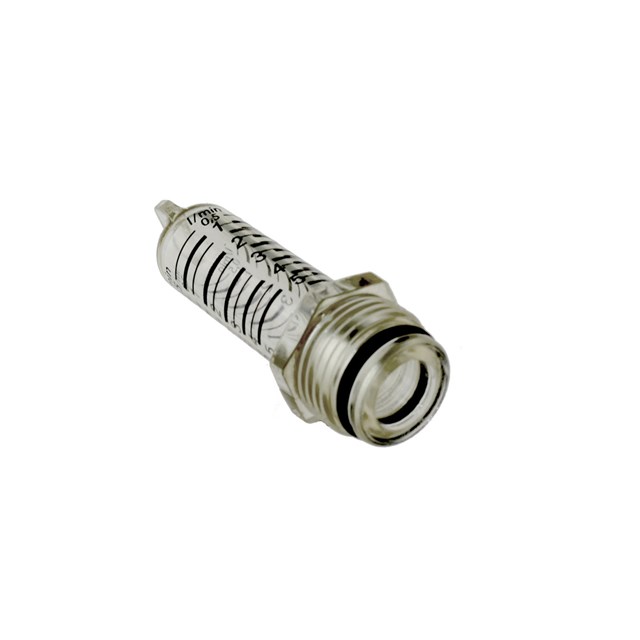

LK Glass to flow indicator 0,5-5 l/min, Manifold RF

LK Glass to flow indicator 0,5-5 l/min, Manifold RF

For dismantling/assembly of glass use LK Key Set Art. no. 33301.

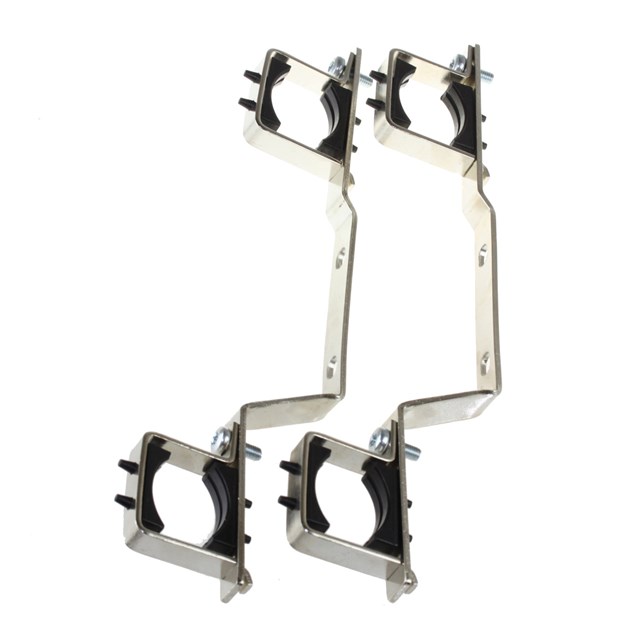

LK Bracket pair, Manifold RF

LK Bracket pair, Manifold RF

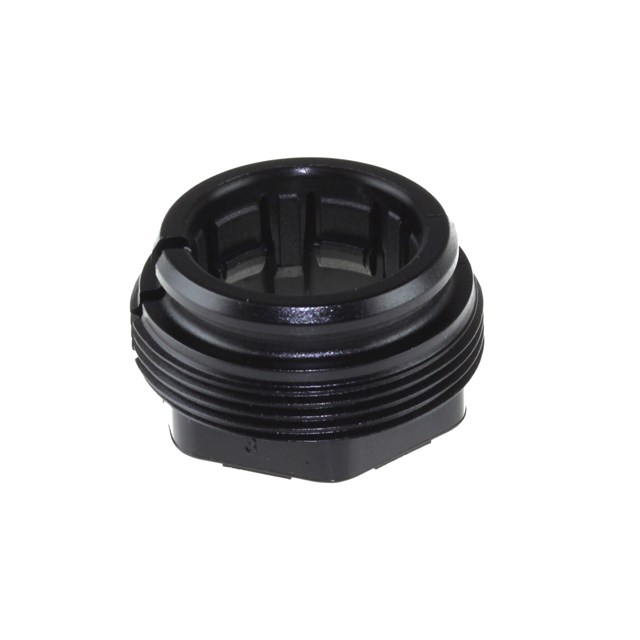

LK Adapter LK 26, Manifold RF

LK Adapter LK 26, Manifold RF

Adapter for mounting return valve handle and/or assembly to LK Actuator. In the spare parts list "R...

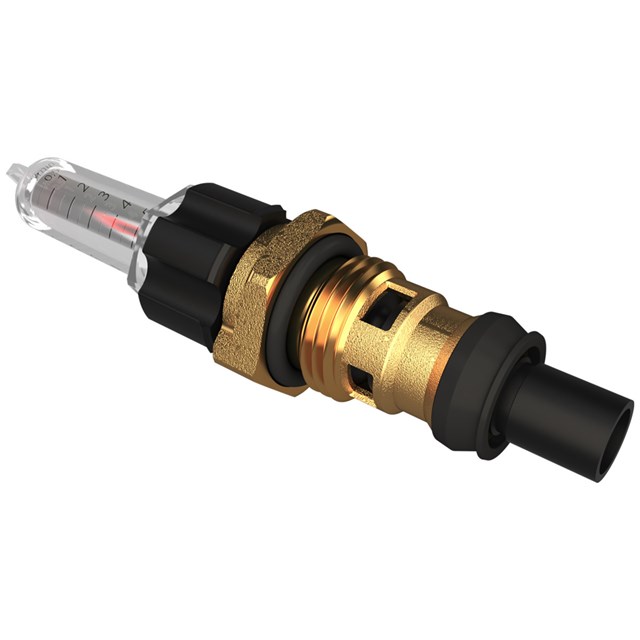

LK Adjustment valve supply, Manifold RF

LK Adjustment valve supply, Manifold RF

Adjustment valve with flow indicator 0,5-5 l/min. The valve can be supplemented with LK Cap Art. no....

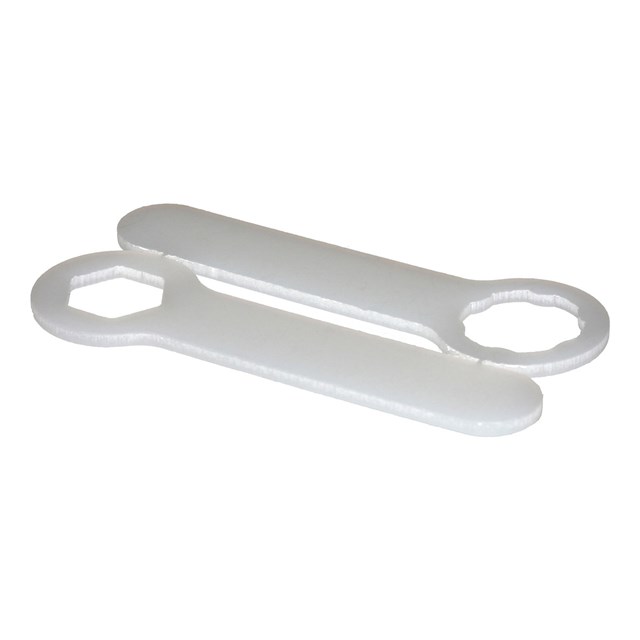

LK Key set flow indicator, Manifold RF

LK Key set flow indicator, Manifold RF

Used to replace glass on flow indicator.

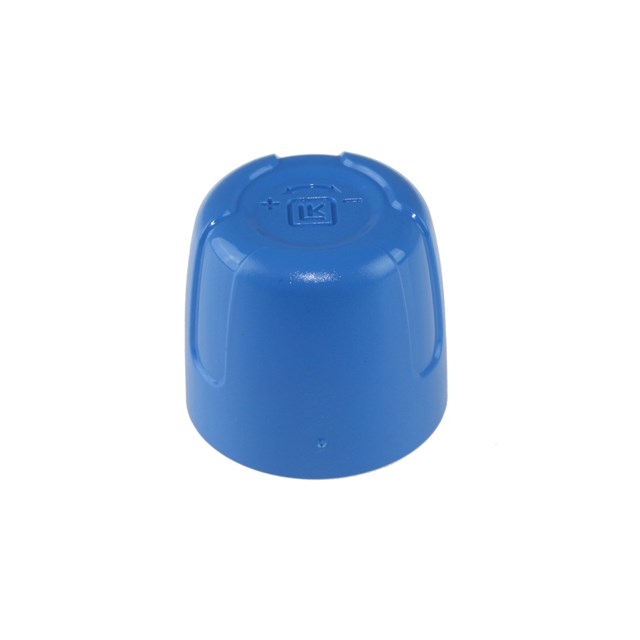

LK Return valve handle, Manifold RF

LK Return valve handle, Manifold RF

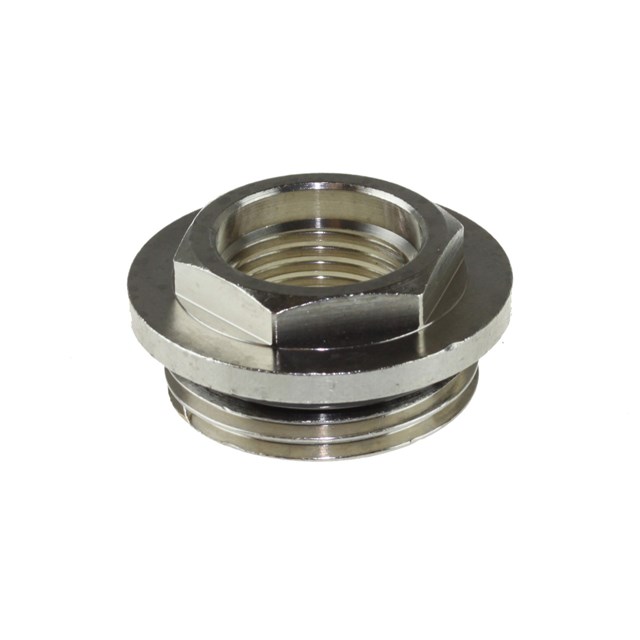

LK End reducer, Manifold RF

LK End reducer, Manifold RF

End reducer for Manifold RF. Used as end cover. Supplement with plug ½", Art. no. 83323.

LK Drain valve, Manifold RF

LK Drain valve, Manifold RF

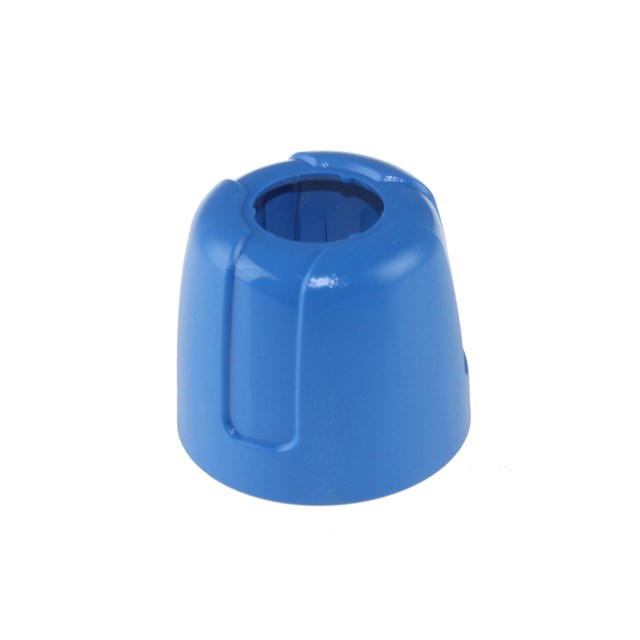

LK Cap adjustment valve, Manifold RF

LK Cap adjustment valve, Manifold RF

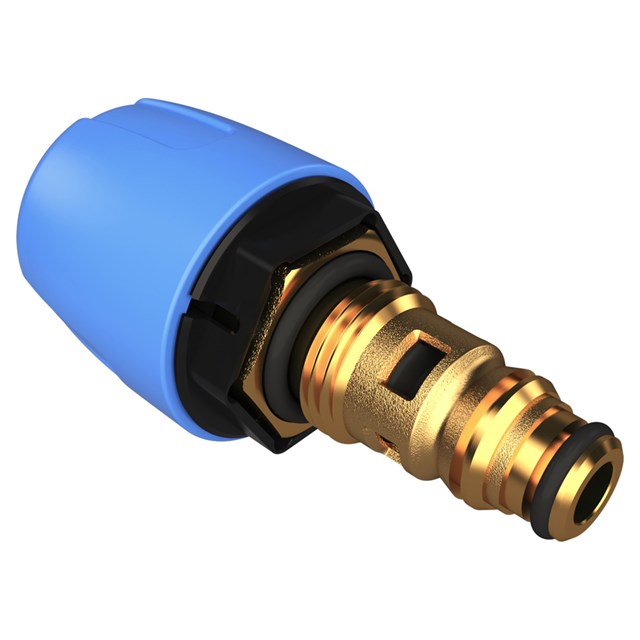

LK Return valve complete, VKF RF

LK Return valve complete, VKF RF

Return valve complete with handle and actuator adapter VA 26.

LK Thermometer 0 - 80ºC

LK Thermometer 0 - 80ºC

Fits: LK Manifold RF, LK Manifold Shunt VS, LK Manifold Shunt CS, LK OptiFlow EVO II
