LKS0016
LKS0016
LKS0016

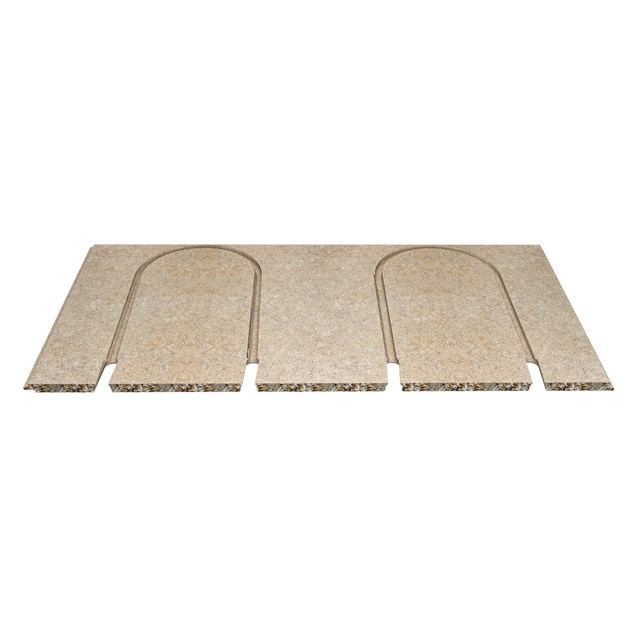

LK HeatFloor 22, Turning Board

Floor grade chipboard 22 mm with turning slots on the upper side at c/c 200 mm or c/c 300 mm for LK Underfloor heating Pipe Ø 16 mm. The board is made in two quality classes, standard P6 and moisture resistant...

Read more

LKS0016

LK HeatFloor 22, Turning Board

  • Variants
  • Detailed Information
  • Documentation
  • Related Products

Variants

Article Length Width Height c/c Quality class CO₂-EQ. (Kg) Weight (kg) Packaging Item List
241 78 18 595 mm 800 mm 22 mm 200 P6* -4.49 7,1
298 88 71 595 mm 1200 mm 22 mm 300 P6* -6.9 7,5
241 81 91 595 mm 800 mm 22 mm 200 P7 7,1

241 78 18

Length 595 mm
Width 800 mm
Height 22 mm
c/c 200
Quality class P6*
CO₂-EQ. (Kg) -4.49
Weight (kg) 7,1
Packaging
Item list

298 88 71

Length 595 mm
Width 1200 mm
Height 22 mm
c/c 300
Quality class P6*
CO₂-EQ. (Kg) -6.9
Weight (kg) 7,5
Packaging
Item list

241 81 91

Length 595 mm
Width 800 mm
Height 22 mm
c/c 200
Quality class P7
CO₂-EQ. (Kg)
Weight (kg) 7,1
Packaging
Item list

The CO₂ equivalents represent the GWP-total (A1-A3) as a result from our EPD/environmental product declaration.
*Nordic Swan Ecolabelled

Detailed Information

Description

Floor grade chipboard 22 mm with turning slots on the upper side at c/c 200 mm or c/c 300 mm for LK Underfloor heating Pipe Ø 16 mm. The board is made in two quality classes, standard P6 and moisture resistant P7.

Building height incl. pipes 22 mm.
Turning slots on the upper side.
Can be installed on floor joists and on existing floor.
4 entry/exit slots.

Material Consumption

  • 1,4 pcs/m turning zone (cc 200)
  • 0,85 pcs/m turning zone (cc 300)

Documentation

Product sheet

LK HeatFloor 22, Turning Board

EPD

LK HeatFloor Board - EPD

Related Products

Intended for

LK HeatFloor 22, Slotted Board

LK HeatFloor 22, Slotted Board

22 mm floor grade chipboard ‘tongue & grooved’ all round. The board has slots centered at 200 mm or ...
