LK Fitting Cabinet UNI 250x250

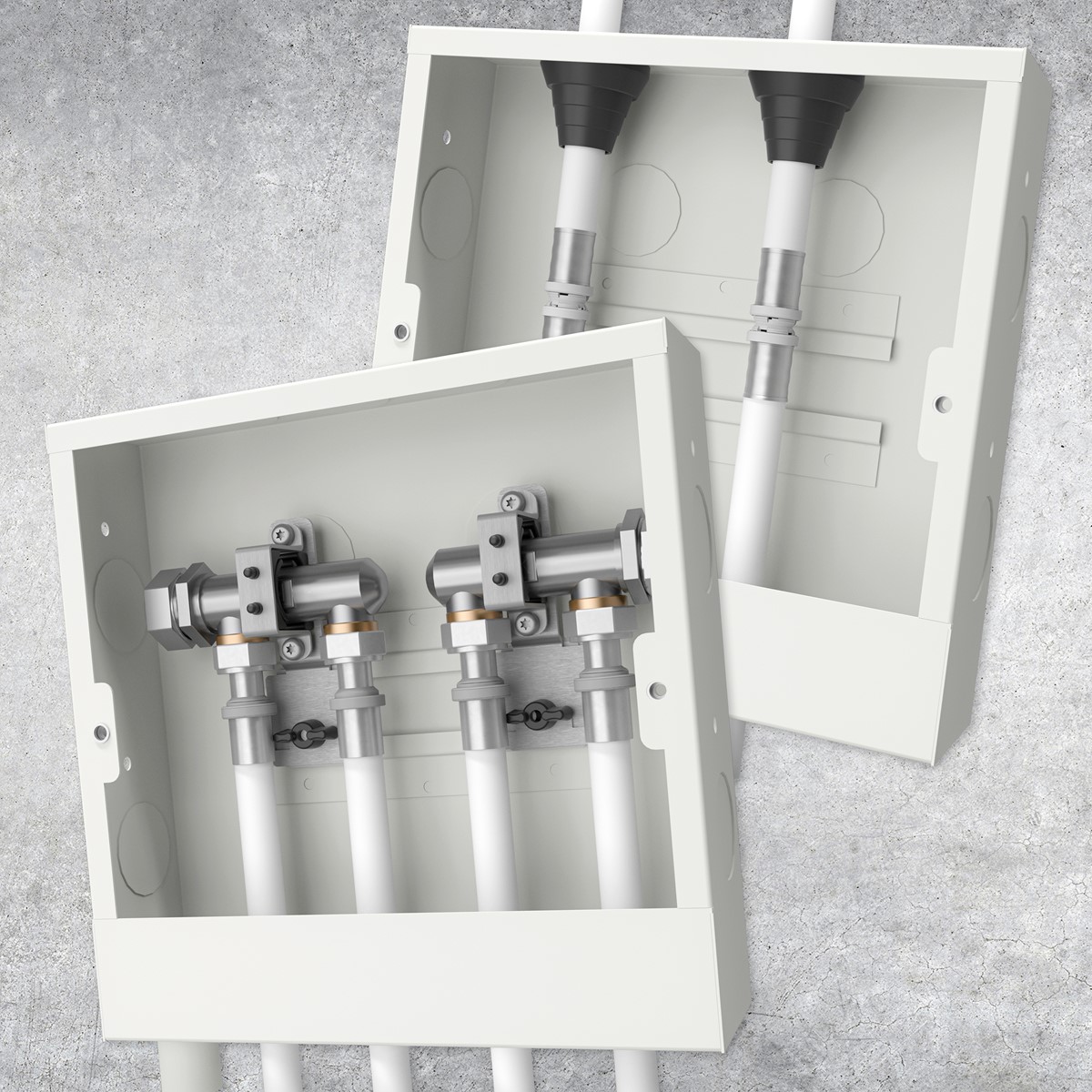

LK Fitting Cabinet is a compact coupling cabinet with space for four connections without group shut-off, and three with. The cabinet can also be used to connect an outdoor faucet to hot and cold water. The pipe for the outdoor faucet is passed through the back of the cabinet, where knock-out holes are provided with rubber bushings.

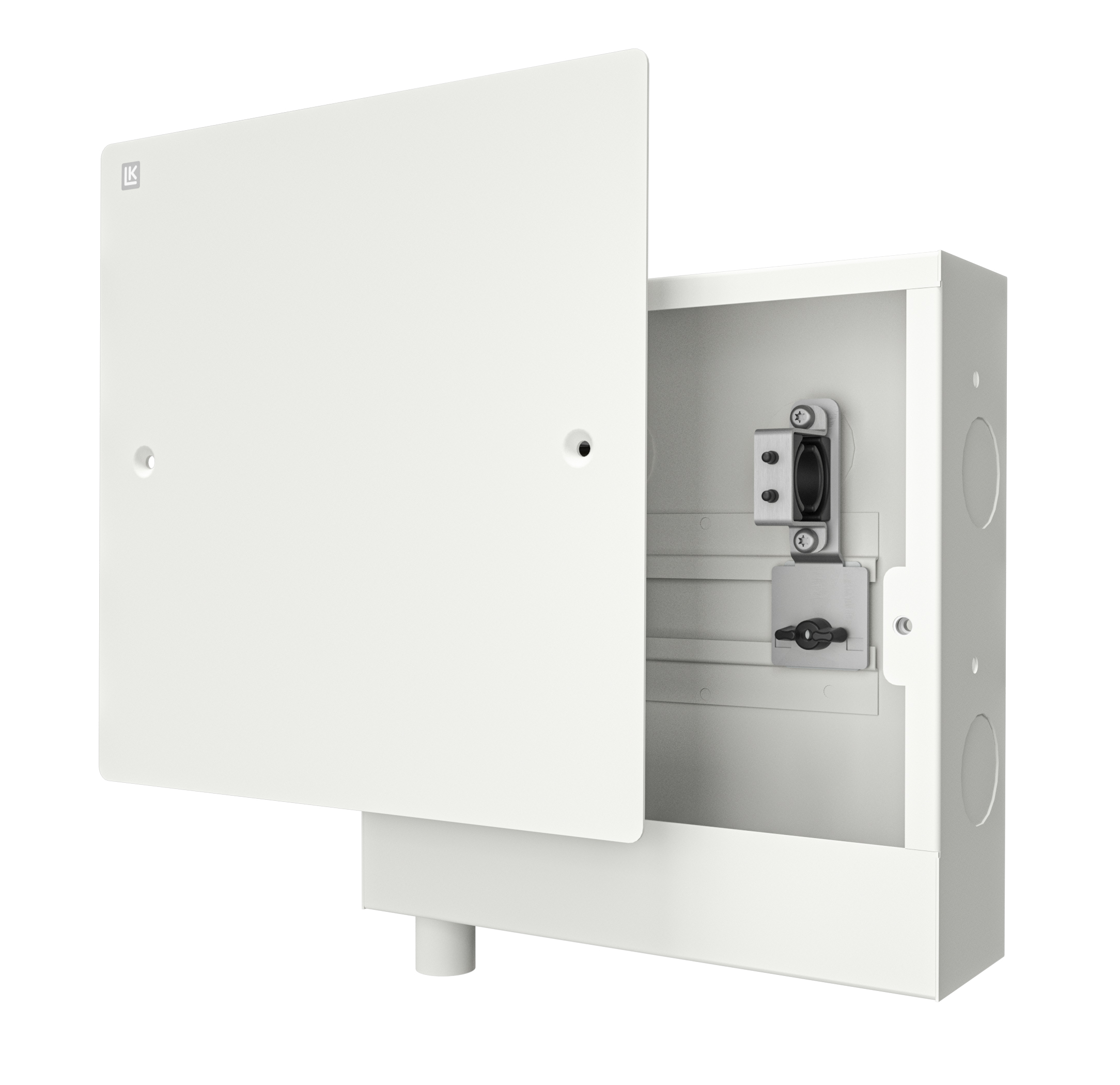

The cabinet is delivered with hatch manufactured from powder coated steel plate, RAL 9016 white.
The cabinet has a watertight base with a 50 mm-high front edge.
The cabinet is supplemented with the necessary pipe inlets, corresponding to the number of sockets used. NOTE: Separate article:
• LK Pipe Inlet 25 conduit, Article no. 187 44 83 is used for bushing in the cabinet with conduit dimension 25.
• LK Pipe Inlet UNI, Article no. 187 44 84 (cut to correct diameter) is used for bushing in the cabinet with conduit dimension 12-34.
