LK Ball Valve H.lever M-thread

LK Ball Valve H.lever M-thread

Ball valve in DZR brass with high neck. Male. M-thread.

Variants
Detailed Information
Documentation
Related Products

Variants

Article	Intended for	Dim.	A mm	H mm	L mm	CO₂-EQ. (Kg)
481 00 25	AX16 - AX20	M26	100	88	55	3.236
481 00 26	AX25 - A32	M40	120	99	70	7.6855
481 00 27	A40	M50	158	108.5	80	12.135
481 00 28	A50	M55	158	114.5	90	18.607
481 00 29	A63 - A75	M70	158	121.5	100	29.933

Intended for	AX16 - AX20
Dim.	M26
A mm	100
H mm	88
L mm	55
CO₂-EQ. (Kg)	3.236
Packaging
Item list

Intended for	AX25 - A32
Dim.	M40
A mm	120
H mm	99
L mm	70
CO₂-EQ. (Kg)	7.6855
Packaging
Item list

Intended for	A40
Dim.	M50
A mm	158
H mm	108.5
L mm	80
CO₂-EQ. (Kg)	12.135
Packaging
Item list

Intended for	A50
Dim.	M55
A mm	158
H mm	114.5
L mm	90
CO₂-EQ. (Kg)	18.607
Packaging
Item list

Intended for	A63 - A75
Dim.	M70
A mm	158
H mm	121.5
L mm	100
CO₂-EQ. (Kg)	29.933
Packaging
Item list

Detailed Information

Description

Ball valve in DZR brass with high neck. Male. M-thread.

Documentation

Product sheet

LK Ball Valve H.lever M-thread

EPD

LK Ball Valve with high neck and M-thread - EPD

Article 481 00 25

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590054962	Box	55	30	115	0.4
32	7331590055112	Case	180	130	60	13.72

Article 481 00 25

Quantity	1
EAN	7331590054962
Packaging	Box
Depth	55
Width	30
Height	115
Weight (kg)	0.4

Quantity	32
EAN	7331590055112
Packaging	Case
Depth	180
Width	130
Height	60
Weight (kg)	13.72

Article 481 00 26

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590054979	Box	70	45	133	0.95
16	7331590055129	Case	190	140	140	15.51

Article 481 00 26

Quantity	1
EAN	7331590054979
Packaging	Box
Depth	70
Width	45
Height	133
Weight (kg)	0.95

Quantity	16
EAN	7331590055129
Packaging	Case
Depth	190
Width	140
Height	140
Weight (kg)	15.51

Article 481 00 27

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590054986	Box	80	58	147	1.5
12	7331590055136	Case	270	180	140	17.38

Article 481 00 27

Quantity	1
EAN	7331590054986
Packaging	Box
Depth	80
Width	58
Height	147
Weight (kg)	1.5

Quantity	12
EAN	7331590055136
Packaging	Case
Depth	270
Width	180
Height	140
Weight (kg)	17.38

Article 481 00 28

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590054993	Box	90	72	170	2.3
16	7331590055143	Case	270	180	140	29.71

Article 481 00 28

Quantity	1
EAN	7331590054993
Packaging	Box
Depth	90
Width	72
Height	170
Weight (kg)	2.3

Quantity	16
EAN	7331590055143
Packaging	Case
Depth	270
Width	180
Height	140
Weight (kg)	29.71

Article 481 00 29

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590055006	Box	100	90	185	3.7
8	7331590055150	Case	270	180	140	22.61

Article 481 00 29

Quantity	1
EAN	7331590055006
Packaging	Box
Depth	100
Width	90
Height	185
Weight (kg)	3.7

Quantity	8
EAN	7331590055150
Packaging	Case
Depth	270
Width	180
Height	140
Weight (kg)	22.61

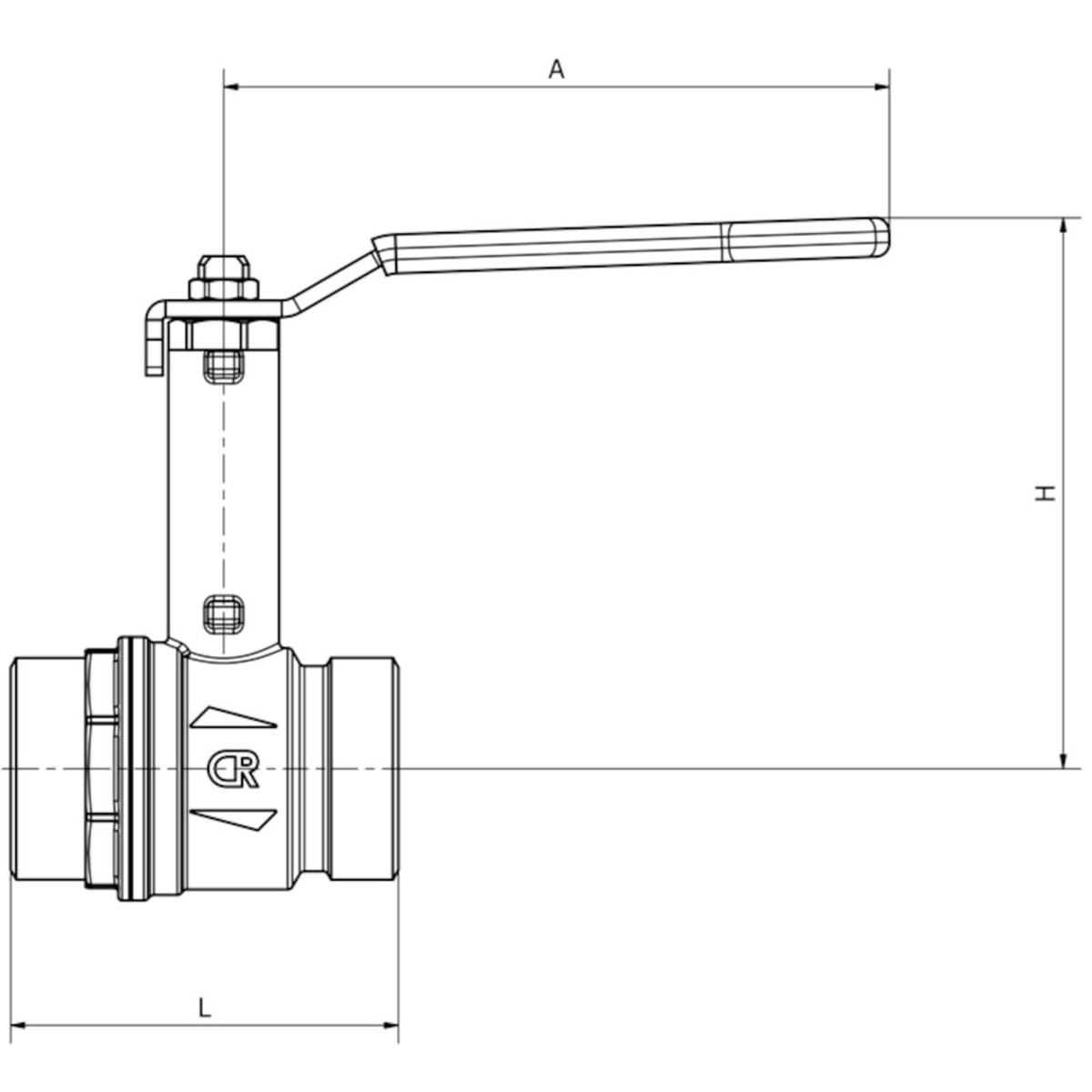

Article	A mm	H mm	L mm
481 00 25	100	88	55
481 00 26	120	99	70
481 00 27	158	108.5	80
481 00 28	158	114.5	90
481 00 29	158	121.5	100

Article 481 00 25

A mm	100
H mm	88
L mm	55

Article 481 00 26

A mm	120
H mm	99
L mm	70

Article 481 00 27

A mm	158
H mm	108.5
L mm	80

Article 481 00 28

A mm	158
H mm	114.5
L mm	90

Article 481 00 29

A mm	158
H mm	121.5
L mm	100
