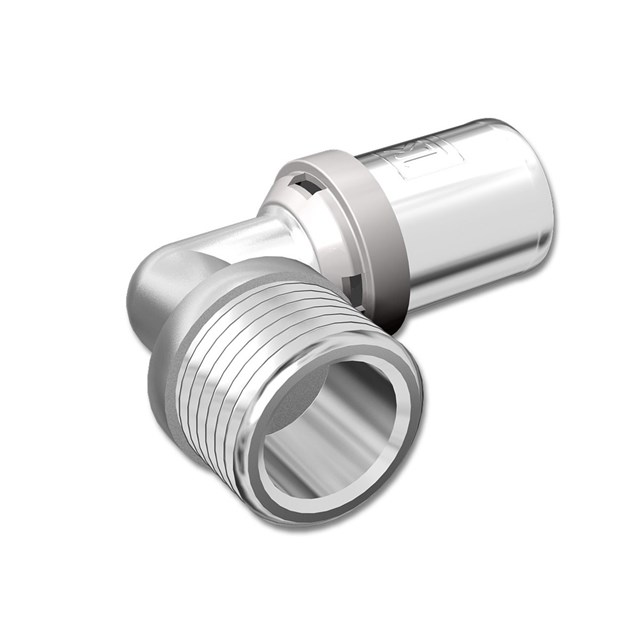

LK PressPex Elbow Fitting 90º male

LK PressPex Elbow Fitting 90º male

Variants
Detailed Information
Documentation

Variants

Filter system solutions:

Article	Type	Dim.	For pipe dim.	C mm	G mm	L mm	System solutions
187 84 53	Grey ring	AX16 x ⅜"	16x2,0	31	11	39.5	Floor Heating, Universal, PEM
187 65 36	Grey ring	AX16 x ½"	16x2,0	34	14	41.5	Floor Heating, Universal, PEM
187 84 54	Grey ring	AX16 x ¾"	16x2,0	35.5	14	44	Floor Heating, Universal, PEM
187 65 37	Grey ring	AX20 x ½"	20x2,5	36	14	42.5	Universal
187 65 38	Grey ring	AX20 x ¾"	20x2,5	38	15	45.5	Universal
187 65 39	Grey ring	AX25 x ¾"	25x3,5	39	15	47	Universal
187 84 55	Grey ring	AX25 x 1"	25x3,5	42	16	50.5	Universal
241 70 46	Red ring	25x2,3/¾" male	25x2,3	42	17	47	Floor Heating, PEM, Ground Heating
241 70 63	Red ring	25x2,3/1" male	25x2,3	42	17	51	Floor Heating, PEM, Ground Heating
187 65 40	Grey ring	A32 x 1" *	32x2,9-3,0	46	16	50.5	Floor Heating, Universal, Ground Heating, PEM
187 84 56	Grey ring	A32 x 1¼"	32x2,9-3,0	49	19	55.5	Floor Heating, Universal, Ground Heating, PEM
187 20 81	Grey ring	A40 x 1¼"	40x3,5	44.5	19.5	57.2	Universal
187 84 57	Grey ring	A40 x 1½"	40x3,5	44.5	19.5	61.7	Universal
187 25 95	Grey ring	A50 x 1¼"	50x4,0	50	19.5	69.7	Universal
187 25 96	Grey ring	A50 x 1½"	50x4,0	50	19.5	73.7	Universal
187 84 58	Grey ring	A50 x 2"	50x4,0	55	24	79	Universal
187 42 15	Grey ring	A63 x 2"	63x4,5	61	24	80.7	Universal

Type	Grey ring
Dim.	AX16 x ⅜"
For pipe dim.	16x2,0
C mm	31
G mm	11
L mm	39.5
System solutions	Floor Heating, Universal, PEM
Packaging
Environment
Item list

Type	Grey ring
Dim.	AX16 x ½"
For pipe dim.	16x2,0
C mm	34
G mm	14
L mm	41.5
System solutions	Floor Heating, Universal, PEM
Packaging
Environment
Item list

Type	Grey ring
Dim.	AX16 x ¾"
For pipe dim.	16x2,0
C mm	35.5
G mm	14
L mm	44
System solutions	Floor Heating, Universal, PEM
Packaging
Environment
Item list

Type	Grey ring
Dim.	AX20 x ½"
For pipe dim.	20x2,5
C mm	36
G mm	14
L mm	42.5
System solutions	Universal
Packaging
Environment
Item list

Type	Grey ring
Dim.	AX20 x ¾"
For pipe dim.	20x2,5
C mm	38
G mm	15
L mm	45.5
System solutions	Universal
Packaging
Environment
Item list

Type	Grey ring
Dim.	AX25 x ¾"
For pipe dim.	25x3,5
C mm	39
G mm	15
L mm	47
System solutions	Universal
Packaging
Environment
Item list

Type	Grey ring
Dim.	AX25 x 1"
For pipe dim.	25x3,5
C mm	42
G mm	16
L mm	50.5
System solutions	Universal
Packaging
Environment
Item list

Type	Red ring
Dim.	25x2,3/¾" male
For pipe dim.	25x2,3
C mm	42
G mm	17
L mm	47
System solutions	Floor Heating, PEM, Ground Heating
Packaging
Environment
Item list

Type	Red ring
Dim.	25x2,3/1" male
For pipe dim.	25x2,3
C mm	42
G mm	17
L mm	51
System solutions	Floor Heating, PEM, Ground Heating
Packaging
Environment
Item list

Type	Grey ring
Dim.	A32 x 1" *
For pipe dim.	32x2,9-3,0
C mm	46
G mm	16
L mm	50.5
System solutions	Floor Heating, Universal, Ground Heating, PEM
Packaging
Environment
Item list

Type	Grey ring
Dim.	A32 x 1¼"
For pipe dim.	32x2,9-3,0
C mm	49
G mm	19
L mm	55.5
System solutions	Floor Heating, Universal, Ground Heating, PEM
Packaging
Environment
Item list

Type	Grey ring
Dim.	A40 x 1¼"
For pipe dim.	40x3,5
C mm	44.5
G mm	19.5
L mm	57.2
System solutions	Universal
Packaging
Environment
Item list

Type	Grey ring
Dim.	A40 x 1½"
For pipe dim.	40x3,5
C mm	44.5
G mm	19.5
L mm	61.7
System solutions	Universal
Packaging
Environment
Item list

Type	Grey ring
Dim.	A50 x 1¼"
For pipe dim.	50x4,0
C mm	50
G mm	19.5
L mm	69.7
System solutions	Universal
Packaging
Environment
Item list

Type	Grey ring
Dim.	A50 x 1½"
For pipe dim.	50x4,0
C mm	50
G mm	19.5
L mm	73.7
System solutions	Universal
Packaging
Environment
Item list

Type	Grey ring
Dim.	A50 x 2"
For pipe dim.	50x4,0
C mm	55
G mm	24
L mm	79
System solutions	Universal
Packaging
Environment
Item list

Type	Grey ring
Dim.	A63 x 2"
For pipe dim.	63x4,5
C mm	61
G mm	24
L mm	80.7
System solutions	Universal
Packaging
Environment
Item list

Detailed Information

Description

Press fitting for connection of PEM hose.
This range includes both PressPex connectors for universal (gray plastic ring) and PV (red plastic ring) corresponding to the pipe dimension of the PEM hose.
Dimension 16 x 2,0 for PEM hose is with gray ring.
Dimension 20 x 2,0 for PEM hose is with red ring.
Dimension 25 x 2,3 for PEM hose is with red ring.
Dimension 32 x 3,0 for PEM hose is with gray ring.

Documentation

Product sheet

LK PressPex Elbow Fitting 90º male

EPD

LK PressPex Fittings & Manifolds - EPD

EPD

LK PressPex Fittings, Straight/Elbow/T-piece & Connection - EPD

EPD

LK PressPex Fittings Straight & Elbow - EPD

Assembly instruction

Assembly instruction_LK PressPex

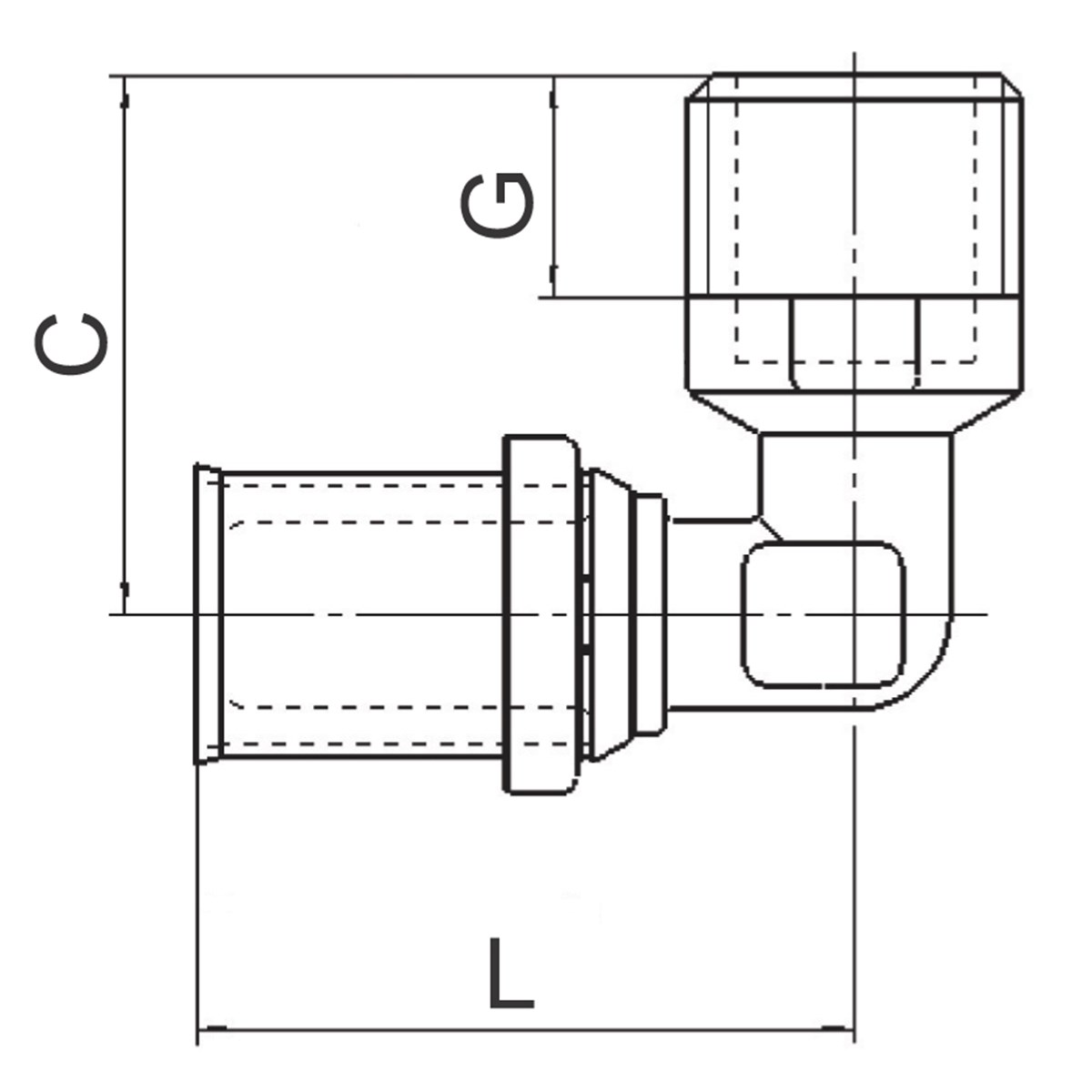

Dimensional drawing

PressPex_skiss_Vinkel utv gg

Article 187 84 53

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590029113	Unpacked	49	42	23	0.05
10	7331590029120	Bag	130	110	25	0.55
200	7331590029137	Case	380	230	190	11.5

Article 187 84 53

Quantity	1
EAN	7331590029113
Packaging	Unpacked
Depth	49
Width	42
Height	23
Weight (kg)	0.05

Quantity	10
EAN	7331590029120
Packaging	Bag
Depth	130
Width	110
Height	25
Weight (kg)	0.55

Quantity	200
EAN	7331590029137
Packaging	Case
Depth	380
Width	230
Height	190
Weight (kg)	11.5

Article 187 65 36

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590013211	Unpacked	68	39	23	0.095
10	7331590013228	Bag	190	130	30	0.95
200	7331590027867	Case	370	230	180	13.7

Article 187 65 36

Quantity	1
EAN	7331590013211
Packaging	Unpacked
Depth	68
Width	39
Height	23
Weight (kg)	0.095

Quantity	10
EAN	7331590013228
Packaging	Bag
Depth	190
Width	130
Height	30
Weight (kg)	0.95

Quantity	200
EAN	7331590027867
Packaging	Case
Depth	370
Width	230
Height	180
Weight (kg)	13.7

Article 187 84 54

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590029144	Unpacked	59	48	26	0.09
10	7331590029151	Bag	180	130	30	0.85
180	7331590029168	Case	380	230	190	15.5

Article 187 84 54

Quantity	1
EAN	7331590029144
Packaging	Unpacked
Depth	59
Width	48
Height	26
Weight (kg)	0.09

Quantity	10
EAN	7331590029151
Packaging	Bag
Depth	180
Width	130
Height	30
Weight (kg)	0.85

Quantity	180
EAN	7331590029168
Packaging	Case
Depth	380
Width	230
Height	190
Weight (kg)	15.5

Article 187 65 37

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590013242	Unpacked	74	47	27	0.101
10	7331590013259	Bag	190	130	130	1.01
200	7331590013266	Case	370	230	180	20.2

Article 187 65 37

Quantity	1
EAN	7331590013242
Packaging	Unpacked
Depth	74
Width	47
Height	27
Weight (kg)	0.101

Quantity	10
EAN	7331590013259
Packaging	Bag
Depth	190
Width	130
Height	130
Weight (kg)	1.01

Quantity	200
EAN	7331590013266
Packaging	Case
Depth	370
Width	230
Height	180
Weight (kg)	20.2

Article 187 65 38

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590013273	Unpacked	84	51	27	0.12
10	7331590013280	Bag	190	130	30	1.2
180	7331590013297	Case	370	230	180	21.6

Article 187 65 38

Quantity	1
EAN	7331590013273
Packaging	Unpacked
Depth	84
Width	51
Height	27
Weight (kg)	0.12

Quantity	10
EAN	7331590013280
Packaging	Bag
Depth	190
Width	130
Height	30
Weight (kg)	1.2

Quantity	180
EAN	7331590013297
Packaging	Case
Depth	370
Width	230
Height	180
Weight (kg)	21.6

Article 187 65 39

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590013303	Unpacked	85	53	32	0.2
5	7331590013310	Bag	190	130	30	1
90	7331590013327	Case	370	230	180	18

Article 187 65 39

Quantity	1
EAN	7331590013303
Packaging	Unpacked
Depth	85
Width	53
Height	32
Weight (kg)	0.2

Quantity	5
EAN	7331590013310
Packaging	Bag
Depth	190
Width	130
Height	30
Weight (kg)	1

Quantity	90
EAN	7331590013327
Packaging	Case
Depth	370
Width	230
Height	180
Weight (kg)	18

Article 187 84 55

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590029175	Unpacked	68	56	33	0.13
5	7331590029182	Bag	170	100	35	0.65
70	7331590029199	Case	380	230	190	9.6

Article 187 84 55

Quantity	1
EAN	7331590029175
Packaging	Unpacked
Depth	68
Width	56
Height	33
Weight (kg)	0.13

Quantity	5
EAN	7331590029182
Packaging	Bag
Depth	170
Width	100
Height	35
Weight (kg)	0.65

Quantity	70
EAN	7331590029199
Packaging	Case
Depth	380
Width	230
Height	190
Weight (kg)	9.6

Article 241 70 46

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590018018	Unpacked	85	53	32	0.21
5	7331590018025	Bag	150	100	40	1.05
90	7331590030690	Case	370	230	180	19.1

Article 241 70 46

Quantity	1
EAN	7331590018018
Packaging	Unpacked
Depth	85
Width	53
Height	32
Weight (kg)	0.21

Quantity	5
EAN	7331590018025
Packaging	Bag
Depth	150
Width	100
Height	40
Weight (kg)	1.05

Quantity	90
EAN	7331590030690
Packaging	Case
Depth	370
Width	230
Height	180
Weight (kg)	19.1

Article 241 70 63

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590030737	Unpacked	85	53	32	0.25
5	7331590030744	Bag	190	130	32	1.25
75	7331590030751	Case	370	230	180	19

Article 241 70 63

Quantity	1
EAN	7331590030737
Packaging	Unpacked
Depth	85
Width	53
Height	32
Weight (kg)	0.25

Quantity	5
EAN	7331590030744
Packaging	Bag
Depth	190
Width	130
Height	32
Weight (kg)	1.25

Quantity	75
EAN	7331590030751
Packaging	Case
Depth	370
Width	230
Height	180
Weight (kg)	19

Article 187 65 40

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590013334	Unpacked	96	59	39	0.245
5	7331590013341	Bag	190	130	30	1.23
60	7331590013358	Case	370	230	180	14.76

Article 187 65 40

Quantity	1
EAN	7331590013334
Packaging	Unpacked
Depth	96
Width	59
Height	39
Weight (kg)	0.245

Quantity	5
EAN	7331590013341
Packaging	Bag
Depth	190
Width	130
Height	30
Weight (kg)	1.23

Quantity	60
EAN	7331590013358
Packaging	Case
Depth	370
Width	230
Height	180
Weight (kg)	14.76

Article 241 70 47

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590018049	Unpacked	96	59	39	0.245
5	7331590018056	Bag	180	100	45	1.225
30	7331590018063	Case	260	200	210	7.5

Article 241 70 47

Quantity	1
EAN	7331590018049
Packaging	Unpacked
Depth	96
Width	59
Height	39
Weight (kg)	0.245

Quantity	5
EAN	7331590018056
Packaging	Bag
Depth	180
Width	100
Height	45
Weight (kg)	1.225

Quantity	30
EAN	7331590018063
Packaging	Case
Depth	260
Width	200
Height	210
Weight (kg)	7.5

Article 187 84 56

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590029205	Unpacked	77	69	42	0.23
5	7331590029212	Bag	200	170	45	1.2
40	7331590029229	Case	380	230	190	9.6

Article 187 84 56

Quantity	1
EAN	7331590029205
Packaging	Unpacked
Depth	77
Width	69
Height	42
Weight (kg)	0.23

Quantity	5
EAN	7331590029212
Packaging	Bag
Depth	200
Width	170
Height	45
Weight (kg)	1.2

Quantity	40
EAN	7331590029229
Packaging	Case
Depth	380
Width	230
Height	190
Weight (kg)	9.6

Article 187 20 81

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590017097	Bag	110	64	47	0.32
45	7331590025436	Case	260	200	210	14.9

Article 187 20 81

Quantity	1
EAN	7331590017097
Packaging	Bag
Depth	110
Width	64
Height	47
Weight (kg)	0.32

Quantity	45
EAN	7331590025436
Packaging	Case
Depth	260
Width	200
Height	210
Weight (kg)	14.9

Article 187 84 57

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590029236	Bag	86	48	48	0.34
48	7331590038849	Case	370	220	180	17.7

Article 187 84 57

Quantity	1
EAN	7331590029236
Packaging	Bag
Depth	86
Width	48
Height	48
Weight (kg)	0.34

Quantity	48
EAN	7331590038849
Packaging	Case
Depth	370
Width	220
Height	180
Weight (kg)	17.7

Article 187 25 95

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590017288	Bag	125	70	57	0.436
32	7331590045489	Case	370	220	180	14.4

Article 187 25 95

Quantity	1
EAN	7331590017288
Packaging	Bag
Depth	125
Width	70
Height	57
Weight (kg)	0.436

Quantity	32
EAN	7331590045489
Packaging	Case
Depth	370
Width	220
Height	180
Weight (kg)	14.4

Article 187 25 96

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590017295	Bag	95	90	60	0.54
32	7331590045496	Case	370	220	180	15.8

Article 187 25 96

Quantity	1
EAN	7331590017295
Packaging	Bag
Depth	95
Width	90
Height	60
Weight (kg)	0.54

Quantity	32
EAN	7331590045496
Packaging	Case
Depth	370
Width	220
Height	180
Weight (kg)	15.8

Article 187 84 58

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590029267	Bag	120	95	60	0.6
20	7331590029274	Case	380	230	190	11.8

Article 187 84 58

Quantity	1
EAN	7331590029267
Packaging	Bag
Depth	120
Width	95
Height	60
Weight (kg)	0.6

Quantity	20
EAN	7331590029274
Packaging	Case
Depth	380
Width	230
Height	190
Weight (kg)	11.8

Article 187 42 15

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590002727	Bag	103	72	100	0.75
20	7331590017592	Case	380	230	180	14.3

Article 187 42 15

Quantity	1
EAN	7331590002727
Packaging	Bag
Depth	103
Width	72
Height	100
Weight (kg)	0.75

Quantity	20
EAN	7331590017592
Packaging	Case
Depth	380
Width	230
Height	180
Weight (kg)	14.3

Article	C mm	G mm	L mm
187 84 53	31	11	39.5
187 65 36	34	14	41.5
187 84 54	35.5	14	44
187 65 37	36	14	42.5
187 65 38	38	15	45.5
187 65 39	39	15	47
187 84 55	42	16	50.5
241 70 46	42	17	47
241 70 63	42	17	51
187 65 40	46	16	50.5
187 84 56	49	19	55.5
187 20 81	44.5	19.5	57.2
187 84 57	44.5	19.5	61.7
187 25 95	50	19.5	69.7
187 25 96	50	19.5	73.7
187 84 58	55	24	79
187 42 15	61	24	80.7

Article 187 84 53

C mm	31
G mm	11
L mm	39.5

Article 187 65 36

C mm	34
G mm	14
L mm	41.5

Article 187 84 54

C mm	35.5
G mm	14
L mm	44

Article 187 65 37

C mm	36
G mm	14
L mm	42.5

Article 187 65 38

C mm	38
G mm	15
L mm	45.5

Article 187 65 39

C mm	39
G mm	15
L mm	47

Article 187 84 55

C mm	42
G mm	16
L mm	50.5

Article 241 70 46

C mm	42
G mm	17
L mm	47

Article 241 70 63

C mm	42
G mm	17
L mm	51

Article 187 65 40

C mm	46
G mm	16
L mm	50.5

Article 187 84 56

C mm	49
G mm	19
L mm	55.5

Article 187 20 81

C mm	44.5
G mm	19.5
L mm	57.2

Article 187 84 57

C mm	44.5
G mm	19.5
L mm	61.7

Article 187 25 95

C mm	50
G mm	19.5
L mm	69.7

Article 187 25 96

C mm	50
G mm	19.5
L mm	73.7

Article 187 84 58

C mm	55
G mm	24
L mm	79

Article 187 42 15

C mm	61
G mm	24
L mm	80.7

SVHC substance	Lead
CO₂-EQ. (Kg)	0.13

SVHC substance	Lead
CO₂-EQ. (Kg)	0.16

SVHC substance	Lead
CO₂-EQ. (Kg)	0.19

SVHC substance	Lead
CO₂-EQ. (Kg)	0.19

SVHC substance	Lead
CO₂-EQ. (Kg)	0.22

LK Systems

LK Armatur

LK Pex

LK Group

Menu

Products

Floor Heating

Universal

Snow Melting

Water Safety System

Hydronic System

Press Tools

Measurement Tools

System solutions

Documentation

Support

About us

LK Group

Products

System solutions

Reference cases

LK Village

Documentation

Support

LK PressPex Elbow Fitting 90º male

Variants

Detailed Information

Documentation
