LK PressPex Elbow Adapter Universal Pipe - CU

LK PressPex Elbow Adapter Universal Pipe - CU

Press fitting for connection of LK PAL and LK PE-X Universal Pipe.

Variants
Detailed Information
Documentation

Variants

Article	Type	Dim.	For pipe dim.	D mm	H mm	L mm
188 25 52	Grey ring	AX16 x CU12	16x2,0	25.5	37	38.5
187 84 65	Grey ring	AX16 x CU15	16x2,0	30	42	38.5
187 84 66	Grey ring	AX20 x CU15	20x2,5	30	45	38.5
187 84 67	Grey ring	AX20 x CU22	20x2,5	30	45	42
188 85 13	Grey ring	AX25 x CU22	25x3,5	30	48	46
188 24 02	Grey ring	AX25 x CU28	25x3,5	30	48	50
188 85 14	Grey ring	A32 x CU28 *	32x2,9-3,0	30	51	48.5

Type	Grey ring
Dim.	AX16 x CU12
For pipe dim.	16x2,0
D mm	25.5
H mm	37
L mm	38.5
Packaging
Environment
Item list

Type	Grey ring
Dim.	AX16 x CU15
For pipe dim.	16x2,0
D mm	30
H mm	42
L mm	38.5
Packaging
Environment
Item list

Type	Grey ring
Dim.	AX20 x CU15
For pipe dim.	20x2,5
D mm	30
H mm	45
L mm	38.5
Packaging
Environment
Item list

Type	Grey ring
Dim.	AX20 x CU22
For pipe dim.	20x2,5
D mm	30
H mm	45
L mm	42
Packaging
Environment
Item list

Type	Grey ring
Dim.	AX25 x CU22
For pipe dim.	25x3,5
D mm	30
H mm	48
L mm	46
Packaging
Environment
Item list

Type	Grey ring
Dim.	AX25 x CU28
For pipe dim.	25x3,5
D mm	30
H mm	48
L mm	50
Packaging
Environment
Item list

Type	Grey ring
Dim.	A32 x CU28 *
For pipe dim.	32x2,9-3,0
D mm	30
H mm	51
L mm	48.5
Packaging
Environment
Item list

Detailed Information

Description

Press fitting for connection of LK PAL and LK PE-X Universal Pipe.

Documentation

Product sheet

LK PressPex Elbow Adapter Universal Pipe - CU

EPD

LK PressPex Fittings & Manifolds - EPD

EPD

LK PressPex Fittings, Straight/Elbow/T-piece & Connection - EPD

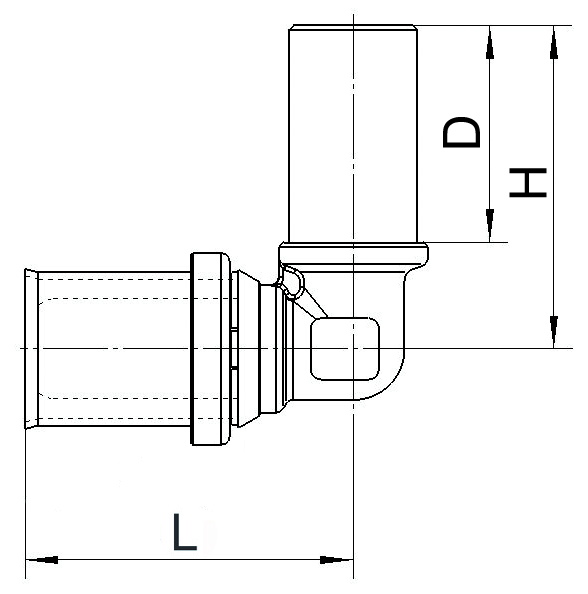

Dimensional drawing

PressPex_skiss_slätände_vinkel

Article 188 25 52

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590055235	Unpacked	50	49	23	0.06
10	7331590055242	Bag	140	120	25	0.66
200	7331590055259	Case	380	230	190	11.8

Article 188 25 52

Quantity	1
EAN	7331590055235
Packaging	Unpacked
Depth	50
Width	49
Height	23
Weight (kg)	0.06

Quantity	10
EAN	7331590055242
Packaging	Bag
Depth	140
Width	120
Height	25
Weight (kg)	0.66

Quantity	200
EAN	7331590055259
Packaging	Case
Depth	380
Width	230
Height	190
Weight (kg)	11.8

Article 187 84 65

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590029823	Unpacked	55	49	23	0.06
10	7331590029830	Bag	140	120	25	0.55
200	7331590029847	Case	380	230	190	11.8

Article 187 84 65

Quantity	1
EAN	7331590029823
Packaging	Unpacked
Depth	55
Width	49
Height	23
Weight (kg)	0.06

Quantity	10
EAN	7331590029830
Packaging	Bag
Depth	140
Width	120
Height	25
Weight (kg)	0.55

Quantity	200
EAN	7331590029847
Packaging	Case
Depth	380
Width	230
Height	190
Weight (kg)	11.8

Article 187 84 66

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590029854	Unpacked	59	49	27	0.07
10	7331590029861	Bag	180	110	30	0.7
200	7331590029878	Case	380	230	190	14.5

Article 187 84 66

Quantity	1
EAN	7331590029854
Packaging	Unpacked
Depth	59
Width	49
Height	27
Weight (kg)	0.07

Quantity	10
EAN	7331590029861
Packaging	Bag
Depth	180
Width	110
Height	30
Weight (kg)	0.7

Quantity	200
EAN	7331590029878
Packaging	Case
Depth	380
Width	230
Height	190
Weight (kg)	14.5

Article 187 84 67

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590029885	Unpacked	62	54	27	0.09
10	7331590029892	Bag	200	130	30	0.9
180	7331590029908	Case	380	230	190	16.4

Article 187 84 67

Quantity	1
EAN	7331590029885
Packaging	Unpacked
Depth	62
Width	54
Height	27
Weight (kg)	0.09

Quantity	10
EAN	7331590029892
Packaging	Bag
Depth	200
Width	130
Height	30
Weight (kg)	0.9

Quantity	180
EAN	7331590029908
Packaging	Case
Depth	380
Width	230
Height	190
Weight (kg)	16.4

Article 188 85 13

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590044192	Unpacked	62	54	27	0.09
5	7331590044208	Bag	200	130	30	0.45
100	7331590044215	Case	375	230	180	9.2

Article 188 85 13

Quantity	1
EAN	7331590044192
Packaging	Unpacked
Depth	62
Width	54
Height	27
Weight (kg)	0.09

Quantity	5
EAN	7331590044208
Packaging	Bag
Depth	200
Width	130
Height	30
Weight (kg)	0.45

Quantity	100
EAN	7331590044215
Packaging	Case
Depth	375
Width	230
Height	180
Weight (kg)	9.2

Article 188 24 02

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590053668	Unpacked	67	56	32	0.1
5	7331590053675	Bag	325	56	32	0.5
80	7331590053682	Case	375	230	180	8.2

Article 188 24 02

Quantity	1
EAN	7331590053668
Packaging	Unpacked
Depth	67
Width	56
Height	32
Weight (kg)	0.1

Quantity	5
EAN	7331590053675
Packaging	Bag
Depth	325
Width	56
Height	32
Weight (kg)	0.5

Quantity	80
EAN	7331590053682
Packaging	Case
Depth	375
Width	230
Height	180
Weight (kg)	8.2

Article 188 85 14

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590044222	Unpacked	70	58	35	0.1
5	7331590044239	Bag	325	58	35	0.5
60	7331590044246	Case	375	230	180	6.2

Article 188 85 14

Quantity	1
EAN	7331590044222
Packaging	Unpacked
Depth	70
Width	58
Height	35
Weight (kg)	0.1

Quantity	5
EAN	7331590044239
Packaging	Bag
Depth	325
Width	58
Height	35
Weight (kg)	0.5

Quantity	60
EAN	7331590044246
Packaging	Case
Depth	375
Width	230
Height	180
Weight (kg)	6.2

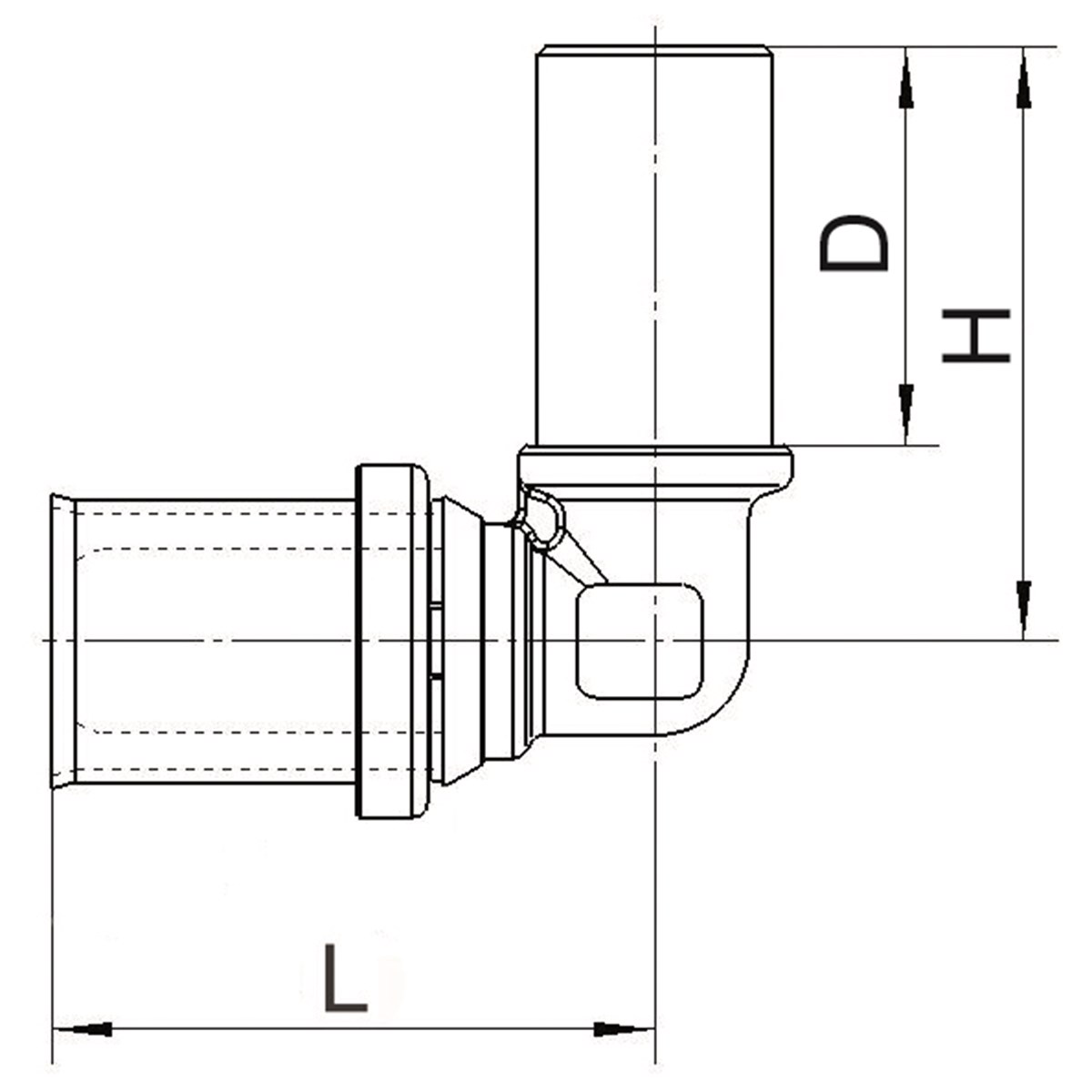

LK PressPex Vinkel Övergång Universalrör - CU

Article	D mm	H mm	L mm
188 25 52	25.5	37	38.5
187 84 65	30	42	38.5
187 84 66	30	45	38.5
187 84 67	30	45	42
188 85 13	30	48	46
188 24 02	30	48	50
188 85 14	30	51	48.5

Article 188 25 52

D mm	25.5
H mm	37
L mm	38.5

Article 187 84 65

D mm	30
H mm	42
L mm	38.5

Article 187 84 66

D mm	30
H mm	45
L mm	38.5

Article 187 84 67

D mm	30
H mm	45
L mm	42

Article 188 85 13

D mm	30
H mm	48
L mm	46

Article 188 24 02

D mm	30
H mm	48
L mm	50

Article 188 85 14

D mm	30
H mm	51
L mm	48.5

SVHC substance	Lead
CO₂-EQ. (Kg)	0.12

SVHC substance	Lead
CO₂-EQ. (Kg)	0.15

SVHC substance	Lead
CO₂-EQ. (Kg)	0.19

SVHC substance	Lead
CO₂-EQ. (Kg)	0.21

SVHC substance	Lead
CO₂-EQ. (Kg)	0.27
