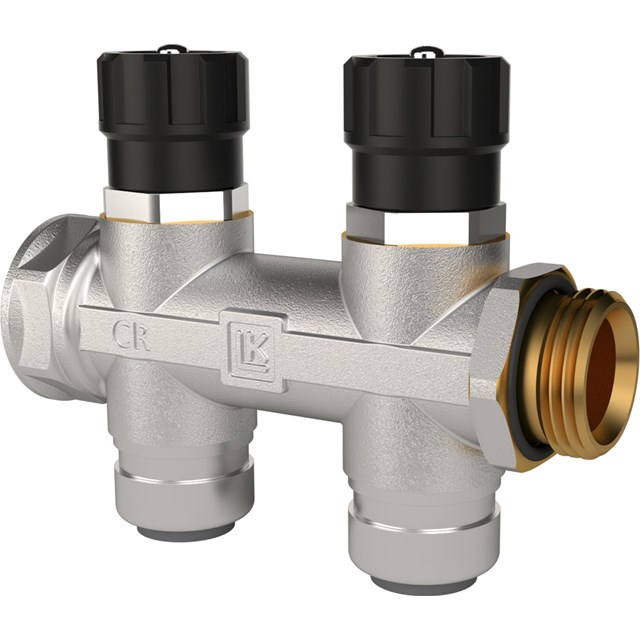

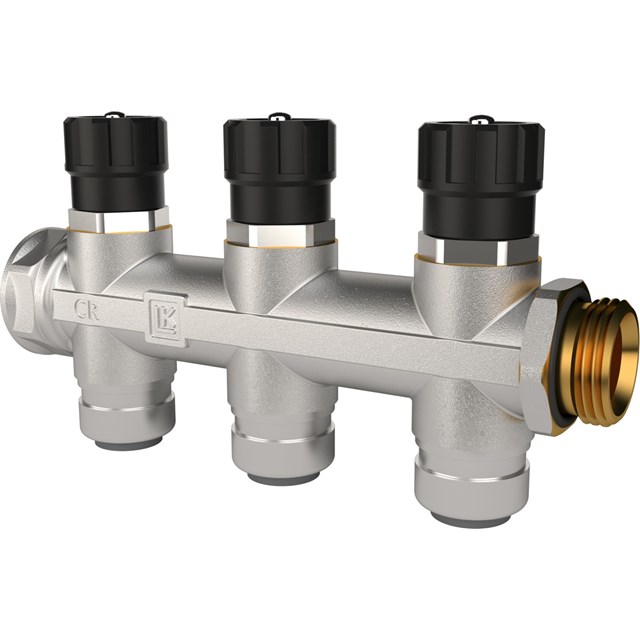

LK Manifold UNI PushFit AX Valve

  • Built-in isolation valves on each outlet

Extension manifold for heating and tap water systems. To be mounted on the wall with LK Manifold Bracket or in a LK Manifold Cabinet UNI. Made from nickel-plated dezincification resistant brass. The manifol...

Read more

LK Fördelare UNI PushFit AX Avst

LK Manifold UNI PushFit AX Valve

  • Variants
  • Detailed Information
  • Documentation
  • Related Products

Variants

Article Designation No. of outlets Packaging Environment Item List
188 25 02 UNI Push 2-AX16 Avst 2 pcs PushFit AX16
188 25 03 UNI Push 3-AX16 Avst 3 pcs PushFit AX16

188 25 02

Designation UNI Push 2-AX16 Avst
No. of outlets 2 pcs PushFit AX16
Packaging
Environment
Item list

188 25 03

Designation UNI Push 3-AX16 Avst
No. of outlets 3 pcs PushFit AX16
Packaging
Environment
Item list

Information about SVHC substances according to REACH Article 33 can be found under the environmental attribute of the article. The CO₂ equivalents representing the total GWP (A1–A3) from our EPD/environmental product declaration are also displayed there.

Detailed Information

Description

Extension manifold for heating and tap water systems. To be mounted on the wall with LK Manifold Bracket or in a LK Manifold Cabinet UNI. Made from nickel-plated dezincification resistant brass.

The manifold has a ¾” connection (ext. and int. threading) for input feed pipe and PE-X 16 mm PushFit connection with c/c 50 mm on the outlets. All types have an O-ring seal on the ext. ¾” threaded side for a feed pipe, which simplifies assembly of 2 manifolds without additional sealing.

The manifold has in-built isolation valves on each outlet. All manifolds are delivered complete with PushFit inserts. Note! The PushFit connections are only intended for LK PE-X Universal pipe.

Documentation

Product sheet

LK Manifold UNI PushFit AX Valve

Assembly instruction

LK PushFit AX

EPD

LK PushFit Fittings and Manifolds - EPD

Dimensional drawing

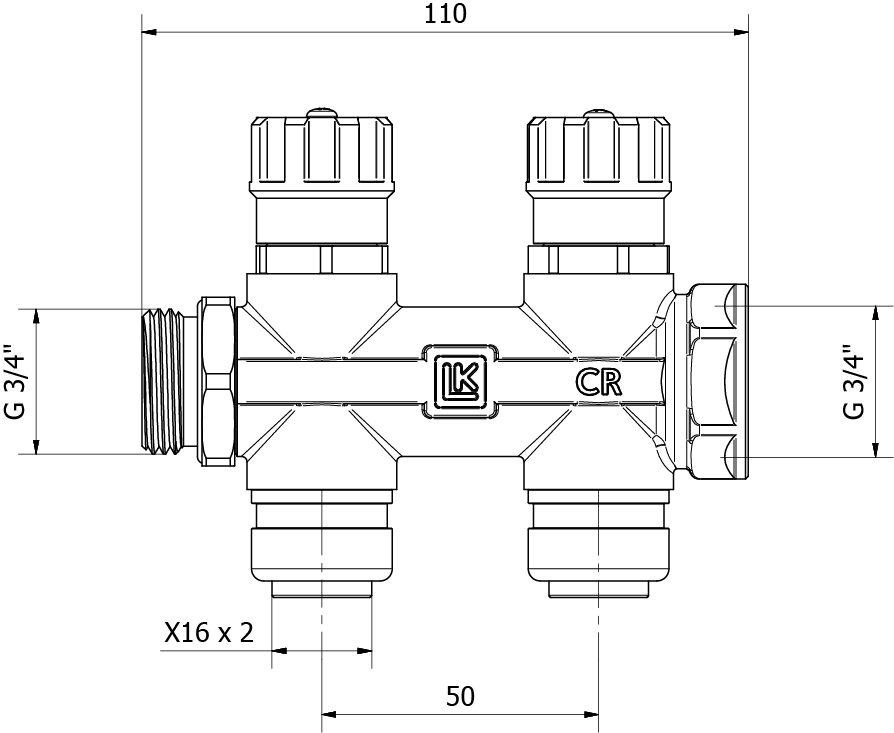

1882311_måttskiss

Dimensional drawing

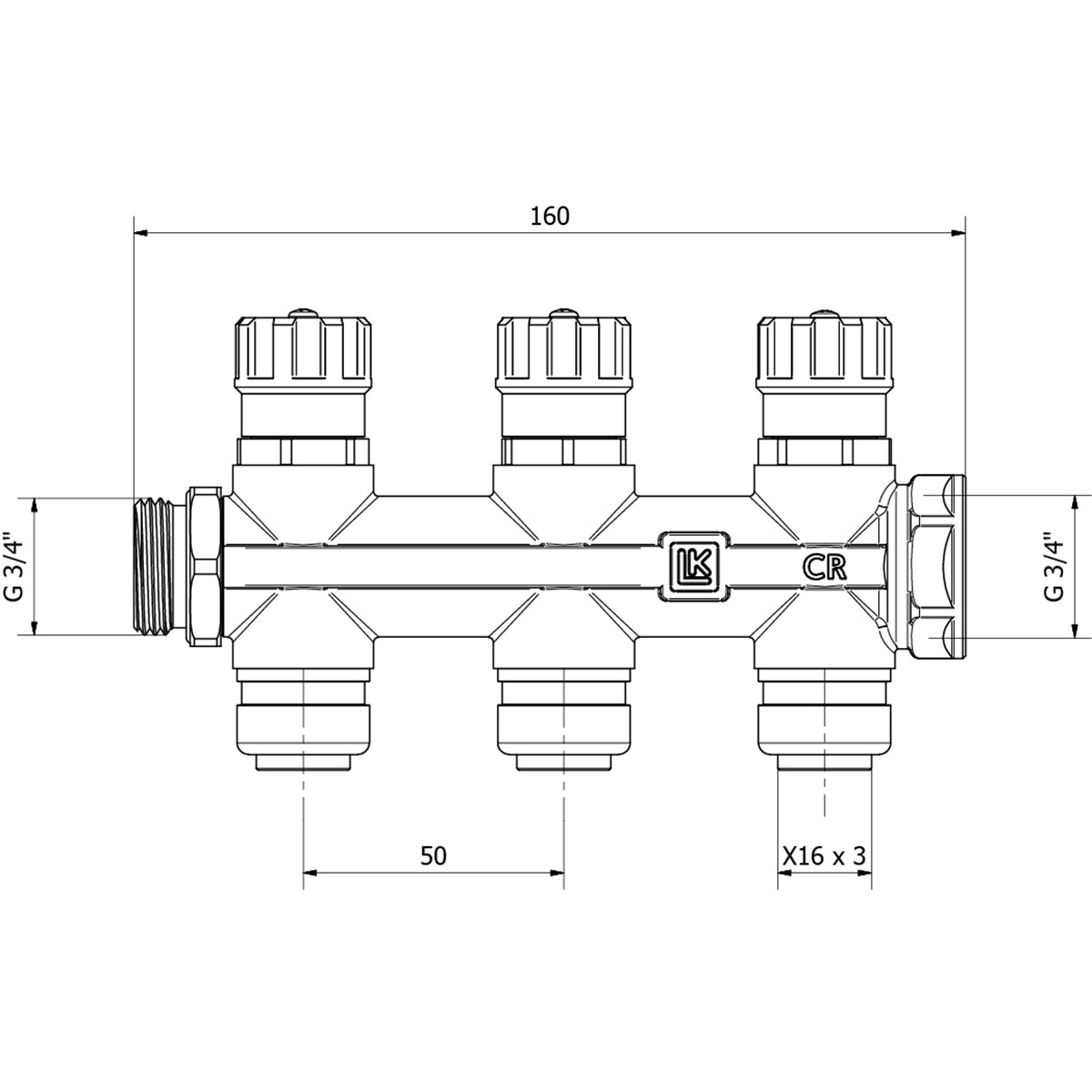

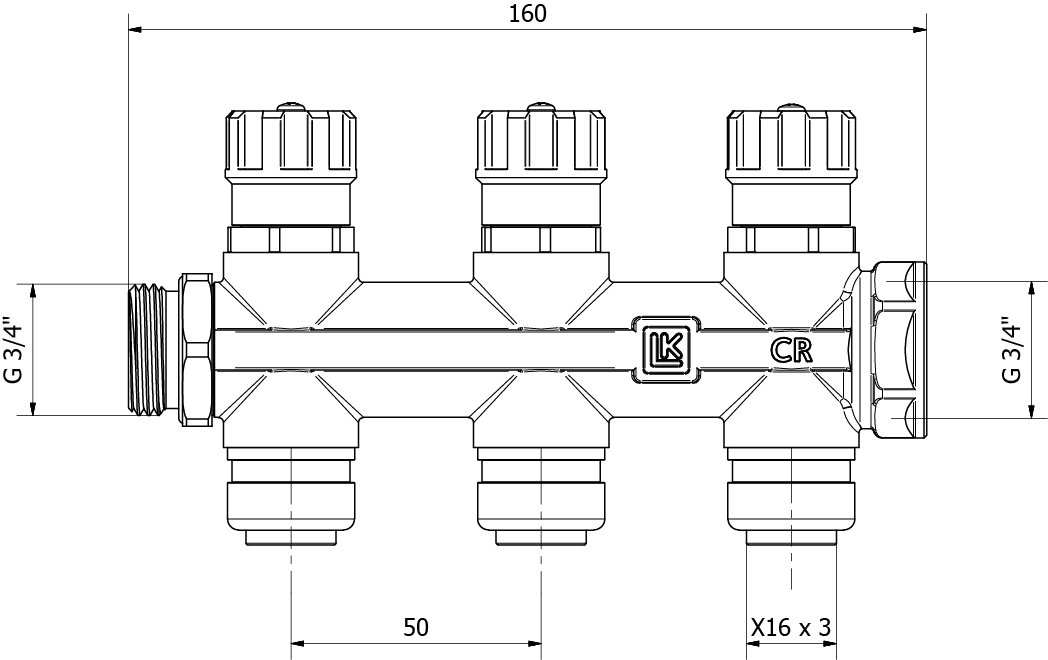

1882312_måttskiss
