LK Fördelare UNI PushFit AX 2+2

LK Manifold UNI PushFit AX 2+2

Extendable manifold for heating and tap water systems. Assembled on the wall in LK Manifold bracket or in LK Manifold Cabinet UNI. Manufactured from dezincification resistant brass, nickel-plated. Manifolds U...

Read more

LK Fördelare UNI PushFit AX 2+2

LK Manifold UNI PushFit AX 2+2

  • Variants
  • Detailed Information
  • Documentation
  • Related Products

Variants

Article No. of outlets Packaging Environment Item List
188 25 01 4 pcs PushFit AX16

188 25 01

No. of outlets 4 pcs PushFit AX16
Packaging
Environment
Item list

Information about SVHC substances according to REACH Article 33 can be found under the environmental attribute of the article. The CO₂ equivalents representing the total GWP (A1–A3) from our EPD/environmental product declaration are also displayed there.

Detailed Information

Description

Extendable manifold for heating and tap water systems. Assembled on the wall in LK Manifold bracket or in LK Manifold Cabinet UNI. Manufactured from dezincification resistant brass, nickel-plated.

Manifolds UNI 2+2-X16 have connection ¾" (male and female thread) for feed pipe and PE-X 16 mm PushFit connection with c/c 50 mm on the outlets.

All types have O-ring seal on the male ¾" side for feed pipe, which facilitates the assembly of 2 manifolds without additional sealing.

The manifold is delivered complete with support sleeves for PushFit. Note! PushFit connections are only intended for LK PE-X Universal Pipe.

Documentation

Product sheet

LK Manifold UNI PushFit AX 2+2

Assembly instruction

EN.29.C.65_LK Manifolds and Accessories

Assembly instruction

LK PushFit AX

EPD

LK PushFit Fittings and Manifolds - EPD

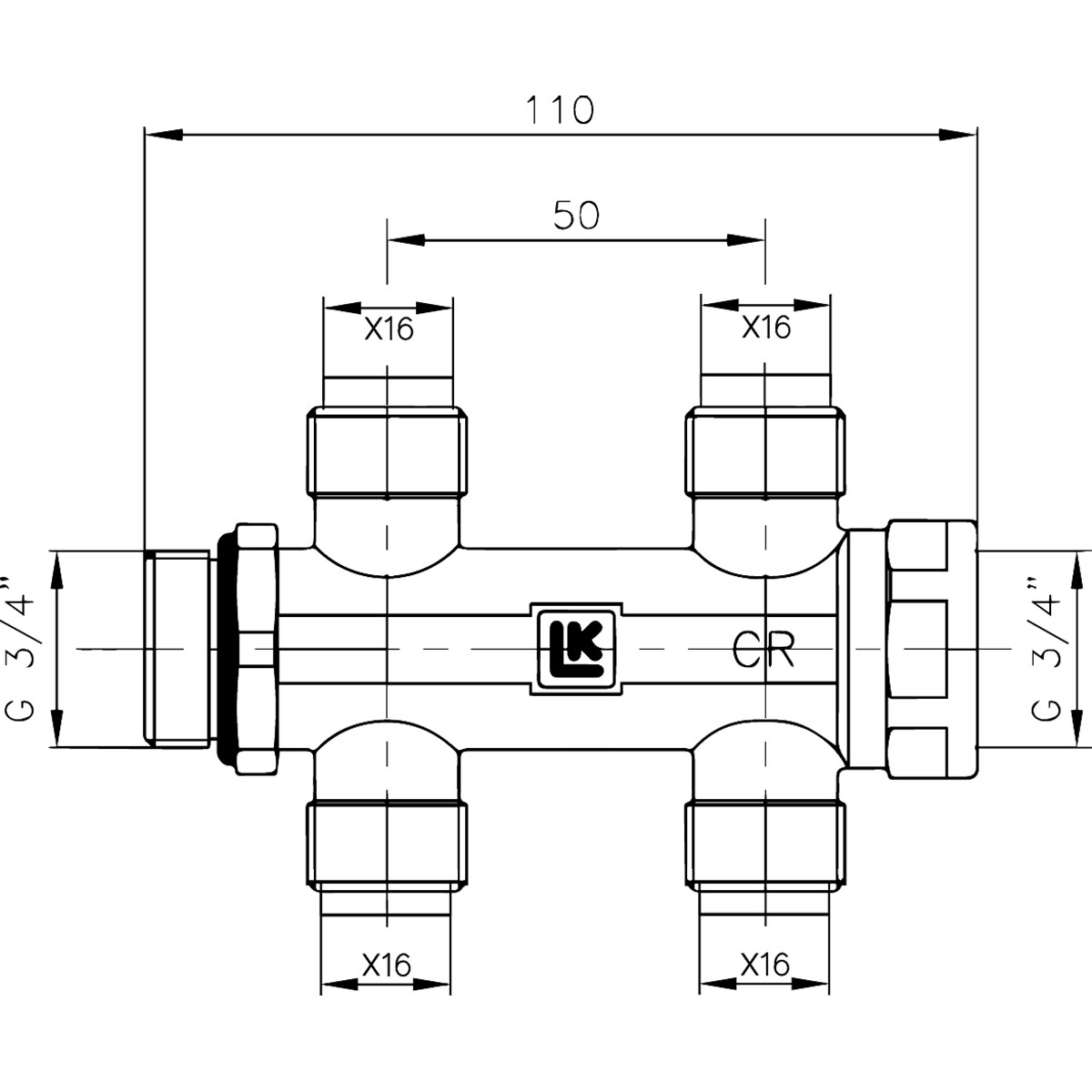

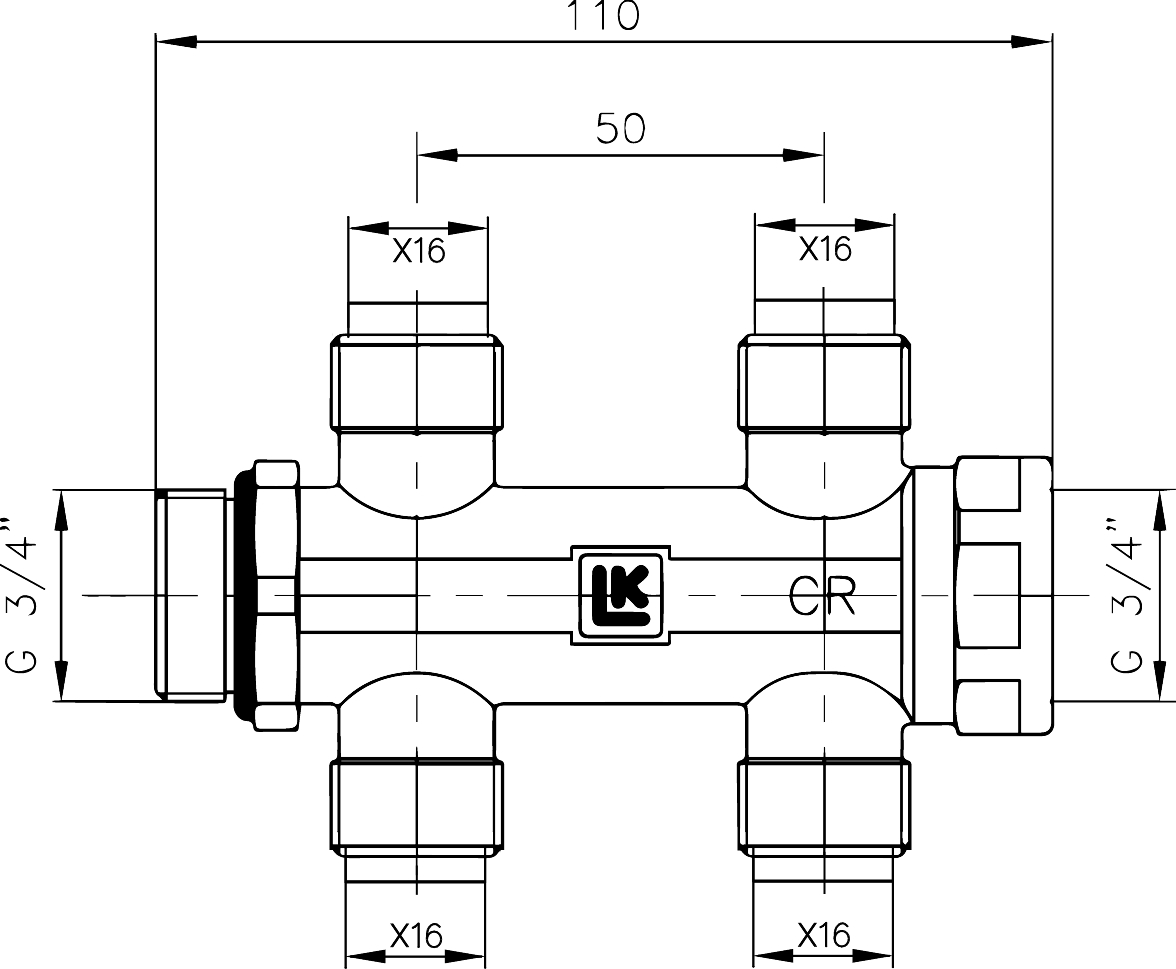

Dimensional drawing

1880644_skiss
