LK PressPex Elbow Press Connection

LK PressPex Elbow Press Connection

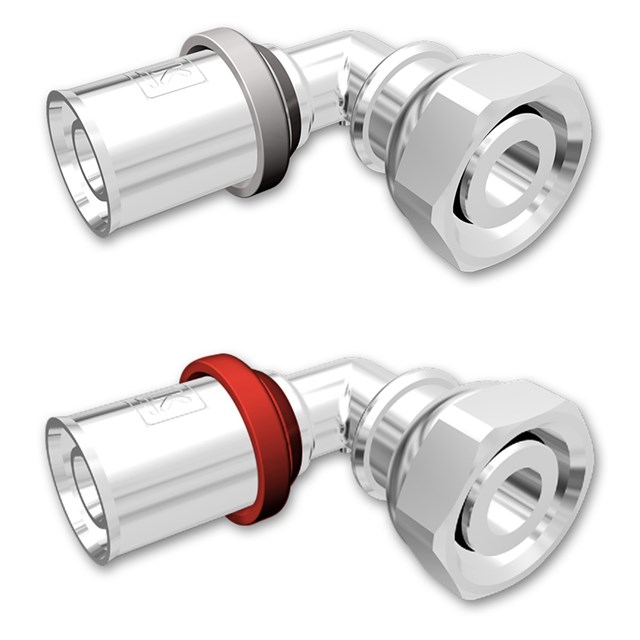

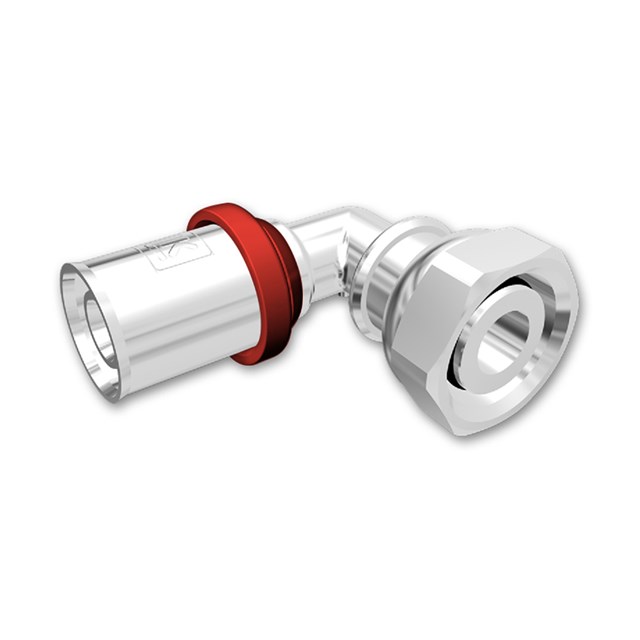

Elbow PressPex fitting with loose nut for connecting LK PE-X and PAL Universal pipe to male EuroCone on e.g. LK Manifold UNI.

Variants
Detailed Information
Documentation
Related Products

Variants

Filter system solutions:

Article	Type	Dim.	For pipe dim.	Nipple conn.	A mm	C mm	G mm	L mm	System solutions
187 84 60	Grey ring	AX16 x ½" *	16x2,0	1/2" Conex/EuroCone	24	36.2	13	41.5	Floor Heating, Universal, PEM
187 84 61	Grey ring	AX16 x ¾"	16x2,0	3/4" EuroCone	30	41	14	44.5	Floor Heating, Universal, PEM
187 84 62	Grey ring	AX20 x ¾"	20x2,5	3/4" EuroCone	30	43	14	44.5	Universal
188 85 01	Grey ring	AX25 x ¾”	25x3,5	3/4" EuroCone	30	33.5	14	46	Universal
188 23 62	Grey ring	AX32 x ¾"	32x2,9-3,0	3/4" EuroCone	30	33	14	45	Floor Heating, Universal, Ground Heating, PEM
243 55 06	Red ring	20x2,0 X 3/4"	20x2,0	3/4" EuroCone	30	31.7	14	44.5	Floor Heating, PEM, Ground Heating
243 55 07	Red ring	25x2,3 X 3/4"	25x2,3	3/4" EuroCone	30	34.2	14	46	Floor Heating, PEM, Ground Heating

Type	Grey ring
Dim.	AX16 x ½" *
For pipe dim.	16x2,0
Nipple conn.	1/2" Conex/EuroCone
A mm	24
C mm	36.2
G mm	13
L mm	41.5
System solutions	Floor Heating, Universal, PEM
Packaging
Environment
Item list

Type	Grey ring
Dim.	AX16 x ¾"
For pipe dim.	16x2,0
Nipple conn.	3/4" EuroCone
A mm	30
C mm	41
G mm	14
L mm	44.5
System solutions	Floor Heating, Universal, PEM
Packaging
Environment
Item list

Type	Grey ring
Dim.	AX20 x ¾"
For pipe dim.	20x2,5
Nipple conn.	3/4" EuroCone
A mm	30
C mm	43
G mm	14
L mm	44.5
System solutions	Universal
Packaging
Environment
Item list

Type	Grey ring
Dim.	AX25 x ¾”
For pipe dim.	25x3,5
Nipple conn.	3/4" EuroCone
A mm	30
C mm	33.5
G mm	14
L mm	46
System solutions	Universal
Packaging
Environment
Item list

Type	Grey ring
Dim.	AX32 x ¾"
For pipe dim.	32x2,9-3,0
Nipple conn.	3/4" EuroCone
A mm	30
C mm	33
G mm	14
L mm	45
System solutions	Floor Heating, Universal, Ground Heating, PEM
Packaging
Environment
Item list

Type	Red ring
Dim.	20x2,0 X 3/4"
For pipe dim.	20x2,0
Nipple conn.	3/4" EuroCone
A mm	30
C mm	31.7
G mm	14
L mm	44.5
System solutions	Floor Heating, PEM, Ground Heating
Packaging
Environment
Item list

Type	Red ring
Dim.	25x2,3 X 3/4"
For pipe dim.	25x2,3
Nipple conn.	3/4" EuroCone
A mm	30
C mm	34.2
G mm	14
L mm	46
System solutions	Floor Heating, PEM, Ground Heating
Packaging
Environment
Item list

Detailed Information

Description

Elbow PressPex fitting with loose nut for connecting LK PE-X and PAL Universal pipe to male EuroCone on e.g. LK Manifold UNI.

Documentation

Product sheet

LK PressPex Elbow Press Connection

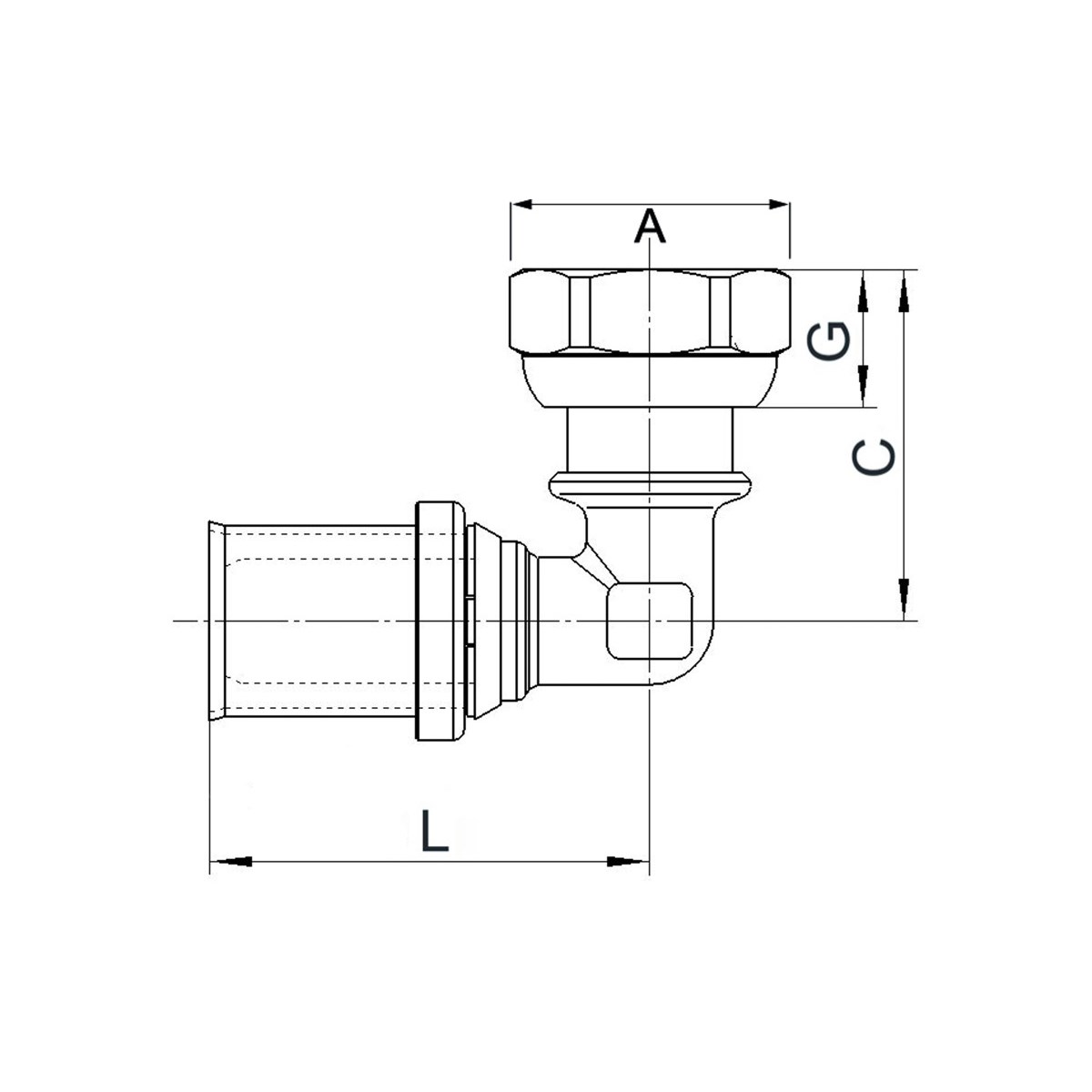

Dimensional drawing

PressPex_skiss_pressansl_vinkel_m_lek

EPD

LK PressPex Fittings & Manifolds - EPD

Article 187 84 60

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590029946	Unpacked	56	47	27	0.08
10	7331590029953	Bag	180	110	25	0.85
200	7331590029960	Case	380	230	190	16.7

Article 187 84 60

Quantity	1
EAN	7331590029946
Packaging	Unpacked
Depth	56
Width	47
Height	27
Weight (kg)	0.08

Quantity	10
EAN	7331590029953
Packaging	Bag
Depth	180
Width	110
Height	25
Weight (kg)	0.85

Quantity	200
EAN	7331590029960
Packaging	Case
Depth	380
Width	230
Height	190
Weight (kg)	16.7

Article 187 84 61

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590029977	Unpacked	63	52	34	0.12
10	7331590029984	Bag	190	130	35	1.2
180	7331590029991	Case	380	230	190	21.5

Article 187 84 61

Quantity	1
EAN	7331590029977
Packaging	Unpacked
Depth	63
Width	52
Height	34
Weight (kg)	0.12

Quantity	10
EAN	7331590029984
Packaging	Bag
Depth	190
Width	130
Height	35
Weight (kg)	1.2

Quantity	180
EAN	7331590029991
Packaging	Case
Depth	380
Width	230
Height	190
Weight (kg)	21.5

Article 187 84 62

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590030003	Unpacked	61	56	34	0.13
10	7331590030010	Bag	190	130	35	1.3
150	7331590030027	Case	380	230	190	19.8

Article 187 84 62

Quantity	1
EAN	7331590030003
Packaging	Unpacked
Depth	61
Width	56
Height	34
Weight (kg)	0.13

Quantity	10
EAN	7331590030010
Packaging	Bag
Depth	190
Width	130
Height	35
Weight (kg)	1.3

Quantity	150
EAN	7331590030027
Packaging	Case
Depth	380
Width	230
Height	190
Weight (kg)	19.8

Article 188 85 01

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590044406	Unpacked	59	47	27	0.08
5	7331590044413	Bag	59	235	27	0.4
160	7331590044420	Case	375	230	180	13

Article 188 85 01

Quantity	1
EAN	7331590044406
Packaging	Unpacked
Depth	59
Width	47
Height	27
Weight (kg)	0.08

Quantity	5
EAN	7331590044413
Packaging	Bag
Depth	59
Width	235
Height	27
Weight (kg)	0.4

Quantity	160
EAN	7331590044420
Packaging	Case
Depth	375
Width	230
Height	180
Weight (kg)	13

Article 188 23 62

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590051893	Unpacked	59	47	27	0.08
5	7331590051879	Bag	59	235	27	0.4
80	7331590051886	Case	375	230	180	13

Article 188 23 62

Quantity	1
EAN	7331590051893
Packaging	Unpacked
Depth	59
Width	47
Height	27
Weight (kg)	0.08

Quantity	5
EAN	7331590051879
Packaging	Bag
Depth	59
Width	235
Height	27
Weight (kg)	0.4

Quantity	80
EAN	7331590051886
Packaging	Case
Depth	375
Width	230
Height	180
Weight (kg)	13

Article 243 55 06

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590061571	Unpacked	61	34	56	0.13
10	7331590061700	Bag	190	130	35	1.3
150	7331590061717	Case	380	230	190	19.8

Article 243 55 06

Quantity	1
EAN	7331590061571
Packaging	Unpacked
Depth	61
Width	34
Height	56
Weight (kg)	0.13

Quantity	10
EAN	7331590061700
Packaging	Bag
Depth	190
Width	130
Height	35
Weight (kg)	1.3

Quantity	150
EAN	7331590061717
Packaging	Case
Depth	380
Width	230
Height	190
Weight (kg)	19.8

Article 243 55 07

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590061588	Unpacked	61	34	56	0.13
5	7331590061724	Bag	235	59	27	0.4
160	7331590061731	Case	375	230	180	13

Article 243 55 07

Quantity	1
EAN	7331590061588
Packaging	Unpacked
Depth	61
Width	34
Height	56
Weight (kg)	0.13

Quantity	5
EAN	7331590061724
Packaging	Bag
Depth	235
Width	59
Height	27
Weight (kg)	0.4

Quantity	160
EAN	7331590061731
Packaging	Case
Depth	375
Width	230
Height	180
Weight (kg)	13

LK PressPex Pressanslutningskoppling vinkel

Article	A mm	C mm	G mm	L mm
187 84 60	24	36.2	13	41.5
187 84 61	30	41	14	44.5
187 84 62	30	43	14	44.5
188 85 01	30	33.5	14	46
188 23 62	30	33	14	45
243 55 06	30	31.7	14	44.5
243 55 07	30	34.2	14	46

Article 187 84 60

A mm	24
C mm	36.2
G mm	13
L mm	41.5

Article 187 84 61

A mm	30
C mm	41
G mm	14
L mm	44.5

Article 187 84 62

A mm	30
C mm	43
G mm	14
L mm	44.5

Article 188 85 01

A mm	30
C mm	33.5
G mm	14
L mm	46

Article 188 23 62

A mm	30
C mm	33
G mm	14
L mm	45

Article 243 55 06

A mm	30
C mm	31.7
G mm	14
L mm	44.5

Article 243 55 07

A mm	30
C mm	34.2
G mm	14
L mm	46

SVHC substance	Lead
CO₂-EQ. (Kg)	0.19

SVHC substance	Lead
CO₂-EQ. (Kg)	0.23

SVHC substance	Lead
CO₂-EQ. (Kg)	0.27

SVHC substance	Lead
CO₂-EQ. (Kg)	0.28

SVHC substance	Lead
CO₂-EQ. (Kg)	0.37
