LK Rumstermostat S2 (NO)

LK Room Thermostat S2 (NO)

Electronic, noiseless room thermostat with Triac output and electronic feedback. Available in models S2 and S2 EXT, where S2 EXT can be connected to LK Remote Sensor ICS/S2 for controlling e.g. floor temperatur...

Read more

LK Rumstermostat S2 (NO)

LK Room Thermostat S2 (NO)

  • Variants
  • Detailed Information
  • Documentation
  • Related Products

Variants

Article Designation Length Width Depth Voltage Note Packaging Item List
243 43 99 S2 112 mm 80mm 16mm 24 V AC -
243 44 01 S2 EXT 112 mm 80mm 16mm 24 V AC Possible connection of LK External Sensor ICS/S2

243 43 99

Designation S2
Length 112 mm
Width 80mm
Depth 16mm
Voltage 24 V AC
Note -
Packaging
Item list

243 44 01

Designation S2 EXT
Length 112 mm
Width 80mm
Depth 16mm
Voltage 24 V AC
Note Possible connection of LK External Sensor ICS/S2
Packaging
Item list

Detailed Information

Description

Electronic, noiseless room thermostat with Triac output and electronic feedback. Available in models S2 and S2 EXT, where S2 EXT can be connected to LK Remote Sensor ICS/S2 for controlling e.g. floor temperature. The thermostat is fitted to a standard electrical wall box or directly above the cables when these exit a wall via electrical conduit. For installation on a standard electrical wall box, use the pattress supplied.


- Voltage 24 V AC (NO Normally open)

- Switching power max 15 W

- Maximum of 5 LK Actuators per room thermostat

- Covers a standard electrical wall box with the pattress supplied

- Temp. range 5–45°C

- Input for temperature reduction -3K

- Can be connected to LK Remote Sensor ICS/S2 for control of floor temperature. Note: Applies to model S2 EXT.

- Colour, rear section RAL 9003, front white/polished ice grey

Documentation

Product sheet

LK Room Thermostat S2 (NO)

Quick guides

Dismount and Re-Mount LK Room Thermostat S2

Assembly instruction

LK Room Thermostat S2, 24 V (NO)

Information sheet

FAQ - S2 Tips /S2 Hints.pdf

Related Products

Accessories

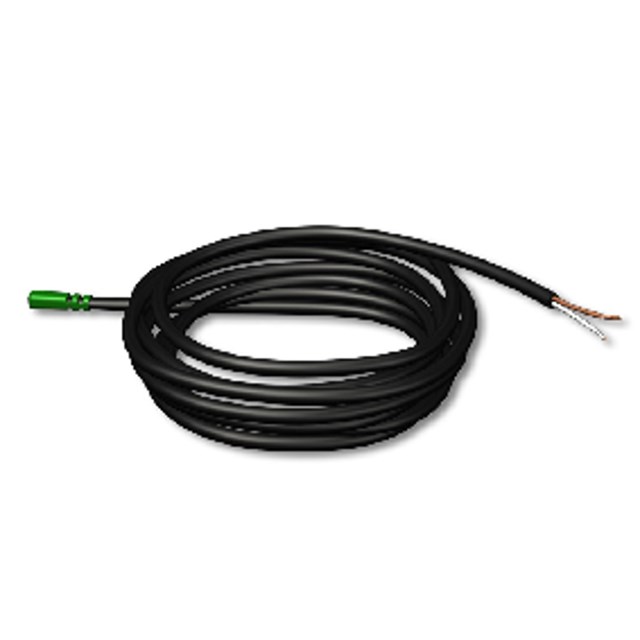

LK External Sensor ICS.2/S2

LK External Sensor ICS.2/S2

LK Extern Sensor ICS/S2 is an accessory for the LK Thermostat ICS.2-RF/W alternatively LK Room Therm...

LK Protection Cover

LK Protection Cover

Transparent protection cover of plexi glass for LK Room Thermostat S1.

Spare Parts

LK Pattress S2

LK Pattress S2

LK Pattress used to expand cover dimensions of the thermostat. Always used when installing against t...

LK Protection Cover

LK Protection Cover

Transparent protection cover of plexi glass for LK Room Thermostat S1.

Intended for

LK Connection Box V.2 – NO

LK Connection Box V.2 – NO

For electrical connection of LK Room Thermostat S1 or LK Room Thermostat S2 24V NO and LK Actuator 2...
