LK Underfloor Heating Pipe PE-Xa

PE-Xa pipe with oxygen barrier for under floor heating. PN 6 bar (dim 12 x 2) PN 10 bar (dim 16 x 2) Maximum operating temperature 70 ºC (short time maximum peak temperature 95 ºC)

Variants
Detailed Information
Documentation
Related Products

Variants

Article	Dim.	Length	Weight (kg)
241 74 98	12 x 2,0	70 m	4.460
241 74 99	12 x 2,0	140 m	8.666
241 75 00	12 x 2,0	600 m	37.140
241 78 28	16 x 2,0	75 m	6.590
241 75 01	16 x 2,0	120 m	10.550
241 75 02	16 x 2,0	160 m	14.070
241 75 03	16 x 2,0	200 m	17.590
271 74 50	16 x 2,0	360 m	31.660
241 78 48	16 x 2,0	500 m	43.970

Dim.	12 x 2,0
Length	70 m
Weight (kg)	4.460
Packaging
Environment
Item list

Dim.	12 x 2,0
Length	140 m
Weight (kg)	8.666
Packaging
Environment
Item list

Dim.	12 x 2,0
Length	600 m
Weight (kg)	37.140
Packaging
Environment
Item list

Dim.	16 x 2,0
Length	75 m
Weight (kg)	6.590
Packaging
Environment
Item list

Dim.	16 x 2,0
Length	120 m
Weight (kg)	10.550
Packaging
Environment
Item list

Dim.	16 x 2,0
Length	160 m
Weight (kg)	14.070
Packaging
Environment
Item list

Dim.	16 x 2,0
Length	200 m
Weight (kg)	17.590
Packaging
Environment
Item list

Dim.	16 x 2,0
Length	360 m
Weight (kg)	31.660
Packaging
Environment
Item list

Dim.	16 x 2,0
Length	500 m
Weight (kg)	43.970
Packaging
Environment
Item list

Detailed Information

Description

PE-Xa pipe with oxygen barrier for under floor heating.
PN 6 bar (dim 12 x 2)
PN 10 bar (dim 16 x 2)
Maximum operating temperature 70 ºC (short time maximum peak temperature 95 ºC)

Material Consumption

Pipe dim 12 x 2,0 pipe distance c/c 150 mm, approx. 7 m/m²
Pipe dim 16 x 2,0 pipe distance c/c 160 mm, approx. 7 m/m²
Pipe dim 16 x 2,0 pipe distance c/c 200 mm, approx. 5,7 m/m²
Pipe dim 16 x 2,0 pipe distance c/c 240 mm, approx. 4,6 m/m²
Pipe dim 16 x 2,0 pipe distance c/c 300 mm, approx. 3,8 m/m²
Pipe dim 16 x 2,0 pipe distance c/c 320 mm, approx. 3,5 m/m²
Pipe dim 16 x 2,0 pipe distance c/c 400 mm, approx. 2,8 m/m² (Industrial premises)

Documentation

Product sheet

LK Underfloor Heating Pipe PE-Xa

EPD

LK Universal & Heating Pipe, PE-Xa/PE-RT/PE-X/RiR - EPD

Article 241 72 49

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590024439	Case	467 mm	467 mm	140 mm	3 kg
20	7331590031376	Pallet	1200 mm	800 mm	1100 mm	80 kg

Article 241 72 49

Quantity	1
EAN	7331590024439
Packaging	Case
Depth	467
Width	467
Height	140
Weight (kg)	3

Quantity	20
EAN	7331590031376
Packaging	Pallet
Depth	1200
Width	800
Height	1100
Weight (kg)	80

Article 241 72 48

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590024422	Case	467 mm	467 mm	70 mm	1.49 kg
40	7331590031369	Pallet	1200 mm	800 mm	1100 mm	80 kg

Article 241 72 48

Quantity	1
EAN	7331590024422
Packaging	Case
Depth	467
Width	467
Height	70
Weight (kg)	1.49

Quantity	40
EAN	7331590031369
Packaging	Pallet
Depth	1200
Width	800
Height	1100
Weight (kg)	80

Article 241 74 98

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590043256	Case	800 mm	800 mm	100 mm	5 kg
12	7331590000013	Pallet	1200 mm	800 mm	950 mm	80 kg

Article 241 74 98

Quantity	1
EAN	7331590043256
Packaging	Case
Depth	800
Width	800
Height	100
Weight (kg)	5

Quantity	12
EAN	7331590000013
Packaging	Pallet
Depth	1200
Width	800
Height	950
Weight (kg)	80

Article 241 74 99

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590000020	Case	800 mm	800 mm	90 mm	11.2 kg
12	7331590000037	Pallet	800 mm	800 mm	1000 mm	155 kg

Article 241 74 99

Quantity	1
EAN	7331590000020
Packaging	Case
Depth	800
Width	800
Height	90
Weight (kg)	11.2

Quantity	12
EAN	7331590000037
Packaging	Pallet
Depth	800
Width	800
Height	1000
Weight (kg)	155

Article 241 75 00

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590000044	Case	800 mm	800 mm	464 mm	48 kg
3	7331590000051	Pallet	800 mm	1200 mm	1000 mm	165 kg

Article 241 75 00

Quantity	1
EAN	7331590000044
Packaging	Case
Depth	800
Width	800
Height	464
Weight (kg)	48

Quantity	3
EAN	7331590000051
Packaging	Pallet
Depth	800
Width	1200
Height	1000
Weight (kg)	165

Article 241 78 28

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590057819	Case	800 mm	800 mm	170 mm	8.2 kg
12	7331590057826	Pallet	1200 mm	800 mm	960 mm	118.5 kg

Article 241 78 28

Quantity	1
EAN	7331590057819
Packaging	Case
Depth	800
Width	800
Height	170
Weight (kg)	8.2

Quantity	12
EAN	7331590057826
Packaging	Pallet
Depth	1200
Width	800
Height	960
Weight (kg)	118.5

Article 241 75 01

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590057833	Case	800 mm	800 mm	170 mm	11.4 kg
9	7331590057840	Pallet	1200 mm	800 mm	960 mm	130 kg

Article 241 75 01

Quantity	1
EAN	7331590057833
Packaging	Case
Depth	800
Width	800
Height	170
Weight (kg)	11.4

Quantity	9
EAN	7331590057840
Packaging	Pallet
Depth	1200
Width	800
Height	960
Weight (kg)	130

Article 241 75 02

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590057857	Case	800 mm	800 mm	180 mm	15.1 kg
6	7331590057864	Pallet	1200 mm	800 mm	960 mm	117 kg

Article 241 75 02

Quantity	1
EAN	7331590057857
Packaging	Case
Depth	800
Width	800
Height	180
Weight (kg)	15.1

Quantity	6
EAN	7331590057864
Packaging	Pallet
Depth	1200
Width	800
Height	960
Weight (kg)	117

Article 241 75 03

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590057871	Case	800 mm	800 mm	205 mm	18.9 kg
6	7331590057888	Pallet	1200 mm	800 mm	960 mm	139 kg

Article 241 75 03

Quantity	1
EAN	7331590057871
Packaging	Case
Depth	800
Width	800
Height	205
Weight (kg)	18.9

Quantity	6
EAN	7331590057888
Packaging	Pallet
Depth	1200
Width	800
Height	960
Weight (kg)	139

Article 271 74 50

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590057918	Case	800 mm	800 mm	290 mm	32.7 kg
4	7331590057925	Pallet	1200 mm	800 mm	937 mm	153.8 kg

Article 271 74 50

Quantity	1
EAN	7331590057918
Packaging	Case
Depth	800
Width	800
Height	290
Weight (kg)	32.7

Quantity	4
EAN	7331590057925
Packaging	Pallet
Depth	1200
Width	800
Height	937
Weight (kg)	153.8

Article 241 78 48

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590057895	Case	800 mm	800 mm	400 mm	46.5 kg
3	7331590057901	Pallet	1200 mm	800 mm	960 mm	166 kg

Article 241 78 48

Quantity	1
EAN	7331590057895
Packaging	Case
Depth	800
Width	800
Height	400
Weight (kg)	46.5

Quantity	3
EAN	7331590057901
Packaging	Pallet
Depth	1200
Width	800
Height	960
Weight (kg)	166

LK Systems

LK Armatur

LK Pex

LK Group

Menu

Products

Floor Heating

Universal

Snow Melting

Water Safety System

Hydronic System

Press Tools

Prefabricated solutions

Measurement Tools

System solutions

Documentation

Support

About us

LK Group

Products

System solutions

Reference cases

LK Village

Documentation

Support

LK Underfloor Heating Pipe PE-Xa

Variants

Detailed Information

Documentation

Related Products

Accessories

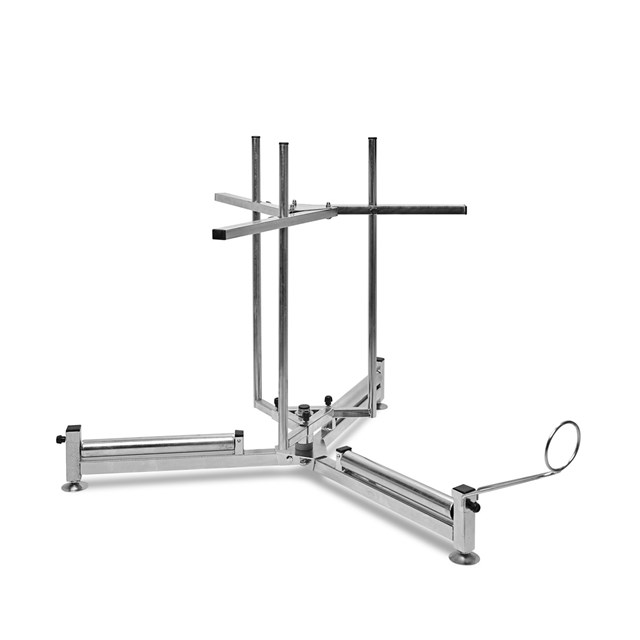

LK Pipe Decoiler Compact
