LK Minifördelare

LK Mini Manifold

Nickel plated manifold for connection to LK Minishunt M60n. The manifolds have integrated lock-shield valves for balancing the flow of the floor heating loops. The manifolds are available for connecting from 2 ...

Read more

LK Minifördelare

LK Mini Manifold

  • Variants
  • Detailed Information
  • Documentation
  • Related Products

Variants

Article Dim. pipe Length No. of circuits Weight (kg) Packaging Environment Item List
241 74 75 12 195 mm 2 1.393
241 74 76 12 230 mm 3 1.865
241 74 77 12 265 mm 4 2.341
241 74 78 16 195 mm 2 1.382
241 74 79 16 230 mm 3 1.831
241 74 80 16 265 mm 4 2.393
241 77 27 20 195 mm 2 1.472
241 77 28 20 230 mm 3 2.083
241 77 29 20 265 mm 4 2.450

241 74 75

Dim. pipe 12
Length 195 mm
No. of circuits 2
Weight (kg) 1.393
Packaging
Environment
Item list

241 74 76

Dim. pipe 12
Length 230 mm
No. of circuits 3
Weight (kg) 1.865
Packaging
Environment
Item list

241 74 77

Dim. pipe 12
Length 265 mm
No. of circuits 4
Weight (kg) 2.341
Packaging
Environment
Item list

241 74 78

Dim. pipe 16
Length 195 mm
No. of circuits 2
Weight (kg) 1.382
Packaging
Environment
Item list

241 74 79

Dim. pipe 16
Length 230 mm
No. of circuits 3
Weight (kg) 1.831
Packaging
Environment
Item list

241 74 80

Dim. pipe 16
Length 265 mm
No. of circuits 4
Weight (kg) 2.393
Packaging
Environment
Item list

241 77 27

Dim. pipe 20
Length 195 mm
No. of circuits 2
Weight (kg) 1.472
Packaging
Environment
Item list

241 77 28

Dim. pipe 20
Length 230 mm
No. of circuits 3
Weight (kg) 2.083
Packaging
Environment
Item list

241 77 29

Dim. pipe 20
Length 265 mm
No. of circuits 4
Weight (kg) 2.450
Packaging
Environment
Item list

Information about SVHC substances according to REACH Article 33 can be found under the environmental attribute of the article. The CO₂ equivalents representing the total GWP (A1–A3) from our EPD/environmental product declaration are also displayed there.

Detailed Information

Description

Nickel plated manifold for connection to LK Minishunt M60n. The manifolds have integrated lock-shield valves for balancing the flow of the floor heating loops. The manifolds are available for connecting from 2 to 4 under floor heating loops. Delivered incl. angle fittings ½" male thread and necessary connection couplings for LK PE-X pipe dim 12 mm, PE-X and PAL dim 16 mm or PE-X dim 20 mm. Mounted on LK Minishunt M60n the building height will increase by approx 90 mm.

Documentation

Product sheet

LK Mini Manifold

EPD

LK Manifolds UNI & LK Mini Manifolds - EPD

Assembly instruction

LK Mini Manifold

Related Products

Accessories

LK Cap

LK Cap

LK Cap is complete with gasket for plugging unused connections on manifolds etc. For dim 1/2" and 3...

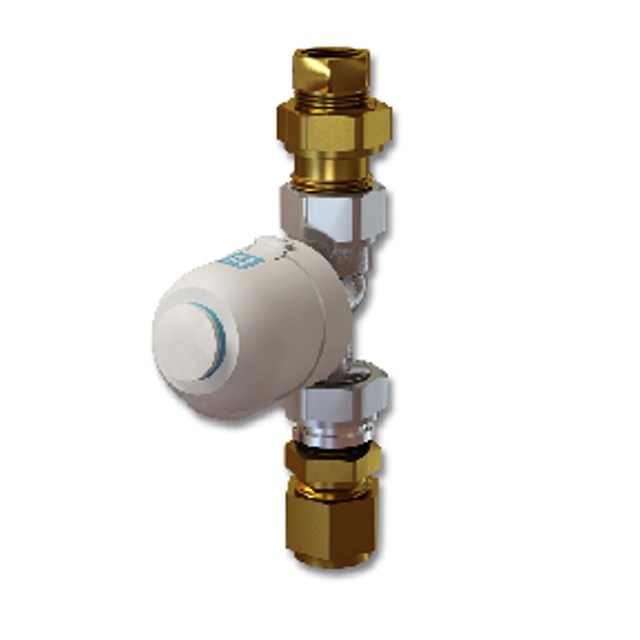

LK Thermostat Valve Kit Mini (NO)

LK Thermostat Valve Kit Mini (NO)

LK Thermostat Valve Kit is used for the individual control of respective floor heating circuit on th...

LK Joint Nipple

LK Joint Nipple

For joining LK Manifold RF/LK Mini Manifold.

Intended for

LK Minishunt M60n

LK Minishunt M60n

Thermostat controlled shunt unit for use when smaller under floor heating systems are to be connecte...
