LK CombiBoard EPS Feed
LK CombiBoard EPS Feed
LK CombiBoard EPS Feed
LK CombiBoard EPS Feed

New

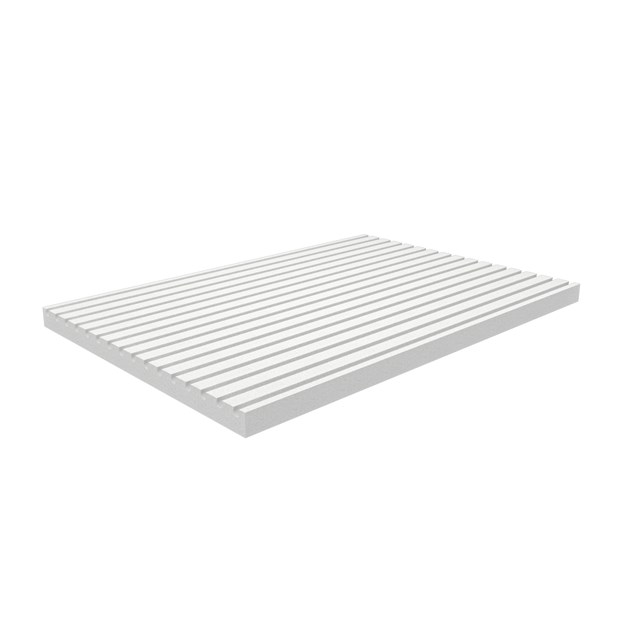

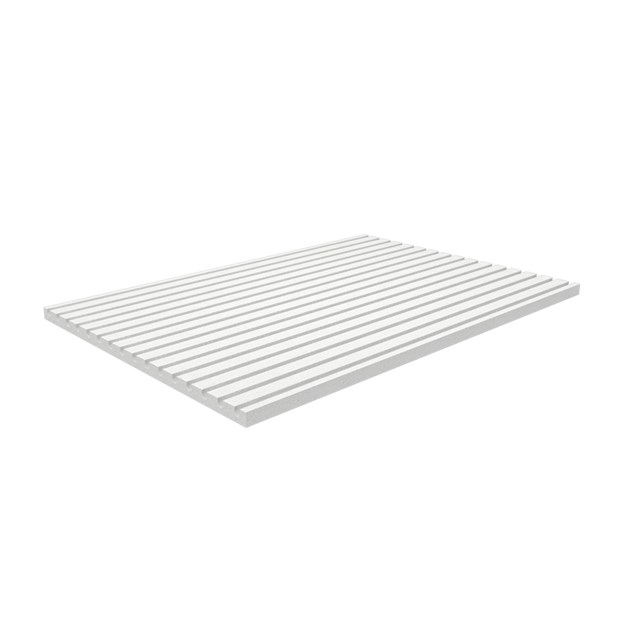

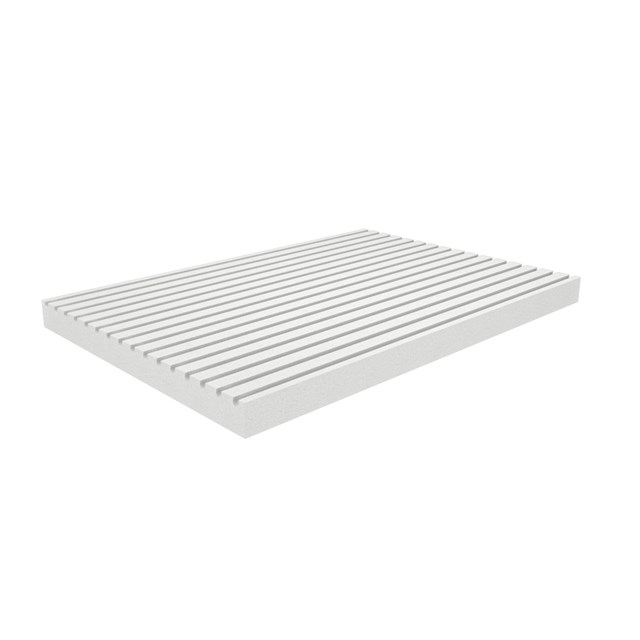

LK CombiBoard EPS Feed

LK CombiBoard EPS Feed is intended for use when underfloor heating pipes between the underfloor heating manifold and individual rooms need to be installed with close pipe spacing. As LK CombiBoard EPS Feed is n...

Read more

LK CombiBoard EPS Feed

LK CombiBoard EPS Feed

  • Variants
  • Detailed Information
  • Documentation
  • Related Products

Variants

Article For pipe dim. Length Width Height Area (m²) Quality class Note Weight (kg) Packaging Item List
241 05 00 16 mm 1175 mm 800mm 30 0.94 S300 50 c / c 0.92
241 05 01 16 mm 1175 mm 800mm 50 0.94 S300 50 c / c 1.67
241 05 02 16 mm 1175 mm 800mm 70 0.94 S300 50 c / c 2.80

241 05 00

For pipe dim. 16 mm
Length 1175 mm
Width 800mm
Height 30
Area (m²) 0.94
Quality class S300
Note 50 c / c
Weight (kg) 0.92
Packaging
Item list

241 05 01

For pipe dim. 16 mm
Length 1175 mm
Width 800mm
Height 50
Area (m²) 0.94
Quality class S300
Note 50 c / c
Weight (kg) 1.67
Packaging
Item list

241 05 02

For pipe dim. 16 mm
Length 1175 mm
Width 800mm
Height 70
Area (m²) 0.94
Quality class S300
Note 50 c / c
Weight (kg) 2.80
Packaging
Item list

Detailed Information

Description

LK CombiBoard EPS Feed is intended for use when underfloor heating pipes between the underfloor heating manifold and individual rooms need to be installed with close pipe spacing. As LK CombiBoard EPS Feed is not equipped with a laminated heat distribution layer, heat transfer from the supply run is reduced.

The board is manufactured from EPS, class S300. Groove spacing c/c 50 mm – for 16 mm pipes.

Supplement with adhesive or screws for fixing to the floor structure. Refer to the installation instructions for LK CombiBoard EPS for information on recommended suppliers and products for fixing to the floor structure.

Documentation

Product sheet

LK CombiBoard EPS Feed

Assembly instruction

EN.33.C.221_LK CombiBoard EPS 1418305070

Related Products

Accessories

LK Aluminium Tape

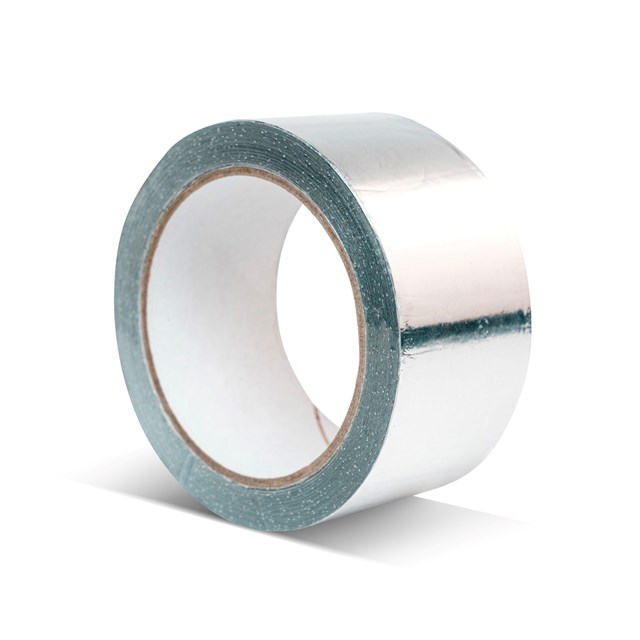

LK Aluminium Tape

LK Aluminium Tape is used to assist installation of LK CombiBoard EPS. LK Aluminium Tape is used as...

Intended for

LK CombiBoard EPS

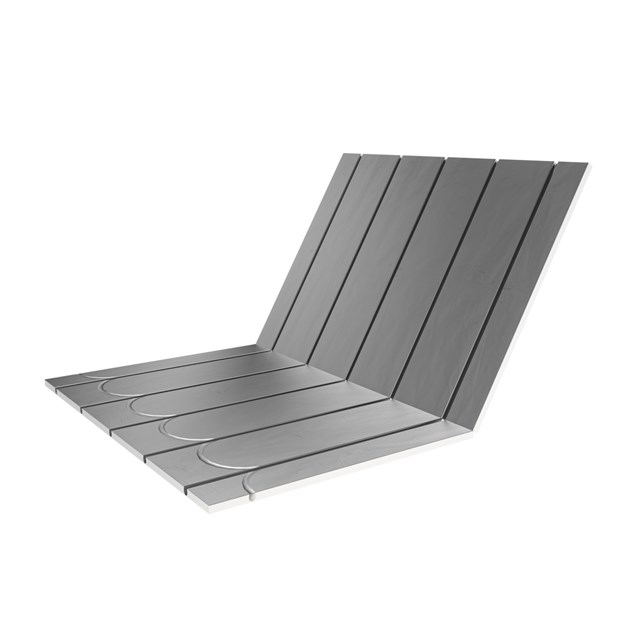

LK CombiBoard EPS

LK Floor Heating in design with LK CombiBoard EPS for laying on load-bearing floor constructions. Th...
