LK Systemskiva 30

LK System Plate 30

Insulation plate of EPS, 30 mm thick with castelated pipe holders for LK Universal pipe Ø 16 mm. Pipe spacing ability c/c 80, 160, 240, 320 mm ect. Short time lasting compression strengths, 200kPa (S200) Lo...

Read more

LK Systemskiva 30

LK System Plate 30

  • Variants
  • Detailed Information
  • Documentation
  • Related Products

Variants

Article For pipe dim. Length Width Height Area (m²) Weight (kg) Packaging Item List
241 75 10 16 mm 800 mm 640 mm 30 10.2 12

241 75 10

For pipe dim. 16 mm
Length 800 mm
Width 640 mm
Height 30
Area (m²) 10.2
Weight (kg) 12
Packaging
Item list

Detailed Information

Description

Insulation plate of EPS, 30 mm thick with castelated pipe holders for LK Universal pipe Ø 16 mm.

Pipe spacing ability c/c 80, 160, 240, 320 mm ect.

Short time lasting compression strengths, 200kPa (S200)
Long lasting compression strengths 65 kPa (3% compr. in 50 years).
Thermal conductivity capability 0,033 W/m ºC.
Installation height, including System Board 30 and excluding the top floor, is 85 mm at the lowest

Material Consumption

  • Approx. 1 package/10 m²

Documentation

Product sheet

LK System Plate 30

Assembly instruction

Embedding in screed with LK System Board 30

Related Products

Accessories

LK Staple Gun and LK Staples 3D Premium

LK Staple Gun and LK Staples 3D Premium

LK Staple Gun 3D Premium is used together with LK Staples 3D Premium for attachment of LK Under Floo...

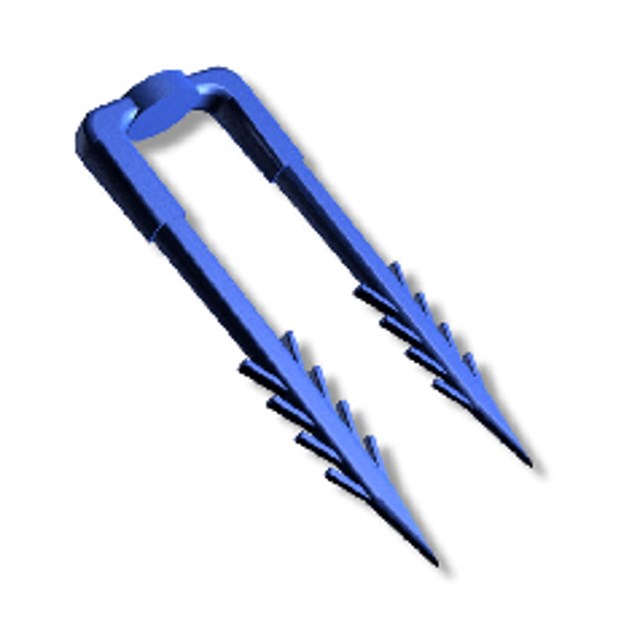

LK Pipe Holder
