LK Hatch HIDDEN

LK Hatch HIDDEN for manifold cabinets GV and UNI mounted built into the wall. Frame with hatch
which has plaster which can be wallpapered or painted in the same color as the wall and becomes a natural
part of the rest of the interior. The hatch has a small grip at the top which is used to open the hatch.
A wall plate of at least 13 mm is required and the cabinet must be mounted 5 mm inside the rule for
the frame to fit, see assembly instructions. When LK Manifold UNI-Valve is installed in
the cabinet, the cabinet must be mounted 10 mm inside the rule and the number of connections will be reduced.
Should not be installed in rooms with a waterproof layer on the wall.
Made of 1 mm powder-coated galvanized steel sheet, white color RAL9016.

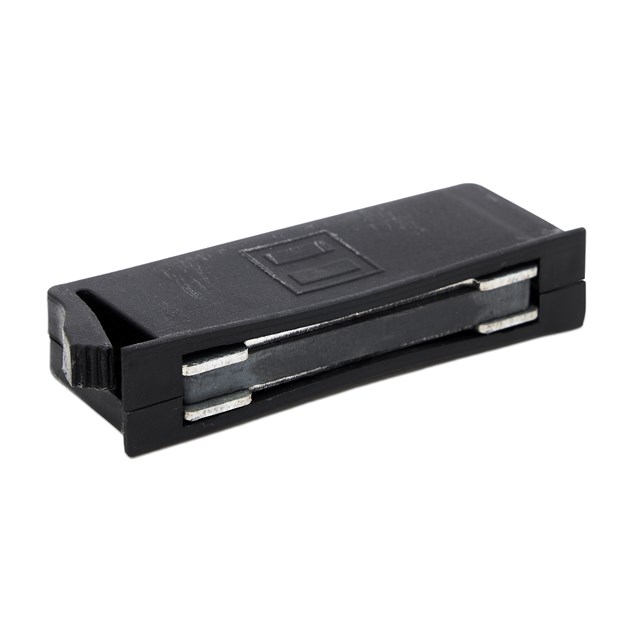

As standard, the hatch is equipped with a magnetic lock and as an accessory there is a key lock.
The hatch must be stored indoors.
