LKS-99623

New

LK Fitting Cabinet UNI 250x250

LK Fitting Cabinet is a compact coupling cabinet with space for four connections without group shut-off, and three with. The cabinet can also be used to connect an outdoor faucet to hot and cold water. The pipe...

Read more

LKS-99623

LK Fitting Cabinet UNI 250x250

  • Variants
  • Detailed Information
  • Documentation
  • Related Products

Variants

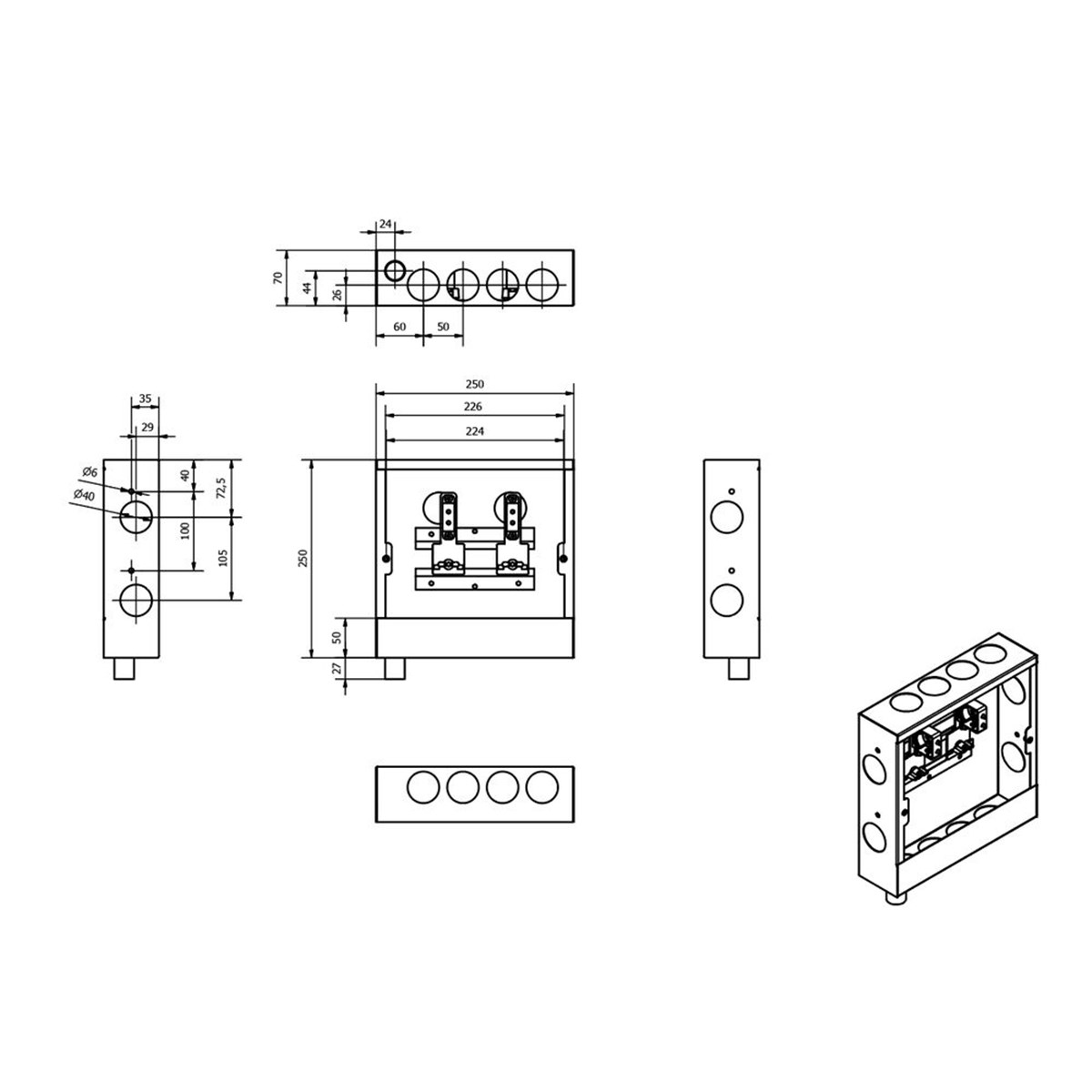

Article Width Height Depth Dims. hatch (W x H) Weight (kg) Packaging Item List
188 27 06 250 mm 250 mm 70 mm 280 x 280 mm 2,6

188 27 06

Width 250 mm
Height 250 mm
Depth 70 mm
Dims. hatch (W x H) 280 x 280 mm
Weight (kg) 2,6
Packaging
Item list

Detailed Information

Description

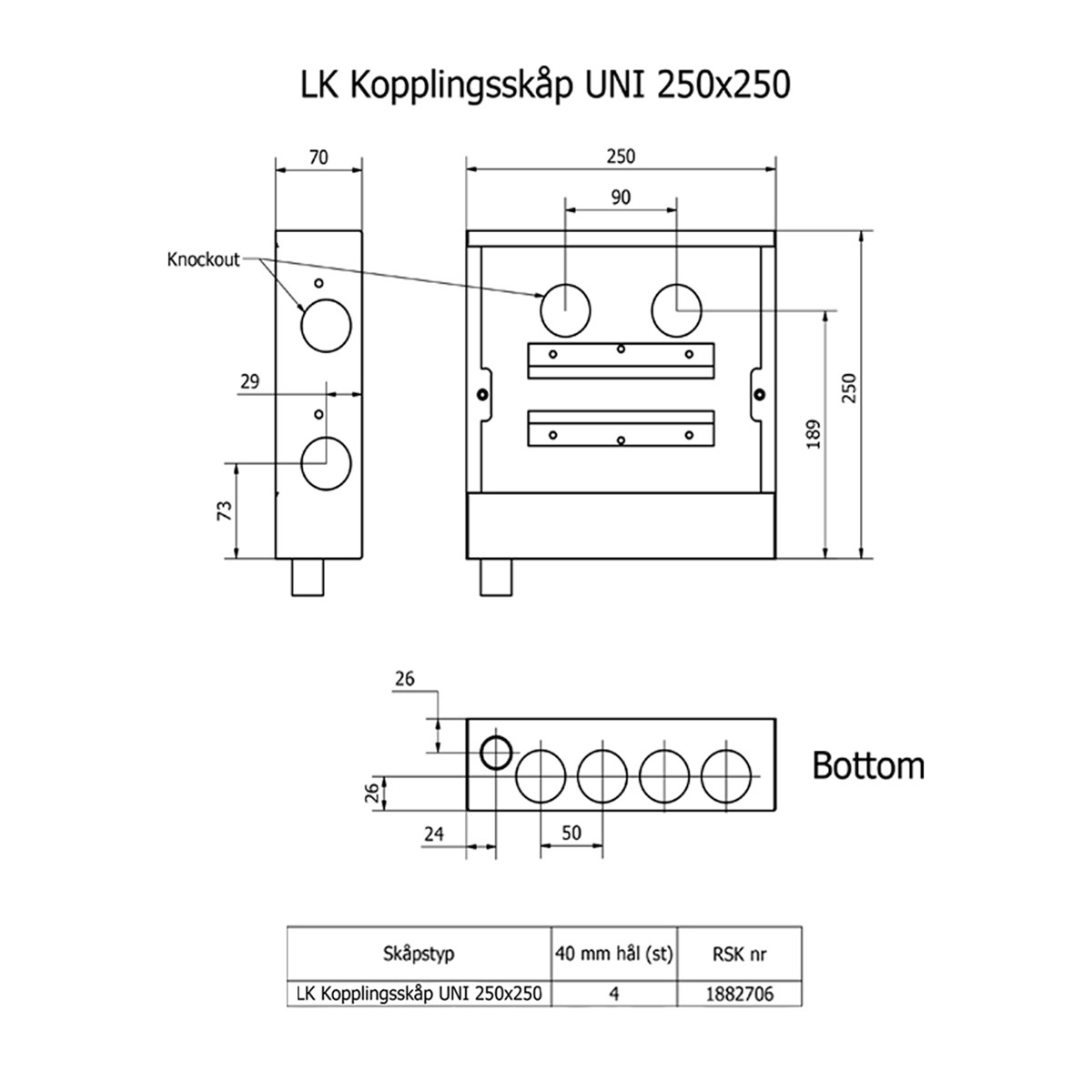

LK Fitting Cabinet is a compact coupling cabinet with space for four connections without group shut-off, and three with. The cabinet can also be used to connect an outdoor faucet to hot and cold water. The pipe for the outdoor faucet is passed through the back of the cabinet, where knock-out holes are provided with rubber bushings.
The cabinet is delivered with hatch manufactured from powder coated steel plate, RAL 9016 white.

The cabinet has a watertight base with a 50 mm-high front edge.

The cabinet is supplemented with the necessary pipe inlets, corresponding to the number of sockets used. NOTE: Separate article:
• LK Pipe Inlet 25 conduit, Article no. 187 44 83 is used for bushing in the cabinet with conduit dimension 25.
• LK Pipe Inlet UNI, Article no. 187 44 84 (cut to correct diameter) is used for bushing in the cabinet with conduit dimension 12-34.

Documentation

Product sheet

LK Fitting Cabinet UNI 250x250

Related Products

Accessories

LK Pipe inlet 32 PiP

LK Pipe inlet 32 PiP

Pipe inlet for LK Heating Pipe 32 mm PE-X and LK Universal pipe PAL 32 mm with 40-44 mm conduit. Pip...

LK Pipe Inlet UNI

LK Pipe Inlet UNI

Pipe inlet for LK PAL Universal pipe A 32 with conduit 40-44 mm. The pipe inlet fits LK Manifold Cab...

LK Rubber pipe grommet 8-20

LK Rubber pipe grommet 8-20

Fits all LK's floor heating and Universal cabinets with 40 mm holes for pipe grommet.

LK Rubber pipe grommet for feed pipe 12-34

LK Rubber pipe grommet for feed pipe 12-34

Pipe grommet for LK´s installation cabinets for inlet of feed pipe dim 12-34 mm. Pipe inlet dim. 40 ...

LK Pipe Inlet UNI

LK Pipe Inlet UNI

Used for LK Manifold Cabinet UNI when pulling a pipe dim. 20-34 through an inlet hole. Cut to the co...

LK Pipe Inlet 25 conduit

LK Pipe Inlet 25 conduit

Used for LK Manifold Cabinet UNI when pulling a conduit dim. 25 through an inlet hole. Pre-cut to 25...

LK Conduit umbrella

LK Conduit umbrella

To prevent a possible leakage between conduit pipe and water pipe.

LK Outlet Plate V2

LK Outlet Plate V2

Outlet plate to LK Drainage elbow, in white or chrome. Fits in LK Drainage elbow V2. Can also be mou...

Spare Parts

LK Hatch VUK

LK Hatch VUK

Spare part hatch LK Fitting Cabinet VUK art no 187 64 98.
